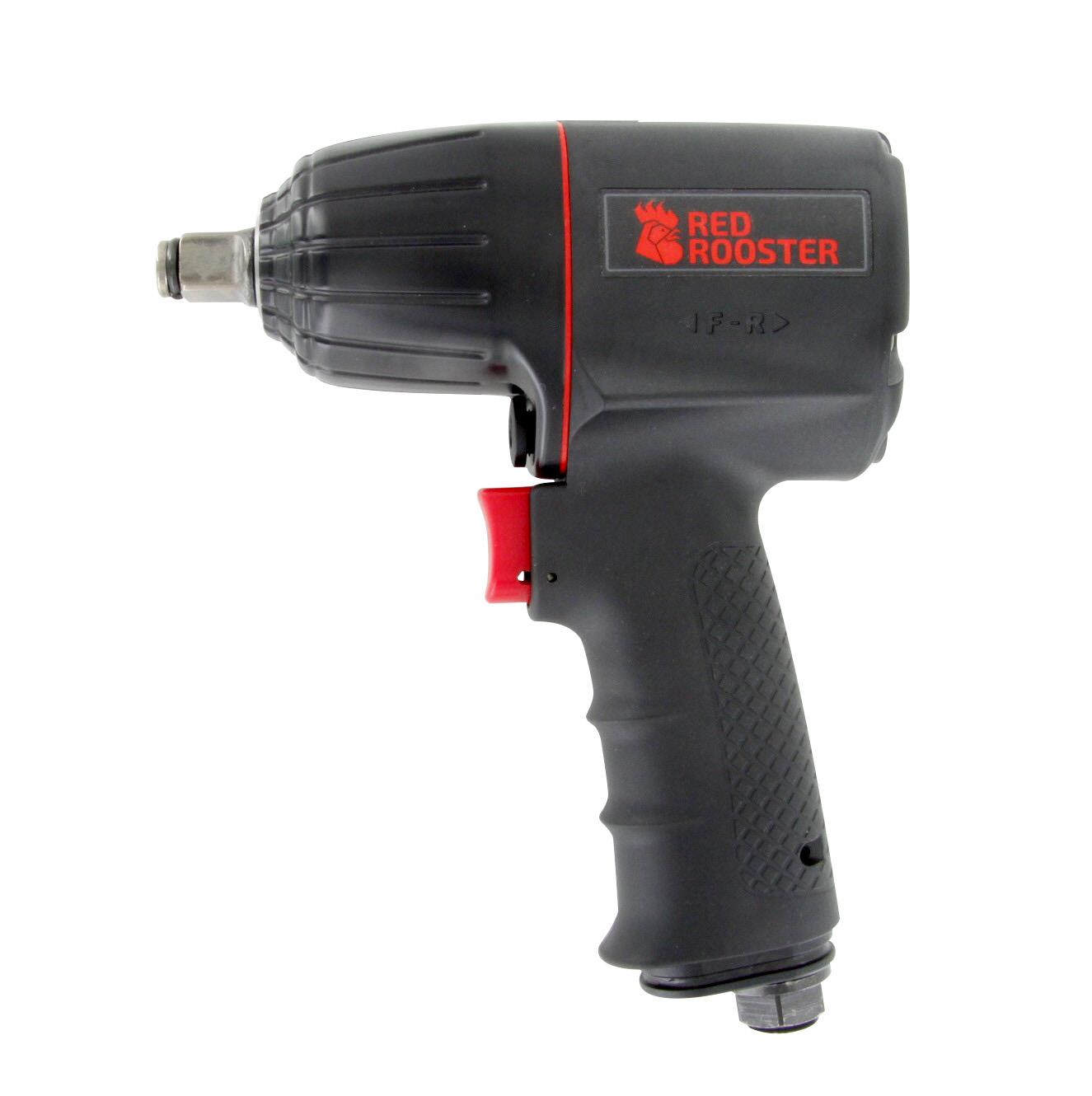

This composite impact wrench by RED ROOSTER has an excellent weight/power ratio. The RR-16N 1/2 is developed for assembly- and disassembly applications. The Twin Hammer impact mechanism gives high energy levels per impact en thus suitable for heavy duty applications. The energy is directly transmmitted to the anvil for maximum power and low maintenance. The tool is suitable for industrial use.
Characteristics:
• Ergonomic design, well balanced
• Compact and lightweight
• Impact mechanism Twin Hammer
• Power adjustable, 3 positions
• Exhaust silenced, through grip
Related products
DO605201003
Socketset 1/2" 10-Parts
DO605222601
Impact Socket Set 1/2"deep 26 parts
DO691121301
Impact Socket Set 1/2" & bits
AC30A-F03E-B
Modular FRL Unit
DO69523108
Socketset 1/2" deep 10-Parts
DO605202602
Impact Socket Set 1/2" - 26 parts
DO0012-0-286
Socketset 1/2" Lug Nut 7-Parts
DO652260701
Impact Socket Set 1/2" triple square
DO61120310
3 Pc1/2"Dr.Wheel Nut Deep Socket S
Related accessories
EH-43-4033SUB
Exhaust Hose Assembly 1/4"
ATLUB
Air Tool Oil, 1 litre
Specifications
| Brand | Red Rooster |
| Square Drive | 1/2" |
| Version | R |
| Bolt capacity (mm) | 14 |
| Impact mechanism | Twin-Hammer |
| RPM | 11.000 |
| Torque (Nm) | 480 |
| Force adjustment | R/L 3 Standen |
| Airconsumption (l/s) | 8,7 |
| Weight (kg) | 1,3 |
| Airconnection | PT 1/4" |
| Airpress max. (MPa) | 0,63 |
| mm A | 150 |
| mm B | 30 |
| Hosediameter (mm) | 6,5 |
| Safety standard | EN ISO 11148-6 |
| Max. breakaway torque (Nm) | 670 |
| Vibration standard | EN ISO 28927-2 |
| Vibration value (m/s²) | 3,9 |
| Vibration uncertainty (m/s²) | 2,16 |
| Sound standard | ISO 15744 |
| Sound pressure (dB(A)) | 91 |
| Sound power (dB(A)) | 102 |
| Sound uncertainty (dB(A)) | 3 |
| EAN | 8717981332472 |
