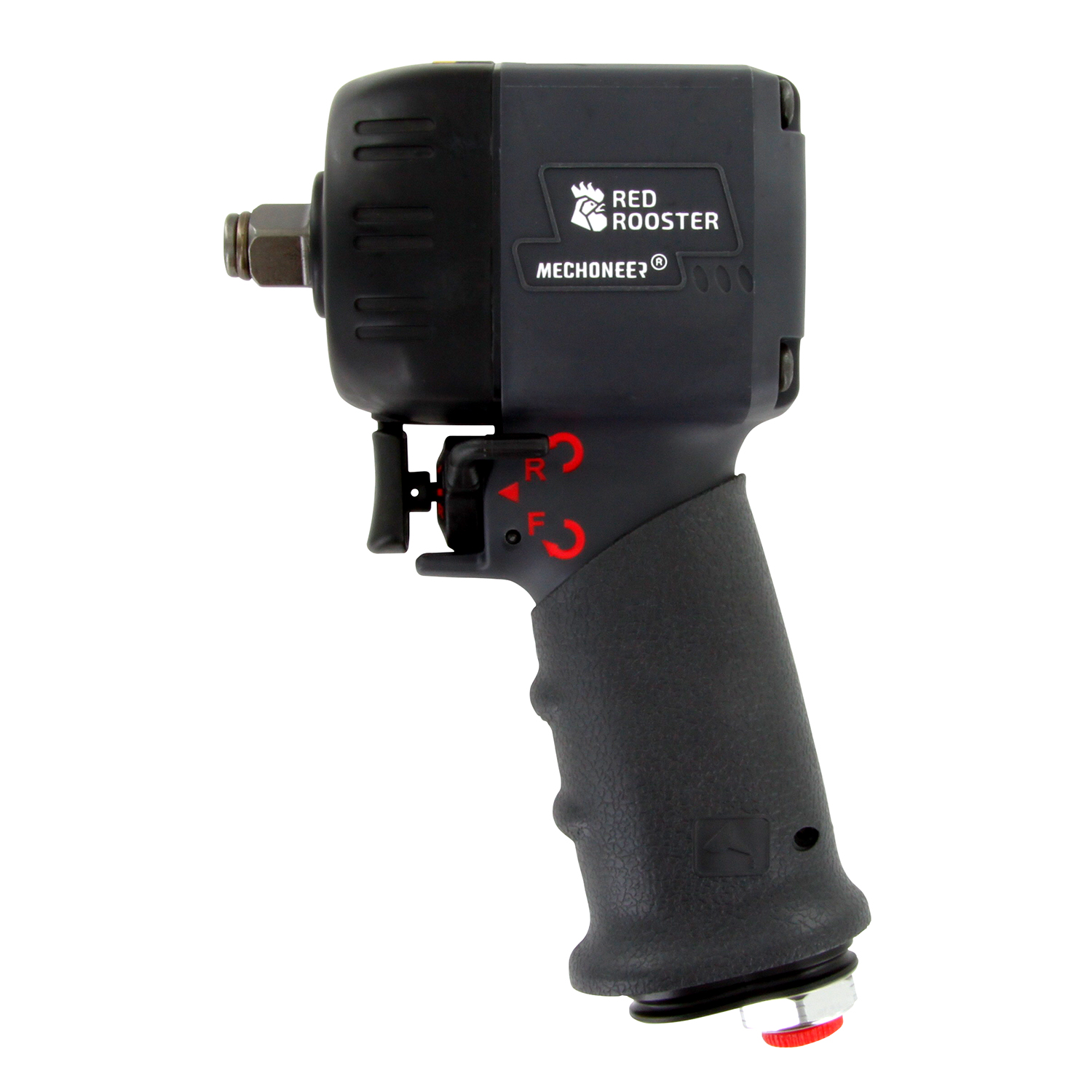

This stubby composite impact wrench by RED ROOSTER has an excellent weight/power ratio. The RRI-1400M is developed for assembly- and disassembly applications. The revolutionary Mechoneer impact mechanism gives high energy levels per impact. The Mechoneer impact mechanism combines the hitting strength of a Twin Hammer with the durability advantage of the closed hammer mechanism. On top of that, it is greased fully, which results in low vibration levels and low sound pressure. The tool is suitable for industrial use.
Breakloose torque: 1.200 Nm.
Characteristics:
• Ergonomic design, well balanced
• Compact and lightweight
• Mechoneer Impact mechanism
• Power adjustable, 2 positions forward
• Exhaust silenced, through grip
• Forward/Reverse lever on trigger, for one-hand operation
• 2-Step trigger for controlled rundown
Related products
DO691121301
Impact Socket Set 1/2" & bits
DO0012-0-000S
Socketset 1/2" 10-Parts
AC30A-F03E-B
Modular FRL Unit
DO69523108
Socketset 1/2" deep 10-Parts
DO605202602
Impact Socket Set 1/2" - 26 parts
DO652260701
Impact Socket Set 1/2" triple square
Related accessories
ATLUB
Air Tool Oil, 1 litre
Specifications
Brand | Red Rooster Industrial |
Square Drive | 1/2" |
Version | R |
Bolt capacity (mm) | 14 |
Impact mechanism | Mechoneer |
RPM | 9000 |
Torque (Nm) | 470 |
Force adjustment | R 2 Pos |
Airconsumption (l/s) | 8,5 |
Weight (kg) | 1,3 |
Airconnection | PT 1/4" |

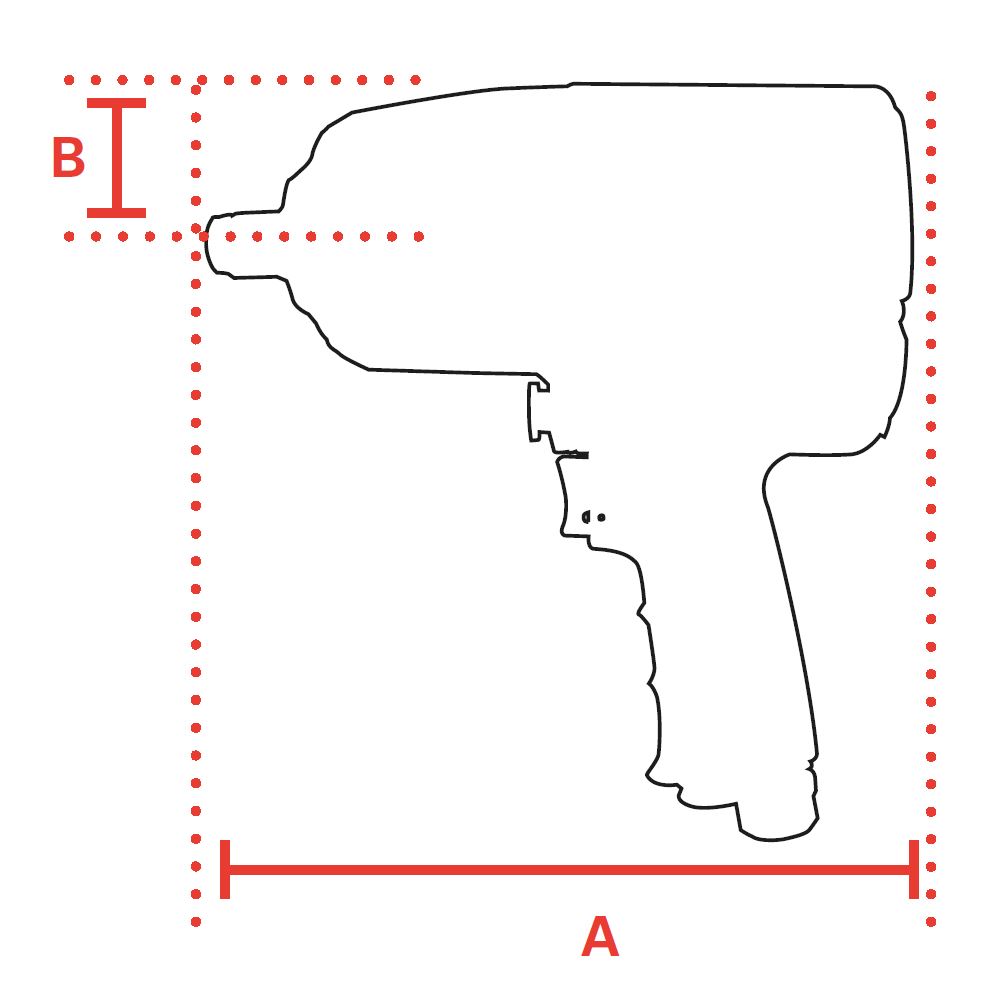

mm A | 120 |
mm B | 35 |
Hosediameter (mm) | 6,5 |
Maximum Airpressure (Bar) | 6,3 |
Safety standard | EN ISO 11148-6 |
Max. breakaway torque (Nm) | 1200 |
Vibration standard | EN ISO 28927-2 |
Vibration value (m/s²) | 4,5 |
Vibration uncertainty (m/s²) | 0,94 |
Sound standard | ISO 15744 |
Sound pressure (dB(A)) | 87 |
Sound power (dB(A)) | 98 |
Sound uncertainty (dB(A)) | 3 |
EAN | 8717981400782 |
