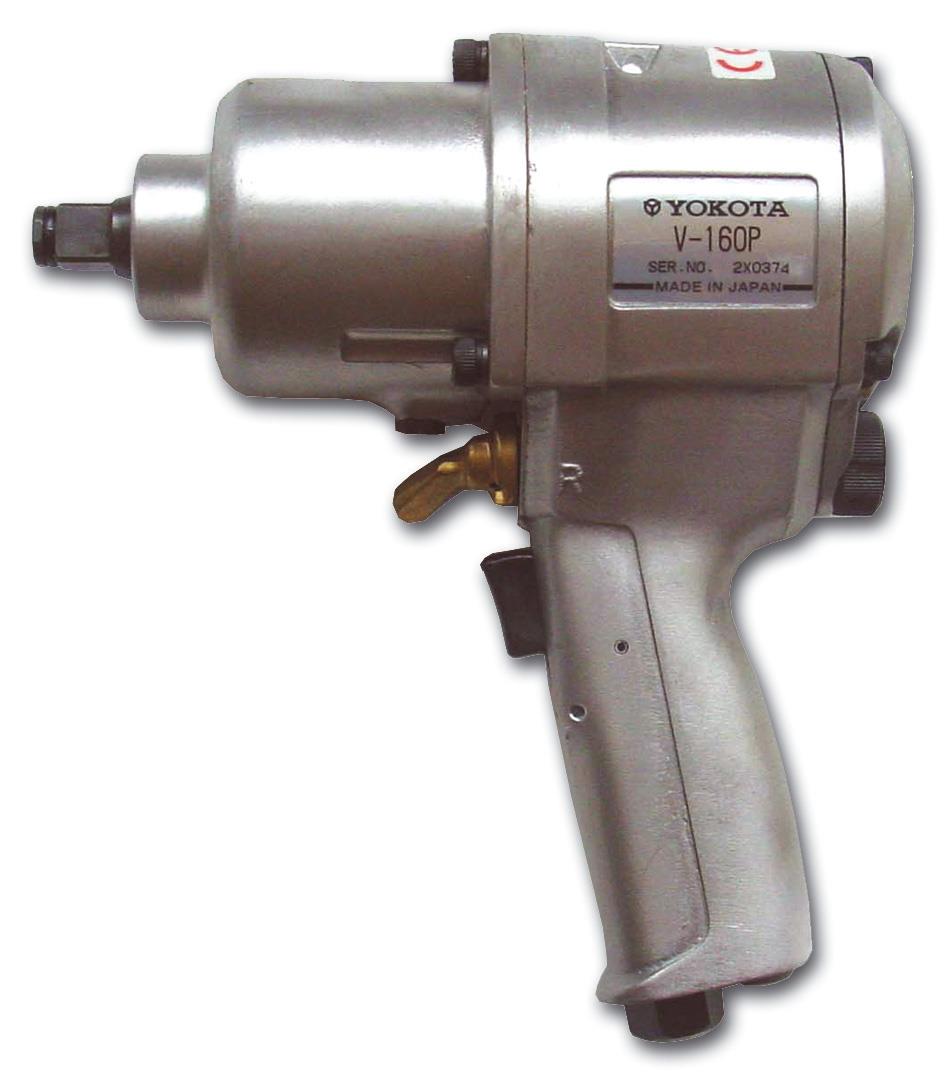

This YOKOTA Impact Wrench has an excellent weigth/power ratio. The V-160P is developed for assembly- and disassembly purposes. The one-hammer impactmechanism has a high energy level at each impact and thus suitable for heavy duty application. The energy is brought directly to the drive shaft for maximum power and minimal maintenance. This tool is suitable for industrial use, and offers very good durability.

Characteristics:
- Ergonomic design, well balanced
- Compact and durable
- Clutch: Rocking Dog
- Adjustable power, 4 positions
- Exhaust through grip, with silencer

Related products

DO605201003

Impact Socket Set 1/2" 10-parts

DO605222601

Impact Socket Set 1/2"deep 26-parts

DO691121301

Impact Socket Set 1/2" & bits 13-parts

DO69523108

Impact Socket Set 1/2" deep 10-parts

DO605202602

Impact Socket Set 1/2" 26-parts

DO652260701

Impact Socket Set 1/2" triple square



Related accessories

ATLUB

Air Tool Oil, 1 litre

Exploded view

Datasheet

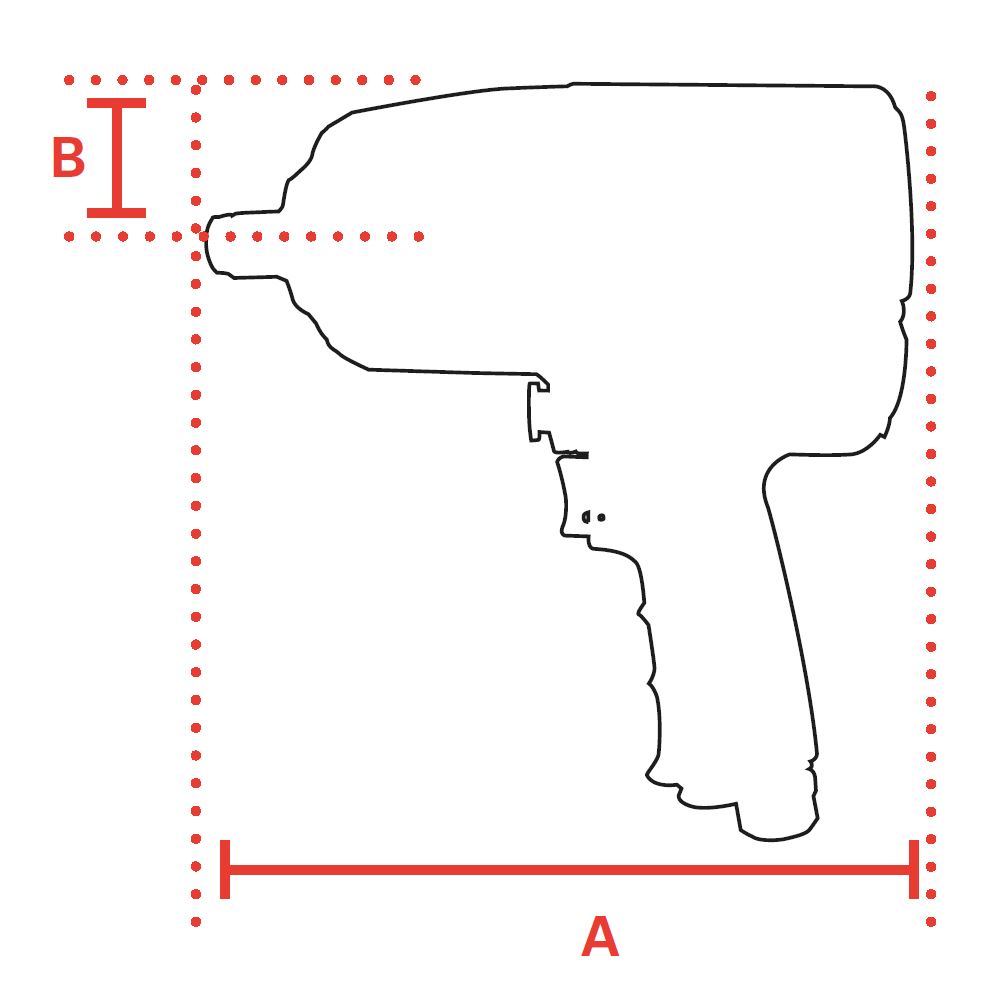

Dimensions



Specifications

Brand Yokota
Square Drive 1/2"
Version R
Bolt capacity (mm) 16
Impact mechanism 1-Hammer
RPM 6500
Torque (Nm) 940
Force adjustment R/L 4 Standen
Airconsumption (l/s) 12,6
Weight (kg) 2,8
Airconnection PT 1/4"
Airpress max. (MPa) 0,63
mm A 182
mm B 34
Hosediameter (mm) 10
Safety standard EN ISO 11148-6
Max. breakaway torque (Nm) 1900
Vibration standard EN ISO 28927-2
Vibration value (m/s²) 7,8
Vibration uncertainty (m/s²) 1
Sound standard ISO 15744
Sound pressure (dB(A)) 95
Sound power (dB(A)) 106
EAN 8717981127276
