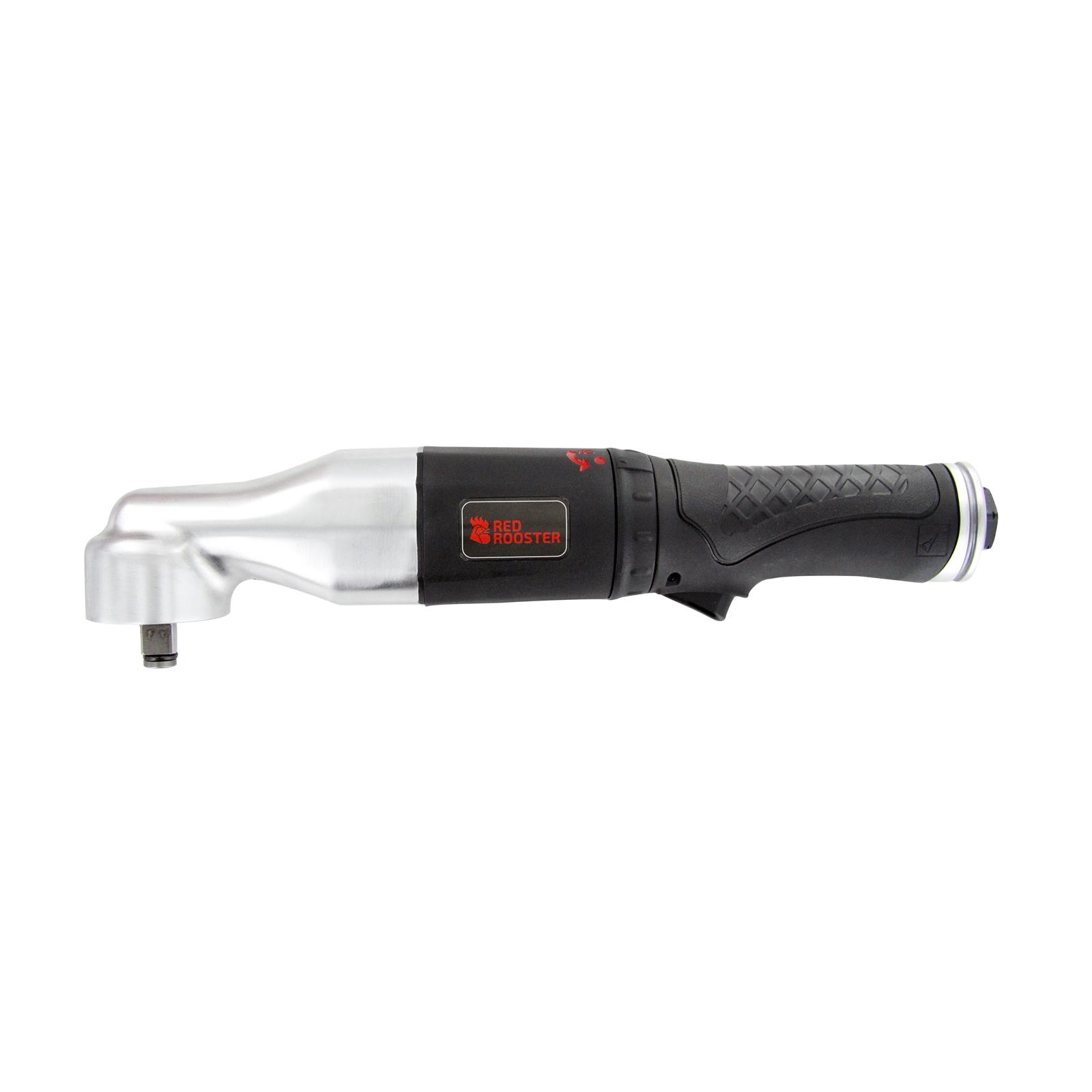

This RED ROOSTER angle impact wrench is very compact and has an excellent weight/power ratio. The RR-15A is developed for assembly and disassembly applications. The Jumbo impact mechanisme generates a high energy levels per blow with minimal vibration. The two-step trigger allows you to slow start. The very compact body of the RR-15A makes the tool very suitable for working in tight spaces.
Characteristics:
• Ergonomic design, great balance
• Compact and lightweight
• Jumbo impact mechanism
• Two-step trigger
• Power right adjustable, 2 positions
• Exhaust silenced, through grip

Related products

DO605222601

Impact Socket Set 1/2"deep 26-parts

DO691121301

Impact Socket Set 1/2" & bits 13-parts

DO69523108

Impact Socket Set 1/2" deep 10-parts

DO605202602

Impact Socket Set 1/2" 26-parts

DO652260701

Impact Socket Set 1/2" triple square



Related accessories

ATLUB

Air Tool Oil, 1 litre

Exploded view

Datasheet

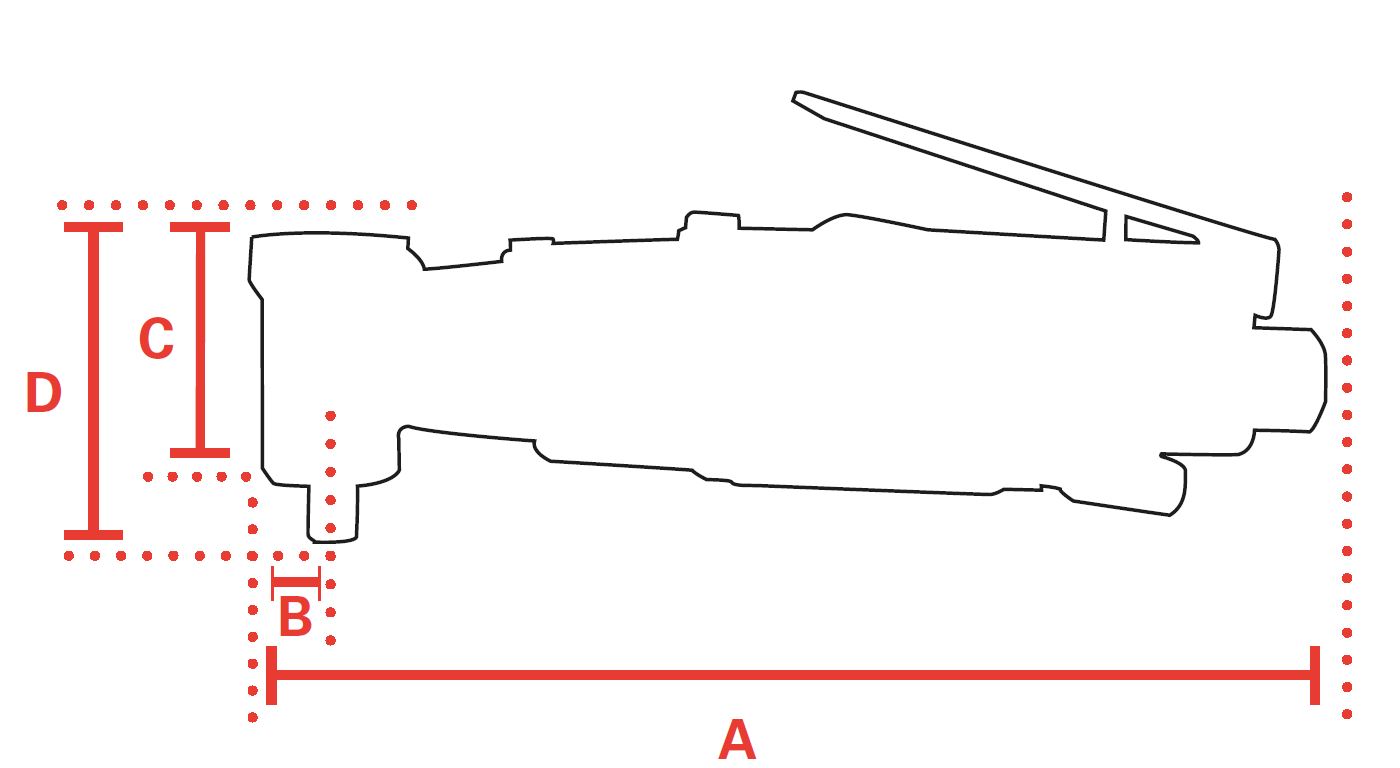

Dimensions



Specifications

Brand Red Rooster
Square Drive 1/2"
Version R
Bolt capacity (mm) 14
Impact mechanism Jumbo-hammer
RPM 7000
Torque (Nm) 310
Force adjustment R 2
Airconsumption (l/s) 7,1
Weight (kg) 1,8
Airconnection PT 1/4"
Airpress max. (MPa) 0,63
mm A 340
mm B 32
mm C 67
Hosediameter (mm) 9,5
Safety standard EN ISO 11148-6
Max. breakaway torque (Nm) 500
Vibration standard EN ISO 28927-2
Vibration value (m/s²) 43,5
Vibration uncertainty (m/s²) 4,8
Sound standard ISO 15744
Sound pressure (dB(A)) 97
Sound power (dB(A)) 108
Sound uncertainty (dB(A)) 3
EAN 8717981361809
