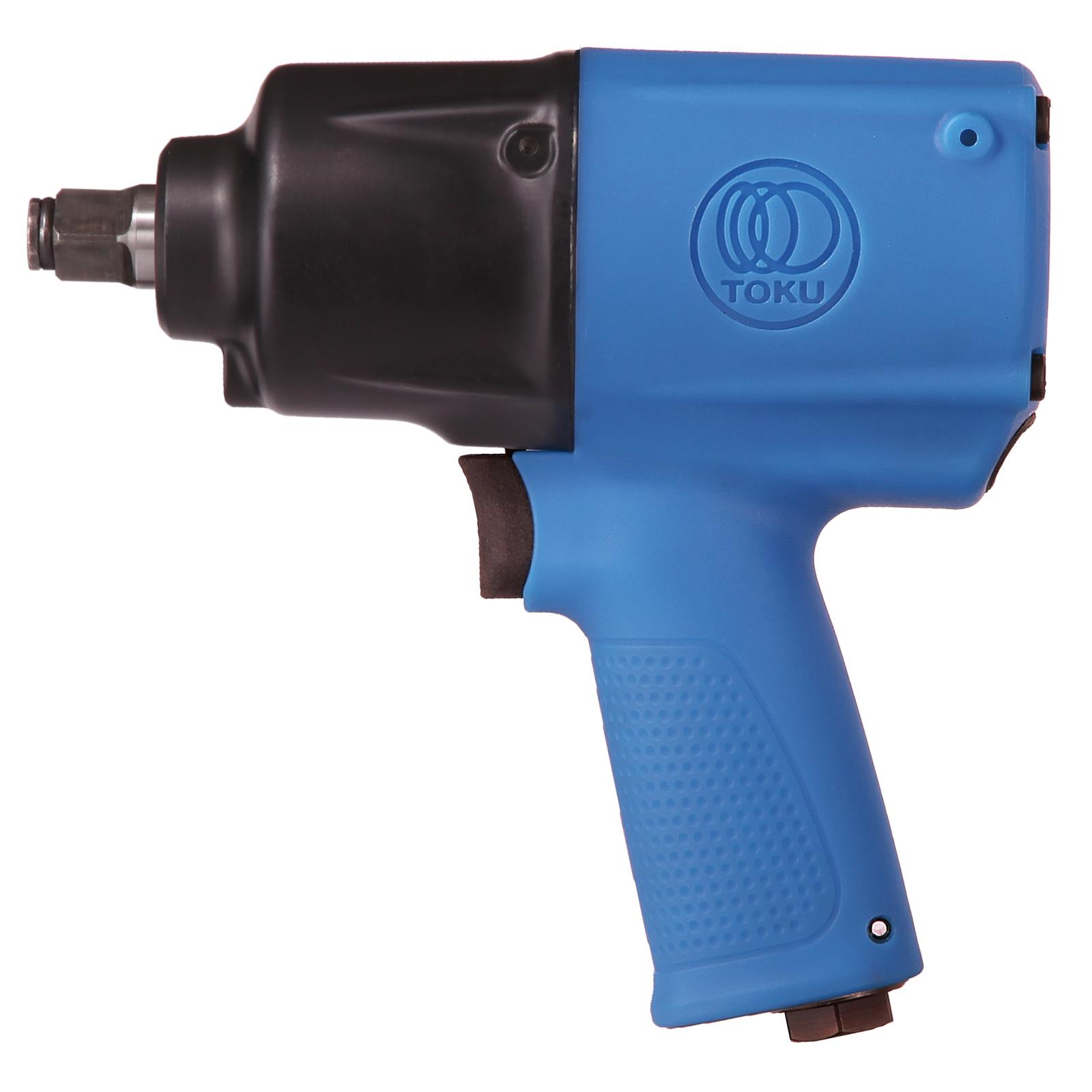

This TOKU composite impact wrench has an excellent weigth/power ratio. The MI-17C is developed for assembly- and disassembly purposes. The Twin Hammer impactmechanism has a high energy level at each impact and thus suitable for heavy duty application. The energy is brought directly to the drive shaft for maximum power and minimal maintenance. This tool is suitable for industrial use.
Breakloose torque: 1.600 Nm.
Characteristics:
• Ergonomic design, well balanced
• Compact and lightweight
• Clutch: Twin Hammer
• Adjustable power, 3 positions.
Related products
DO605222601
Impact Socket Set 1/2"deep 26 parts
DO691121301
Impact Socket Set 1/2" & bits
DO0012-0-000S
Socketset 1/2" 10-Parts
AC30A-F03E-B
Modular FRL Unit
DO69523108
Socketset 1/2" deep 10-Parts
DO605202602
Impact Socket Set 1/2" - 26 parts
DO652260701
Impact Socket Set 1/2" triple square
Related accessories
13-08-09-054
Hanger
ATLUB
Air Tool Oil, 1 litre
Specifications
| Brand | Toku |
| Square Drive | 1/2" |
| Version | R |
| Bolt capacity (mm) | 16 |
| Impact mechanism | Twin-Hammer |
| RPM | 8800 |
| Torque (Nm) | 815 |
| Force adjustment | R 3 / L 2 |
| Airconsumption (l/s) | 13,3 |
| Weight (kg) | 1,84 |
| Airconnection | PT 1/4" |
| Airpress max. (MPa) | 0,63 |

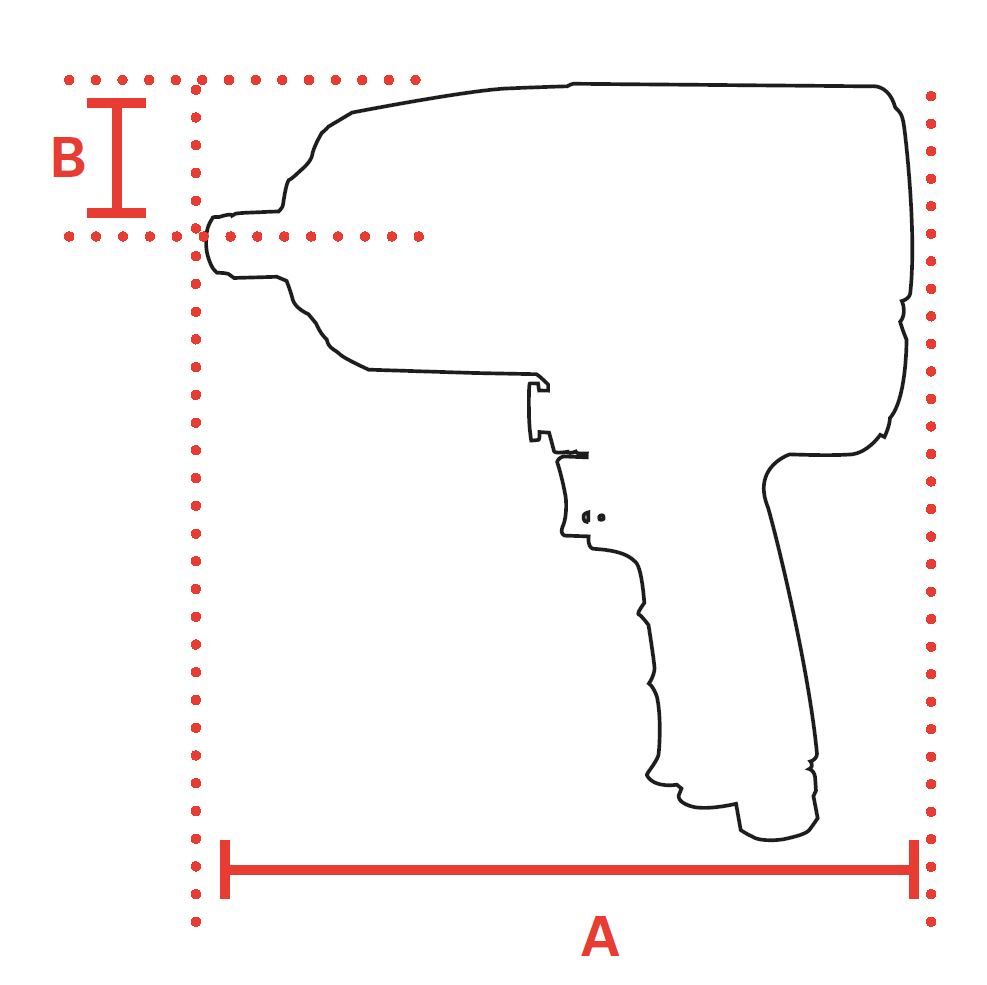

| mm A | 181 |
| mm B | 31 |
| Hosediameter (mm) | 10 |
| Safety standard | EN ISO 11148-6 |
| Max. breakaway torque (Nm) | 1600 |
| Vibration standard | EN ISO 28927-2 |
| Vibration value (m/s²) | 5,7 |
| Vibration uncertainty (m/s²) | 1,06 |
| Sound standard | ISO 15744 |
| Sound pressure (dB(A)) | 93 |
| Sound power (dB(A)) | 104 |
| Sound uncertainty (dB(A)) | 3 |
| EAN | 8717981369522 |
