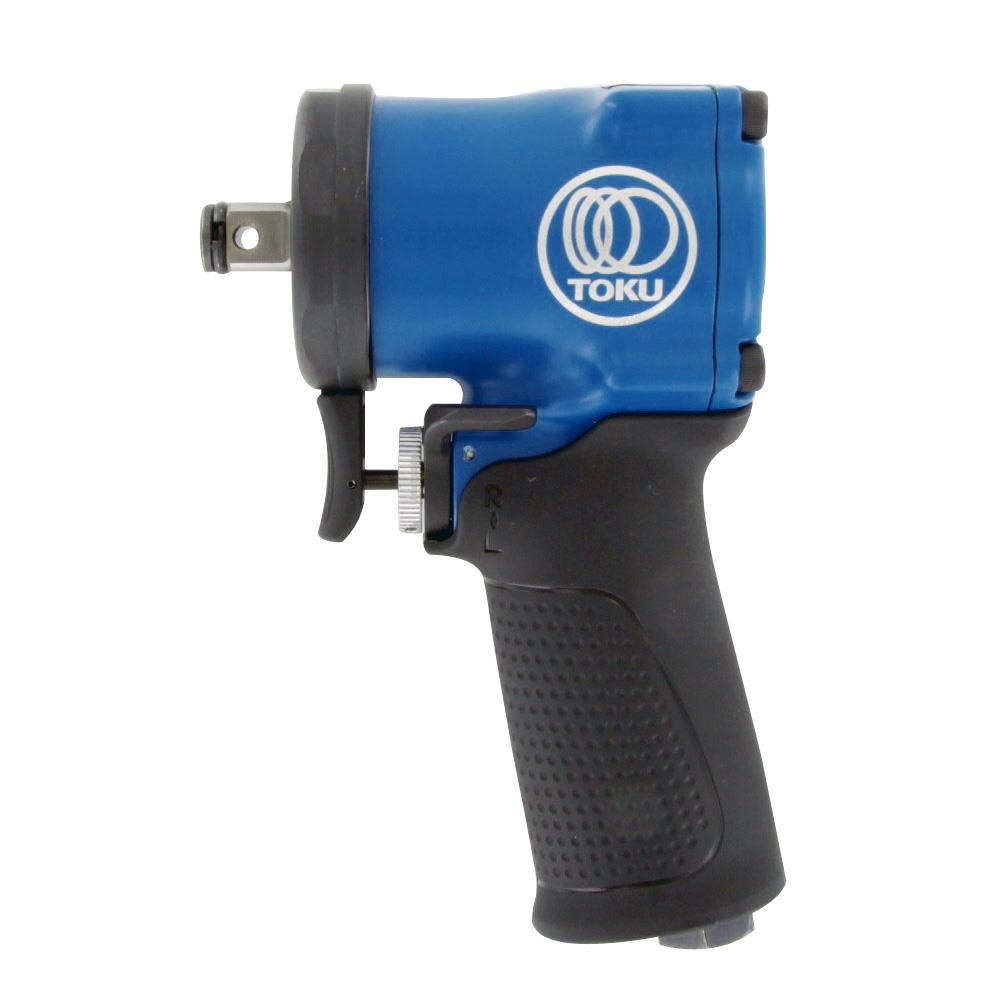

TOKU's stubby impact wrench has an excellent weight/power ratio.
The very compact body of the MI-14S makes the tool very suitable for working in tight spaces. This tool is suitable for industrial use. With only 1.15 kg this little powerhouse will make your day!
Related products
DO691121301
Impact Socket Set 1/2" & bits
DO0012-0-000S
Socketset 1/2" 10-Parts
AC30A-F03E-B
Modular FRL Unit
DO69523108
Socketset 1/2" deep 10-Parts
DO605202602
Impact Socket Set 1/2" - 26 parts
DO652260701
Impact Socket Set 1/2" triple square
Related accessories
ATLUB
Air Tool Oil, 1 litre
Specifications
| Brand | Toku |
| Square Drive | 1/2" |
| Version | R+H |
| Bolt capacity (mm) | 16 |
| Impact mechanism | Twin-Hammer |
| RPM | 11.700 |
| Torque (Nm) | 390 |
| Force adjustment | R/L 4 standen |
| Airconsumption (l/s) | 6 |
| Weight (kg) | 1,15 |
| Airconnection | PT 1/4" |
| Airpress max. (MPa) | 0,63 |
| mm A | 100 |
| mm B | 30 |
| Hosediameter (mm) | 10 |
| Safety standard | EN ISO 11148-6 |
| Max. breakaway torque (Nm) | 570 |
| Vibration standard | EN ISO 28927-2 |
| Vibration value (m/s²) | 8,0 |
| Vibration uncertainty (m/s²) | 1,29 |
| Sound standard | ISO 15744 |
| Sound pressure (dB(A)) | 88 |
| Sound power (dB(A)) | 99 |
| Sound uncertainty (dB(A)) | 3 |
| EAN | 8717981381067 |
