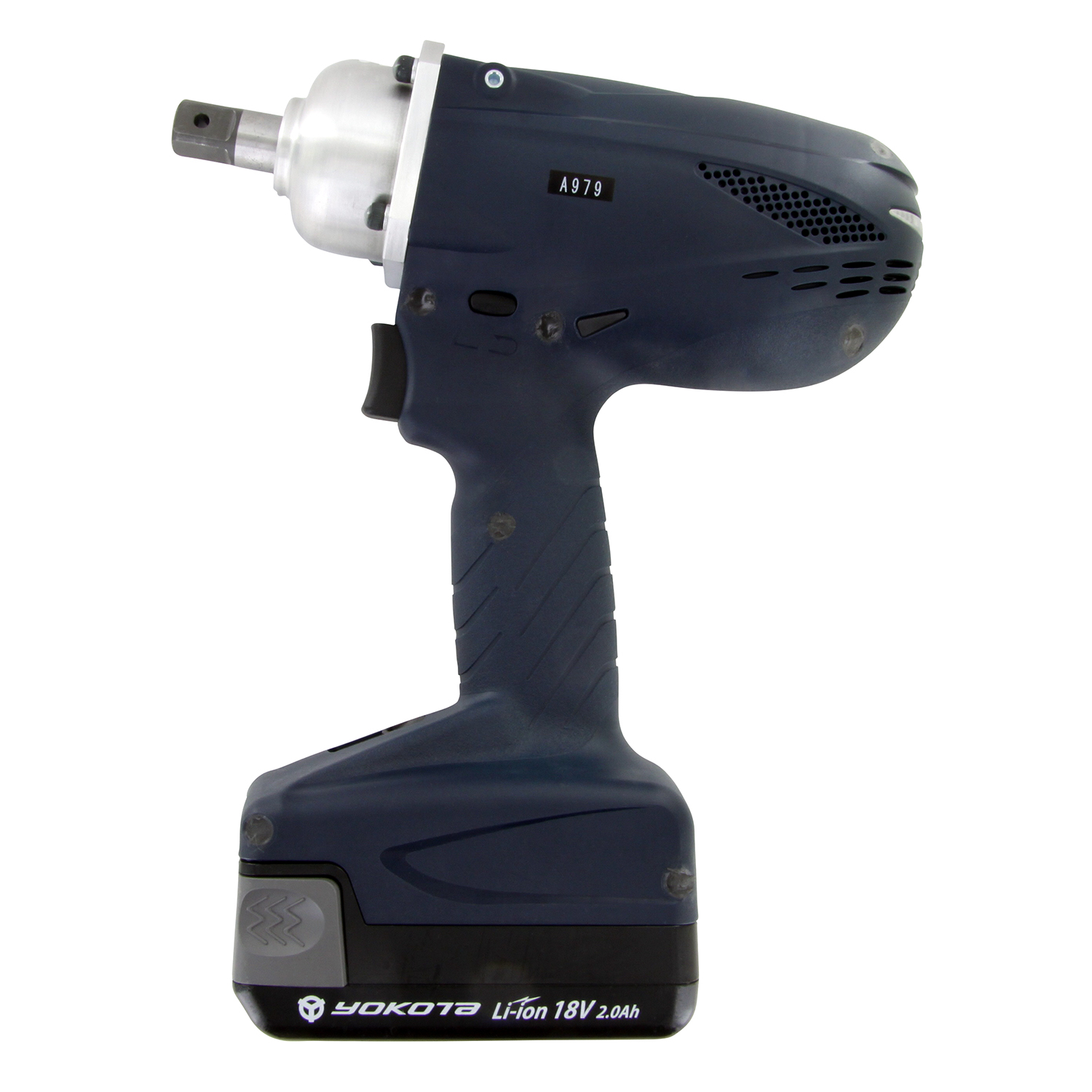

YOKOTA YZ-T battery impulse wrenches with shut-off are powerful, very accurate and most important, have no kick-back. The very compact design offers great accessibility to the joint. Tightening bolts with torque levels up to 80 Nm with very high speed and remarkably low reaction forces. Adjusting the tool settings for the specific bolted joint is done by Programming Console PC-2F and cable CC-1.
Auditory and visual feedback on the result of the screwing process.
Characteristics:
• With built-in retention in the square drive
• No kickback
• High speed fastening
• Hybrid technology
• DC drive brushless motor
Delivered including 1 battery but without charger.
Related accessories
61022-TH005
Tool Holder
0446-0029-00-01
Rubber protection cover Battery
CC-1
Cable between YZ-T <-> PC-2-F
Specifications
| Brand | Yokota |
| Square Drive | 1/2" |
| Bolt capacity (mm) | 10-12 |
| RPM | 1200 ~ 3000 |
| Torque (Nm) | 60 ~ 80 |
| Weight w/o battery (kg) | 1,84 |

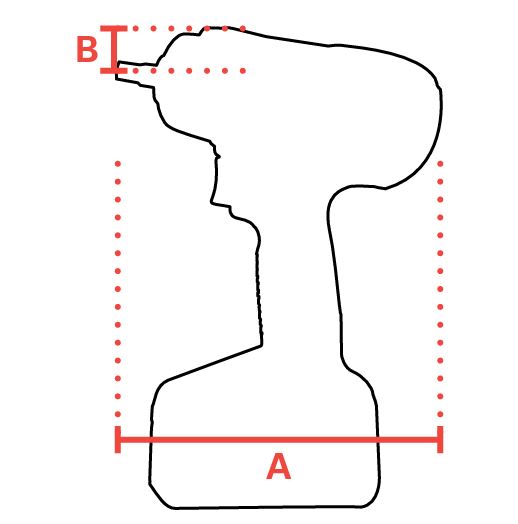

| mm A | 241 |
| mm B | 34 |
| Battery voltage (Volt) | 18 |
| Battery type Li-ion….(Ah) | 2,0 |
| Safety standard | EN ISO 11148-6 |
| Vibration standard | EN ISO 28927-2 |
| Vibration value (m/s²) | <2,5 |
| Vibration uncertainty (m/s²) | 1 |
| Sound standard | ISO 15744 |
| Sound pressure (dB(A)) | 79 |
| Sound uncertainty (dB(A)) | 3 |
| EAN | 8717981439492 |
