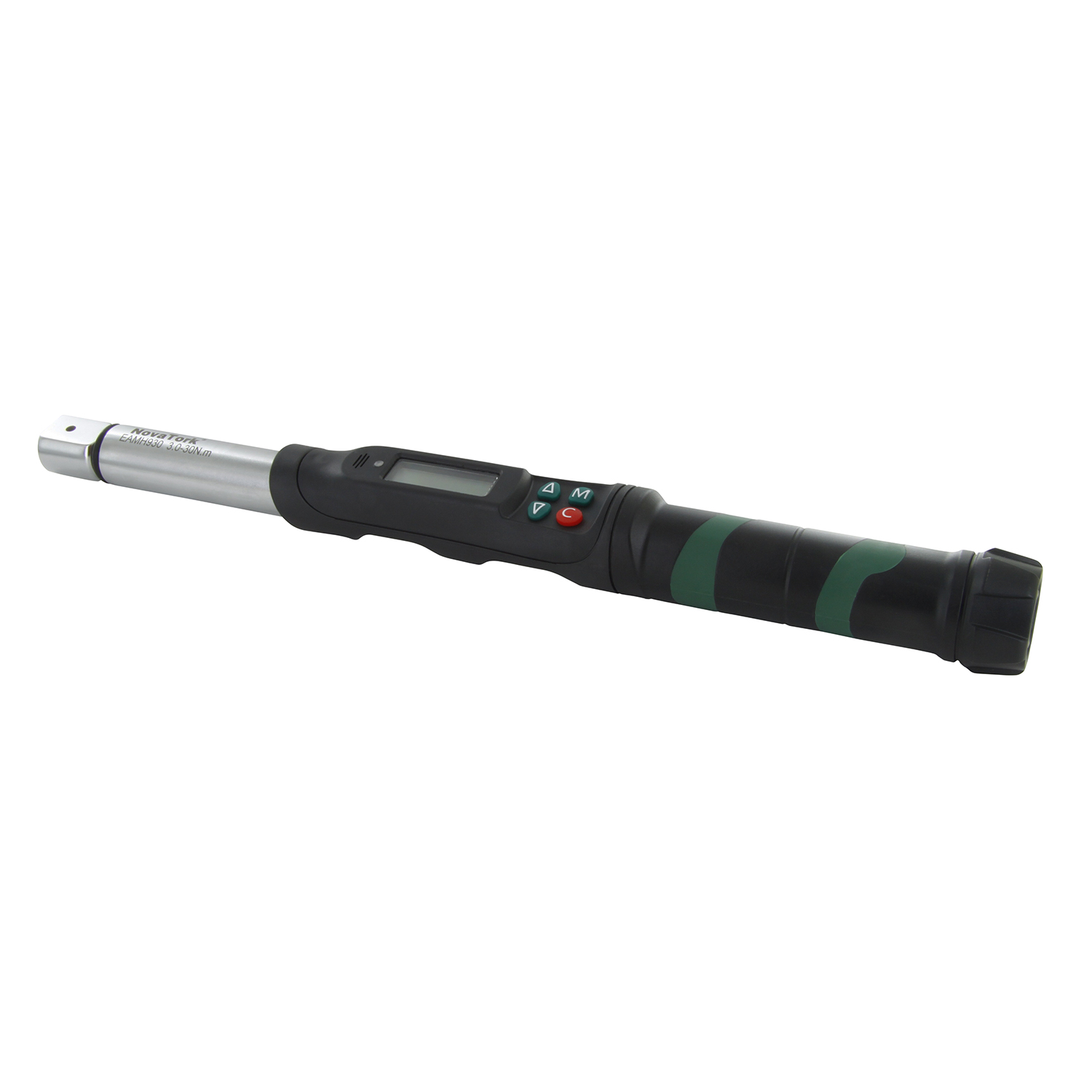

EAM Series Multifunctional Electronic Angle Torque Wrench
• Accuracy:
- Torque: CW±2%, CCW±3% from 10% to 100% of capacity;
- Angle: ( ±1% of reading) + ( ±1° @ angular speed of 10°/s~180°/s) +( ±1° of test fixture)
• Angle Function
Specially developed by a team of expert scientists
- High-precision gyroscope angle chip
- Sensitive recognition of any plane and any angle
- Can preset the target angle value
- Sound and light alarm function when reaching the target value
• Digital Display and functions
- The reading is intuitive and clear, with high resolution
- Torque error% display function
- Angle difference display in angle mode
- Back light for dark working condition
- Can store 1000 data sets, retrievable by micro-USB connector
• Hand grip in engineering plastic, oil resistant and non-slip resistant, durable



Related accessories

QH910

End fitting 9x12, Ring End A/F 10mm

DH92160

End fitting 9x12 Ratchet 3/8

OH980

End fitting 9x12, Open End 80 mm

QOH932

9x12 Open Ring End 32mm

OH950A15

End fitting 9x12, Open End 50 mm an

QH932

End fitting 9x12, Ring End A/F 32mm

OH910A15

End fitting 9x12, Open End 10 mm an

DH93160

End fitting 9x12 Ratchet 1/2

QOH913

9x12 Open Ring End 13mm

OH96

End fitting 9x12, Open End 6 mm

Datasheet



Specifications

Brand NovaTork
Torque (Nm) 10 ~ 100
Weight (kg) 0,93
insert tool (mm) 9x12
mm B 24
L mm 453
EAN 8717981428014
