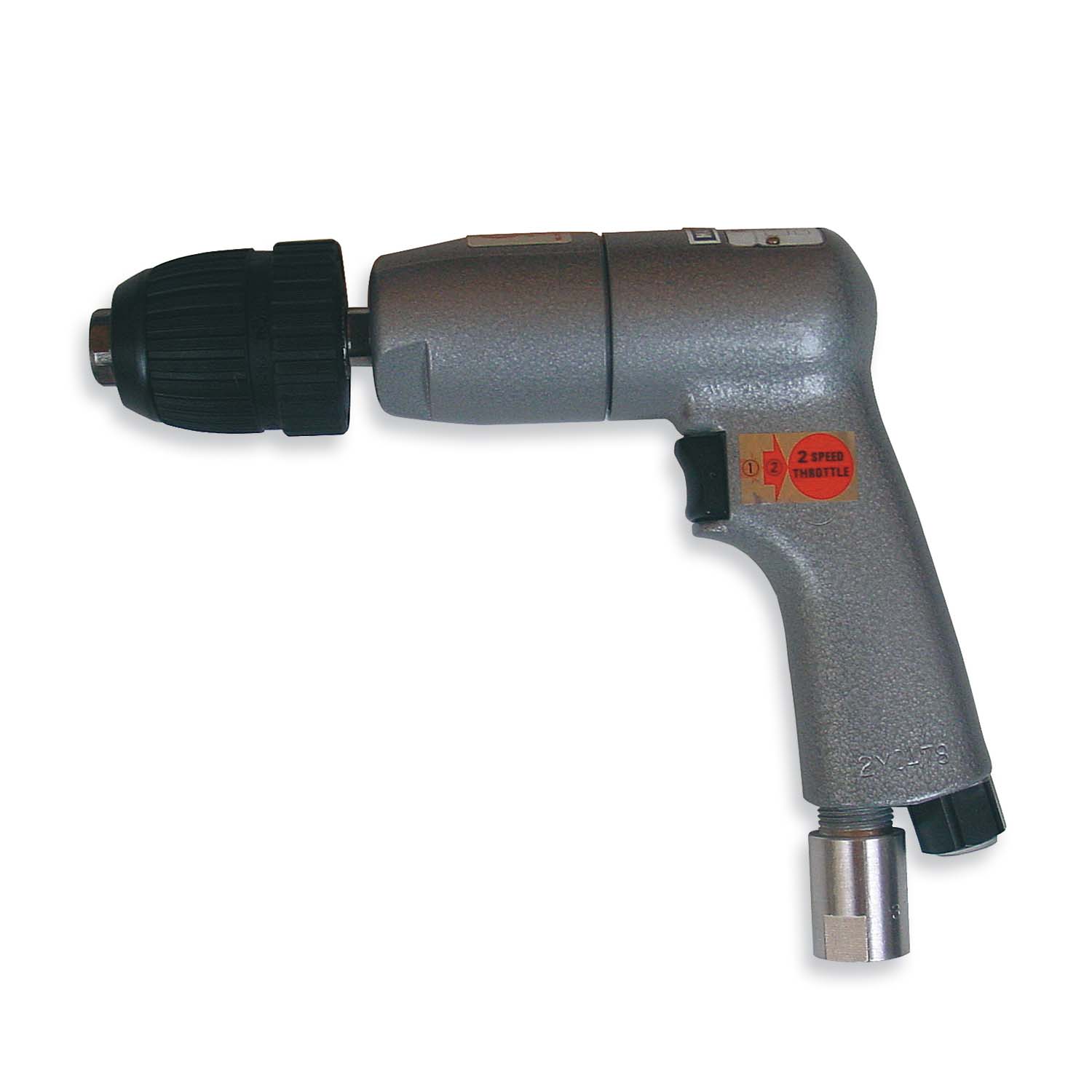

This Yokota drill is suitable for industrial applications. The two-step trigger allows easy setting of the drill tip at first stage, and afterward high rpm for maximum drilling-speed.
Characteristics:
* Compact and lightweight
* Low vibrationlevel
* Exhaust through grip, with silencer
* Ergonomic design
* Includes 10 mm key-less drill chuck
Related accessories
ATLUB
Air Tool Oil, 1 litre
Specifications
| Brand | Yokota |
| RPM | 2800 |
| Airconsumption (l/s) | 8,3 |
| Weight (kg) | 0,90 |
| Drill chuck | 3/8" x 24UNF |
| Capacity steel (mm) | 6 - 8 |
| Direction | R |
| Airconnection | PT 1/4" |
| Airpress max. (MPa) | 0,63 |

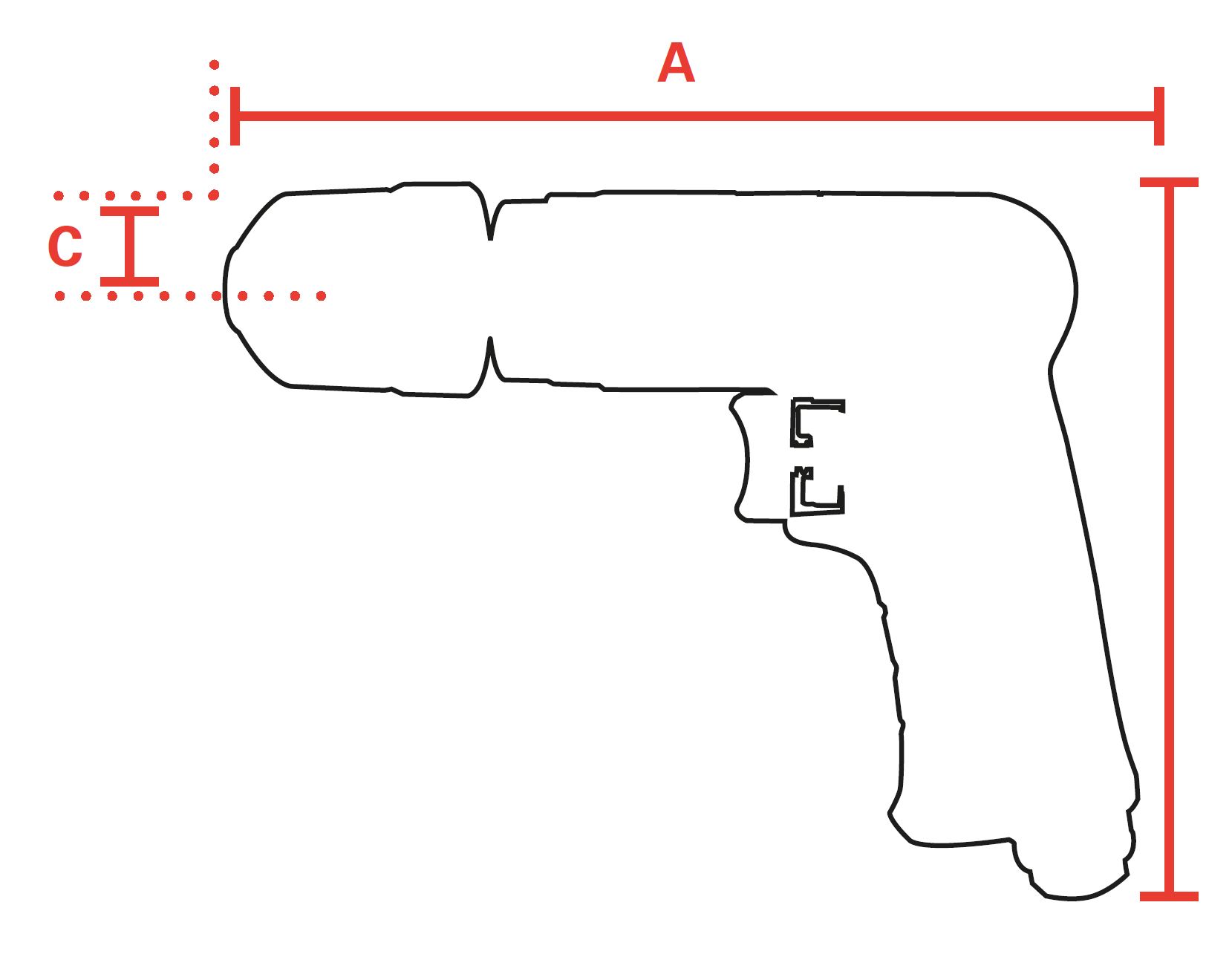

| mm A | 151 |
| mm B | 140 |
| mm C | 21 |
| Hosediameter (mm) | 10 |
| Power (kW) | 0,33 |
| Safety standard | EN ISO 11148-3 |
| Vibration standard | EN ISO 28927-5 |
| Vibration value (m/s²) | < 2,5 |
| Vibration uncertainty (m/s²) | 1 |
| Sound standard | ISO 15744 |
| Sound pressure (dB(A)) | 77 |
| Sound uncertainty (dB(A)) | 3 |
| EAN | 8717981000678 |
