YOKOTA YZ-T battery impulse wrenches with shut-off are powerful, very accurate and most important, have no kick-back. The very compact design offers great accessibility to the joint. Tightening bolts with torque levels up to 50 Nm with very high speed and remarkably low reaction forces. Adjusting the tool settings for the specific bolted joint is done by Programming Console PC-2F and cable CC-1.
Auditory and visual feedback on the result of the screwing process.
Characteristics:
• With built-in retention in the square drive
• No kickback
• High speed fastening
• Hybrid technology
• DC drive brushless motor
Delivered inclusive battery but without charger.
Related accessories

0446-1801-00-00
Hanger clip YOKOTA cordless wrench

0446-0017-00-00
Hanger YOKOTA

0460-0029-00-00
Protector YZ-T900

61022-TH005
Tool Holder

0446-0029-00-01
Rubber protection cover Battery

PC-2-F
Programming console w/o cable
Specifications
Brand | Yokota |
Square Drive | 3/8" |
Bolt capacity (mm) | 8 - 10 |
RPM | 1200 - 4800 |
Torque (Nm) | 30 ~ 50 |
Weight w/o battery (kg) | 1,2 |

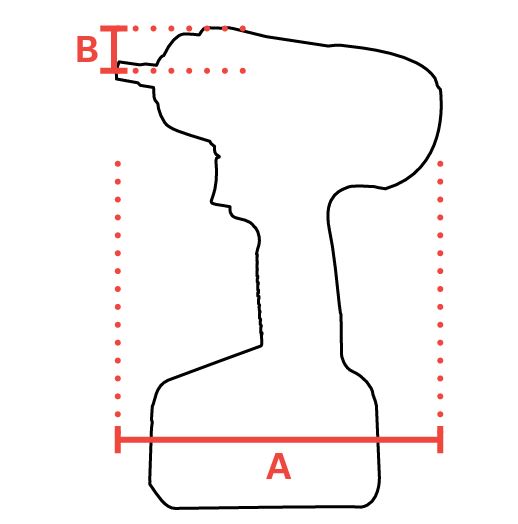

mm A | 173 |
mm B | 29,5 |
Battery voltage (Volt) | 18 |
Battery type Li-ion….(Ah) | 2,0 |
Safety standard | EN ISO 11148-6 |
Vibration standard | EN ISO 28927-2 |
Vibration value (m/s²) | < 2,5 |
Vibration uncertainty (m/s²) | 1 |
Sound standard | ISO 15744 |
Sound pressure (dB(A)) | 69 |
Sound uncertainty (dB(A)) | 3 |
EAN | 8717981391899 |
Manuals
YZ-T900E-NL.pdf | Download |
YZ-T900E-DE.pdf | Download |
YZ-T900E-PT.pdf | Download |
YZ-T900E-SV.pdf | Download |
YZ-T900E-DA.pdf | Download |
YZ-T900E-ES.pdf | Download |
YZ-T900E-FI.pdf | Download |
YZ-T900E-EN.pdf | Download |
YZ-T900E-FR.pdf | Download |
YZ-T900E-SK.pdf | Download |
YZ-T900E-PL.pdf | Download |
YZ-T900E-IT.pdf | Download |
YZ-T900E-EL.pdf | Download |
YZ-T900E - QR Card.pdf | Download |
