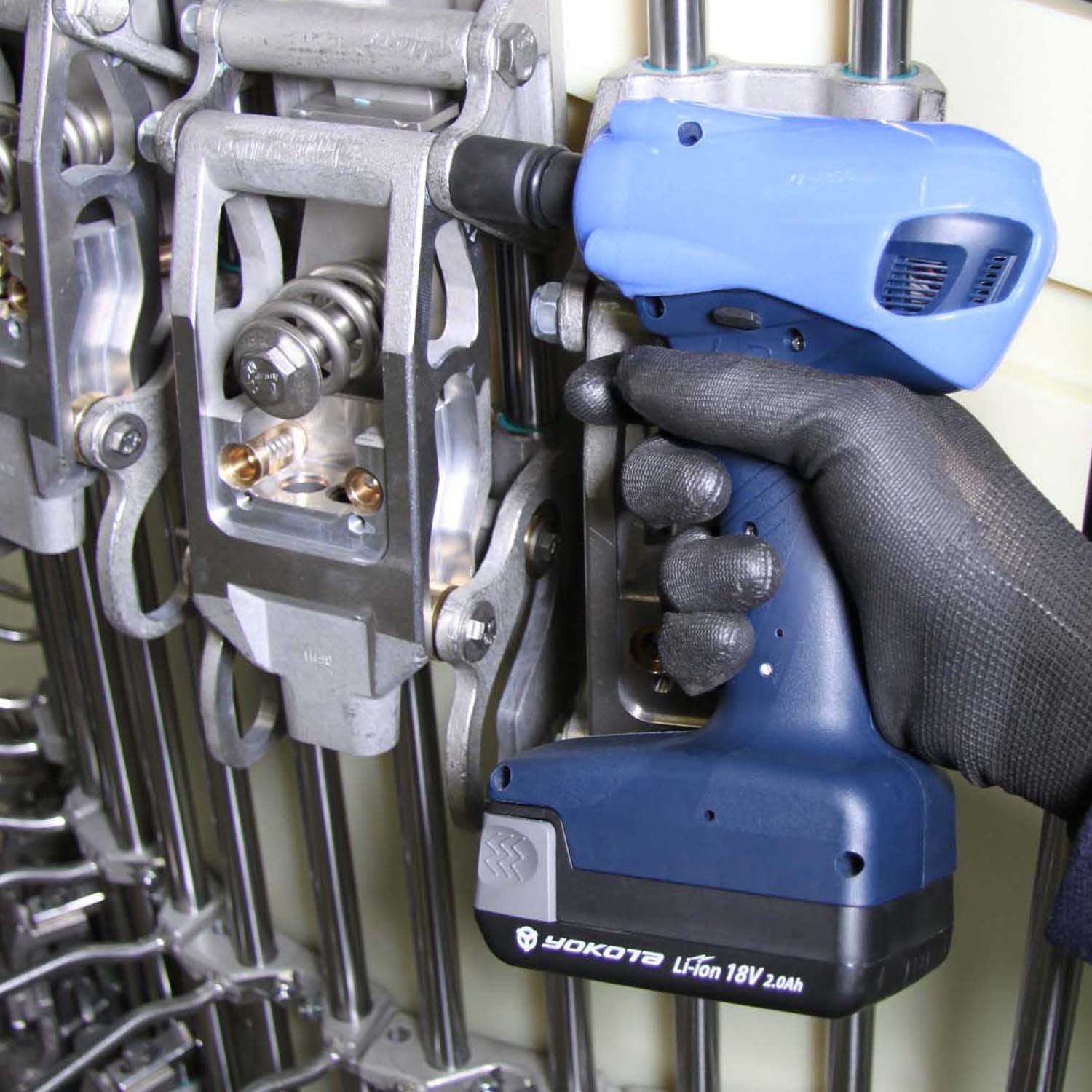

YOKOTA YZ-N battery impulse wrenches are powerful, very accurate and most important, have no kick-back. The very compact design offers great accessibility to the joint. Tightening bolts M10 with torque levels up to 65 Nm with very high speed and remarkably low reaction forces. The combination of adjustment of the relief valve and speed setting of the motor gives a great fit-for-purpose adaptation to the specific bolted joint.

Characteristics:
• With retention pin built-in in the square drive
• No kickback
• High speed fastening
• Hybrid technology
• DC drive brushless motor

Delivered without battery or charger.



Related accessories

BPL-1820

Battery for YS-E, YZ-N and YZ-T ser

61022-TH005

Tool Holder

0457-0029-00-00

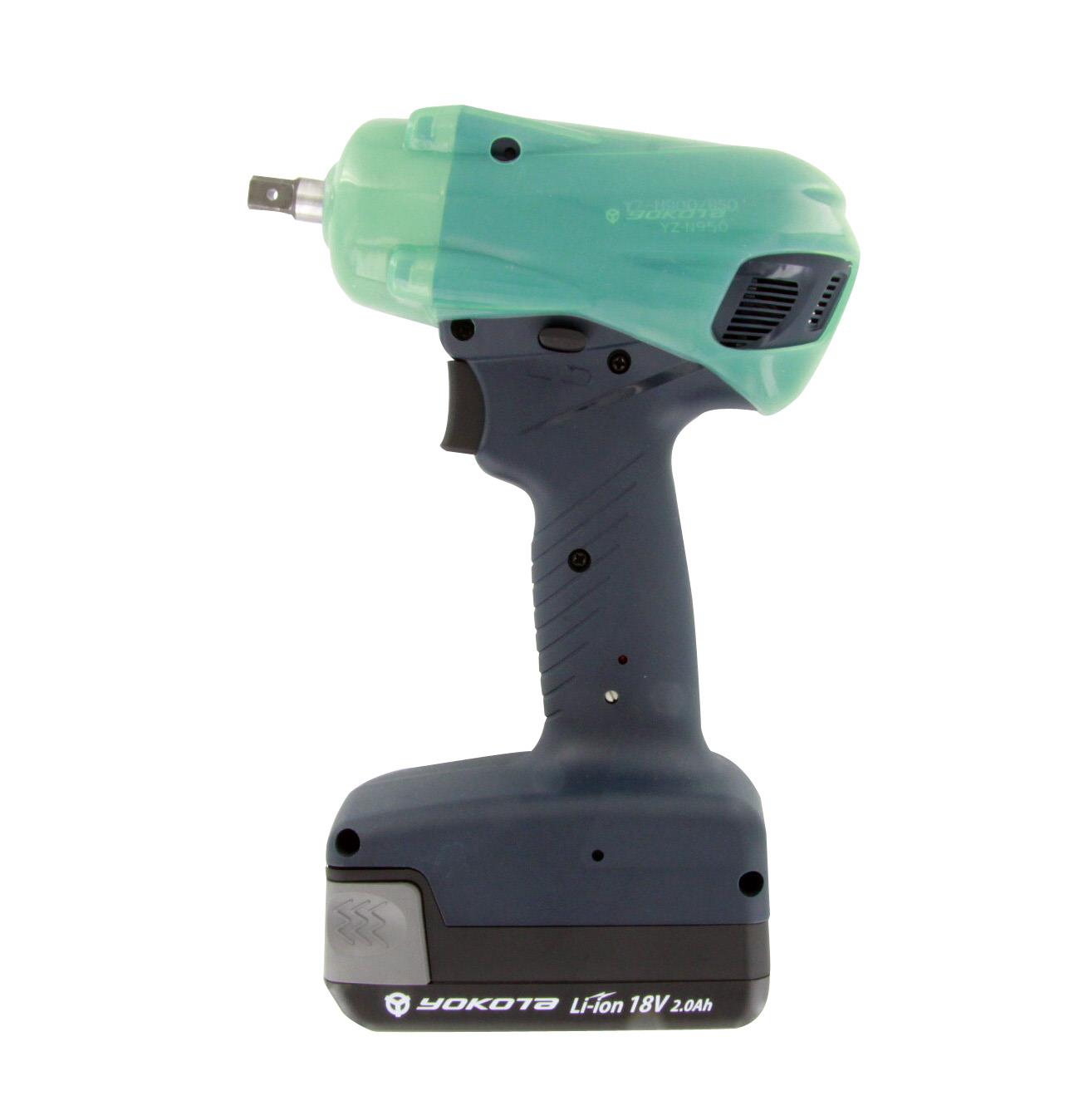

Rubber protection cover YZ-N950/A/Z



Specifications

Brand Yokota
Bolt capacity (mm) 8 - 10
RPM 2000 - 4800
Torque (Nm) 20 - 65
Weight w/o battery (kg) 1,25

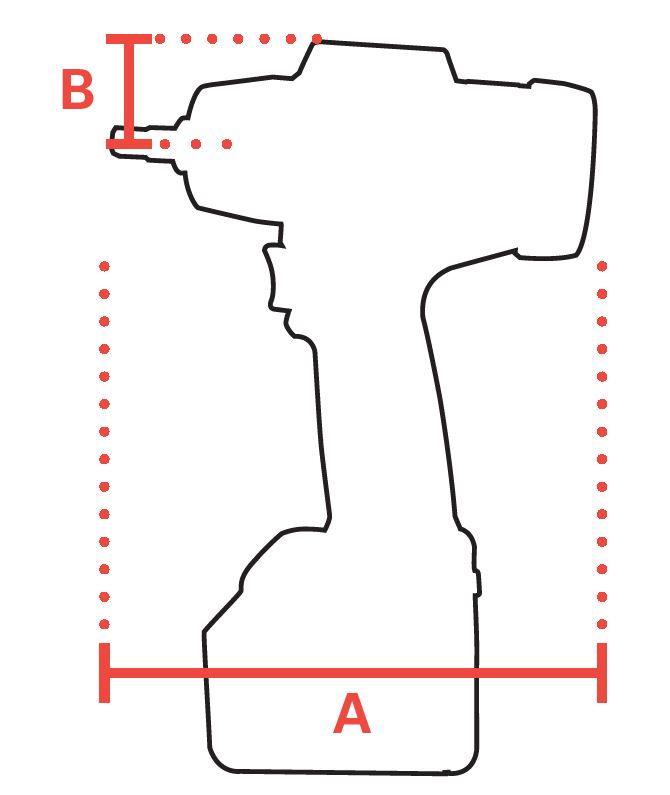

mm A 164
mm B 29,5
Power Supply (V) 18
Square Drive / Hexagon 3/8"
Safety standard EN ISO 11148-6
Vibration standard EN ISO 28927-2
Vibration value (m/s²) < 2,5
Vibration uncertainty (m/s²) 1
Sound standard ISO 15744
Sound pressure (dB(A)) 79
Sound uncertainty (dB(A)) 3
EAN 8717981387618
