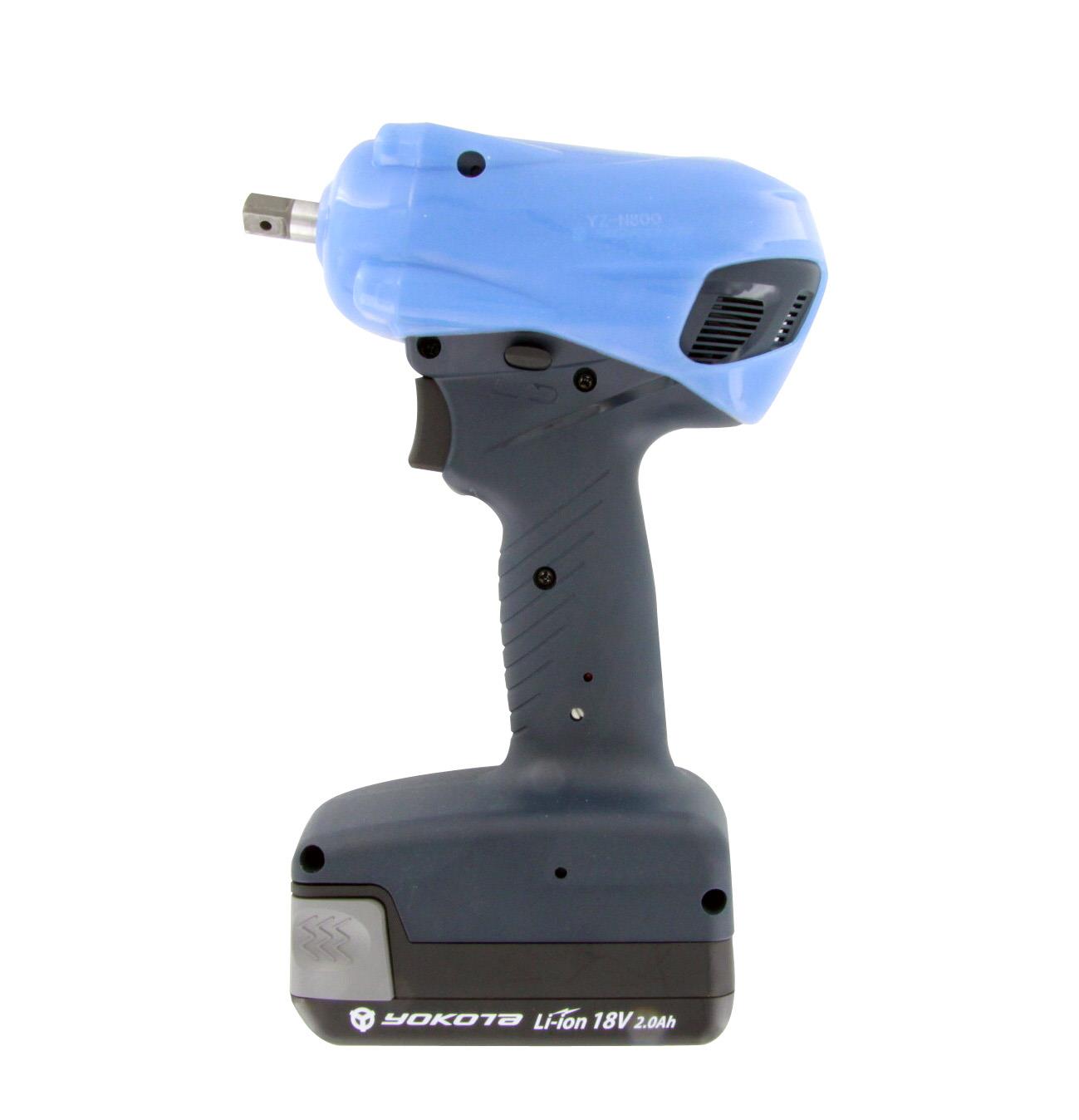

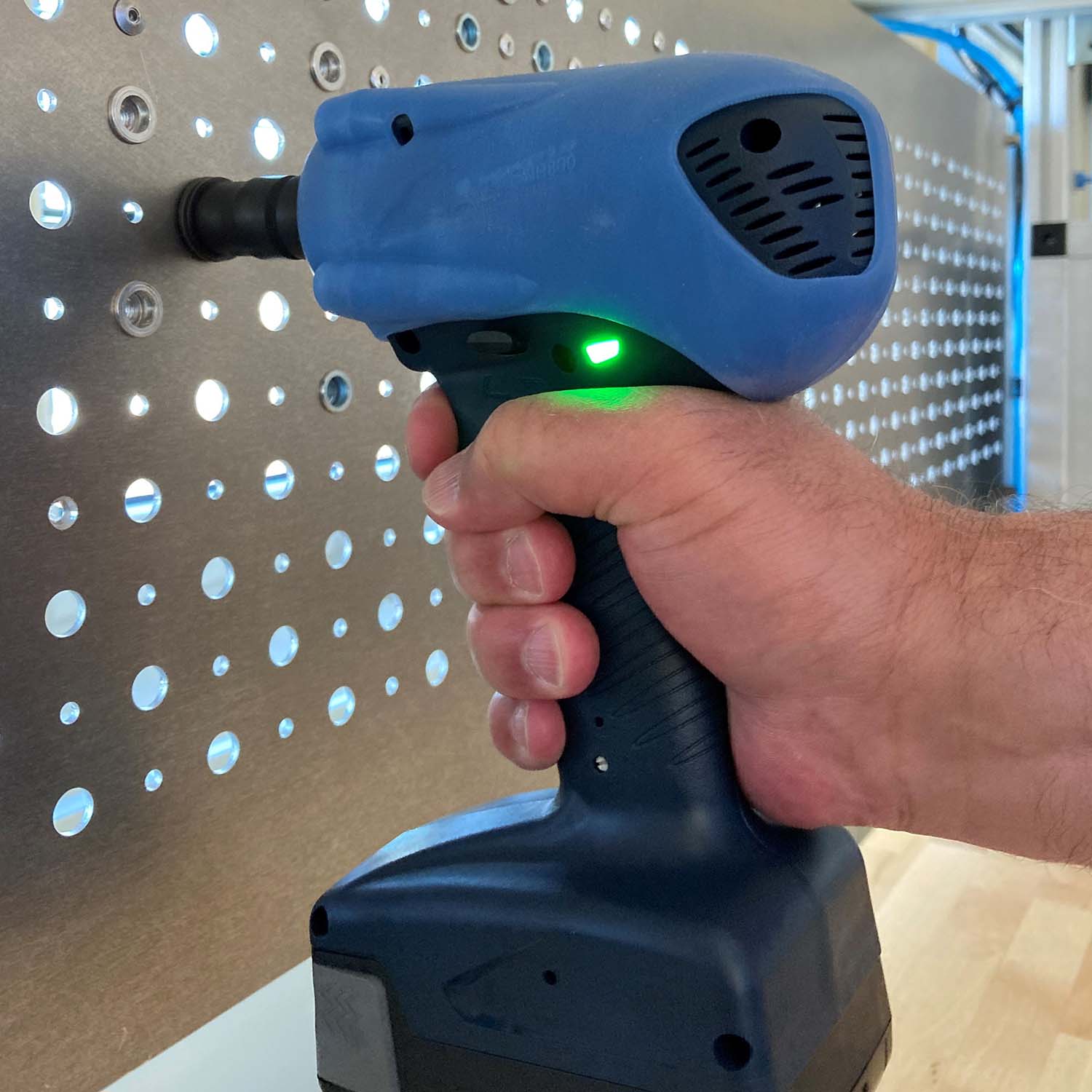

YOKOTA YZ-NP battery impulse wrenches are powerful, very accurate and
most important, have no kick-back. The very compact design offers
great accessibility to the joint. Tightening bolts M8 with
torque levels up to 30 Nm with very high speed and remarkably low
reaction forces. The combination of adjustment of the relief valve and
speed setting of the motor gives a great fit-for-purpose adaptation to
the specific bolted joint. Pulse check function: By teaching the tool the impulse cycle as a reference point, the tool is able to give a warning message for upcoming maintenance needs.
Characteristics:
• No kickback
• High speed fastening
• Hybrid technology
• DC drive brushless motor
Delivered with battery, but without charger.
Related accessories

BPL-1820
Battery for YS-E, YZ-N and YZ-T ser

0446-1801-00-00
Hanger clip YOKOTA cordless wrench

0446-0017-00-00
Hanger YOKOTA

61022-TH005
Tool Holder

0446-0029-00-01
Rubber protection cover Battery

BC2075MX
Battery Charger for BPL-1820

0455-0029-00-00
Rubber protection cover YZ-N800/A/Z
Specifications
Brand | Yokota |
Bolt capacity (mm) | 6 - 8 |
RPM | 2000 - 4800 |
Torque (Nm) | 15 - 30 |
Weight w/o battery (kg) | 1,05 |

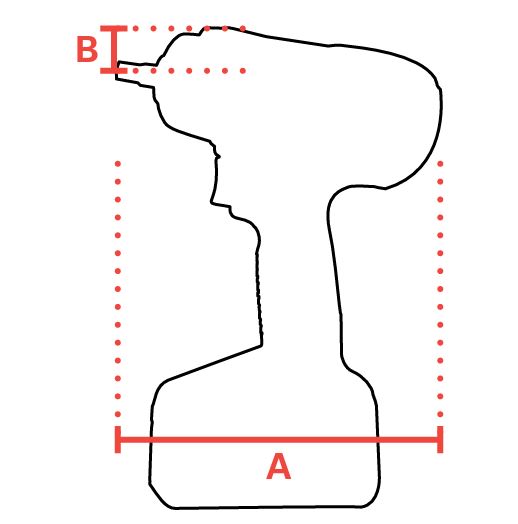

mm A | 157 |
mm B | 29,5 |
Power Supply (V) | 18 |
Square Drive / Hexagon | 1/4" HEX |
Safety standard | EN ISO 11148-6 |
Vibration standard | EN ISO 28927-2 |
Vibration value (m/s²) | < 2,5 |
Vibration uncertainty (m/s²) | 1 |
Sound standard | ISO 15744 |
Sound pressure (dB(A)) | 76 |
Sound uncertainty (dB(A)) | 3 |
EAN | 8717981415397 |
Manuals
YZ-NP800A-ES.pdf | Download |
YZ-NP800A-NL.pdf | Download |
YZ-NP800A-EN.pdf | Download |
YZ-NP800A-FI.pdf | Download |
YZ-NP800A-PL.pdf | Download |
YZ-NP800A-PT.pdf | Download |
YZ-NP800A-FR.pdf | Download |
YZ-NP800A-DA.pdf | Download |
YZ-NP800A-SV.pdf | Download |
YZ-NP800A-IT.pdf | Download |
YZ-NP800A-EL.pdf | Download |
YZ-NP800A-DE.pdf | Download |
YZ-NP800A-SK.pdf | Download |
YZ-NP800A - QR Card.pdf | Download |
