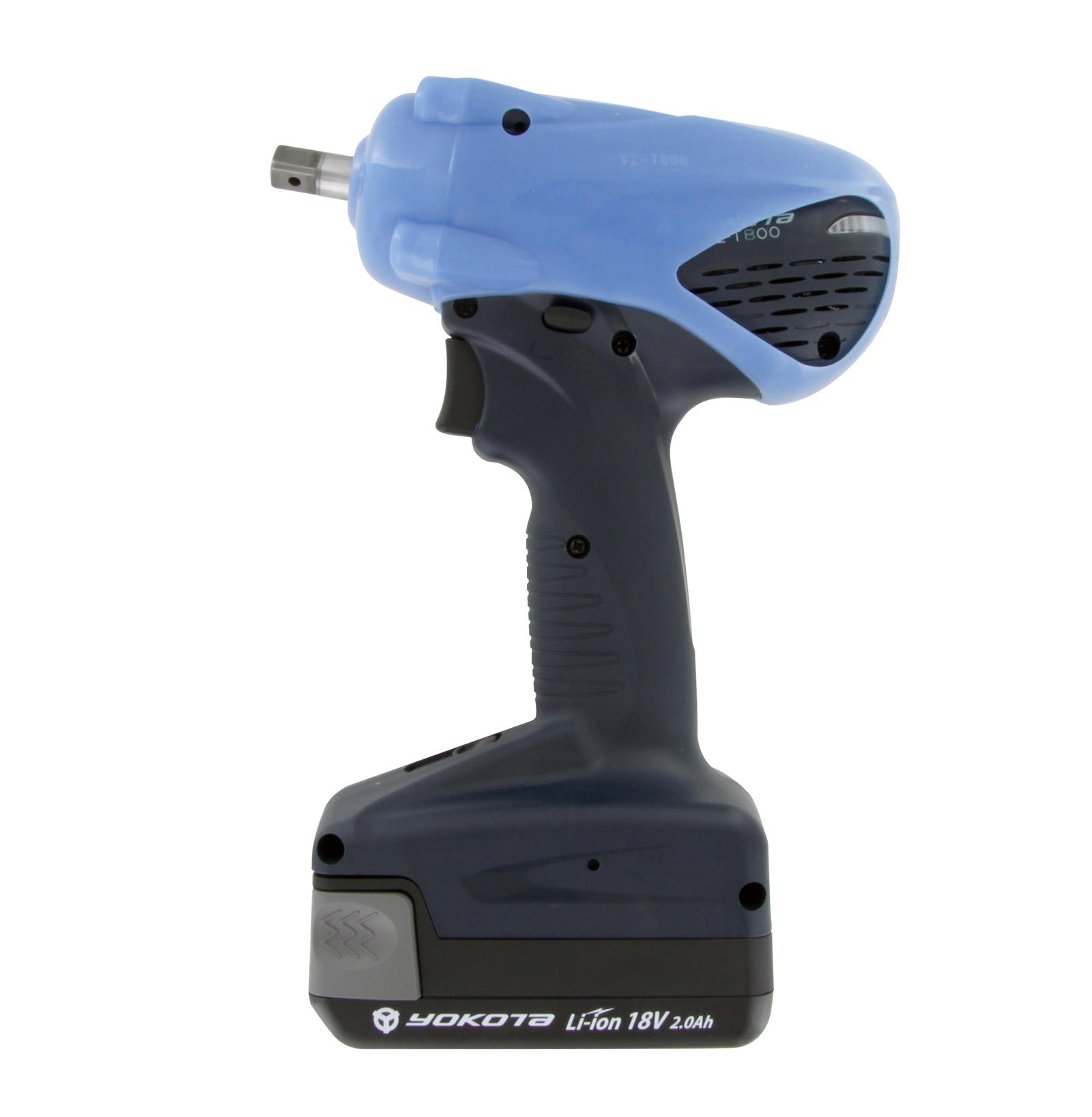

YOKOTA YZ-T battery impulse wrenches with shut-off are powerful, very accurate and most important, have no kick-back. The very compact design offers great accessibility to the joint. Tightening bolts with torque levels up to 35 Nm with very high speed and remarkably low reaction forces. Adjusting the tool settings for the specific bolted joint is done by Programming Console PC-2F and cable CC-1.
Auditory and visual feedback on the result of the screwing process.
Characteristics:
• With built-in retention in the square drive
• No kickback
• High speed fastening
• Hybrid technology
• DC drive brushless motor

Delivered inclusive battery but without charger.



Related accessories

BPL-1820

Battery for YS-E, YZ-N and YZ-T ser

CC-2 YJ

Cable between YZ-T<->Laptop

0446-1801-00-00

Hanger clip for YOKOTA cordless wrench

0446-0017-00-00

Hanger for YOKOTA cordless wrench

61022-TH005

Tool Holder

0446-0029-00-01

Rubber protection cover Battery

0459-0029-00-00

Protector YZ-T800

PC-2-F

Programming console w/o cable

BC2075MX

Battery Charger for BPL-1820

CC-1

Cable between YZ-T <-> PC-2-F



Specifications

Brand Yokota
Bolt capacity (mm) 6-8
RPM 2000 - 4800
Torque (Nm) 15 - 35
Weight w/o battery (kg) 1,1

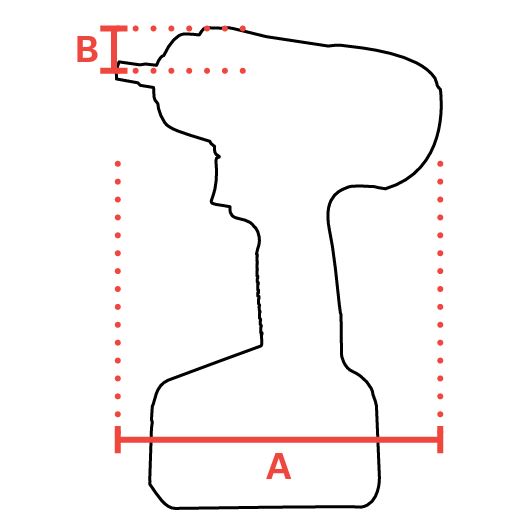

mm A 166
mm B 29,5
Power Supply (V) 18
Square Drive / Hexagon 3/8" Sq.Dr.
Safety standard EN ISO 11148-6
Vibration standard EN ISO 28927-2
Vibration value (m/s²) < 2,5
Vibration uncertainty (m/s²) 1
Sound standard ISO 15744
Sound pressure (dB(A)) 68
Sound uncertainty (dB(A)) 3
EAN 8717981391875



Manuals

YZ-T800E-NL.pdf Download
YZ-T800E-DE.pdf Download
YZ-T800E-FR.pdf Download
YZ-T800E-EN.pdf Download
YZ-T800E - QR Card.pdf Download
