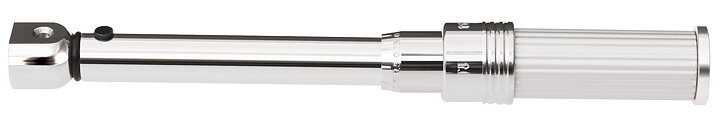

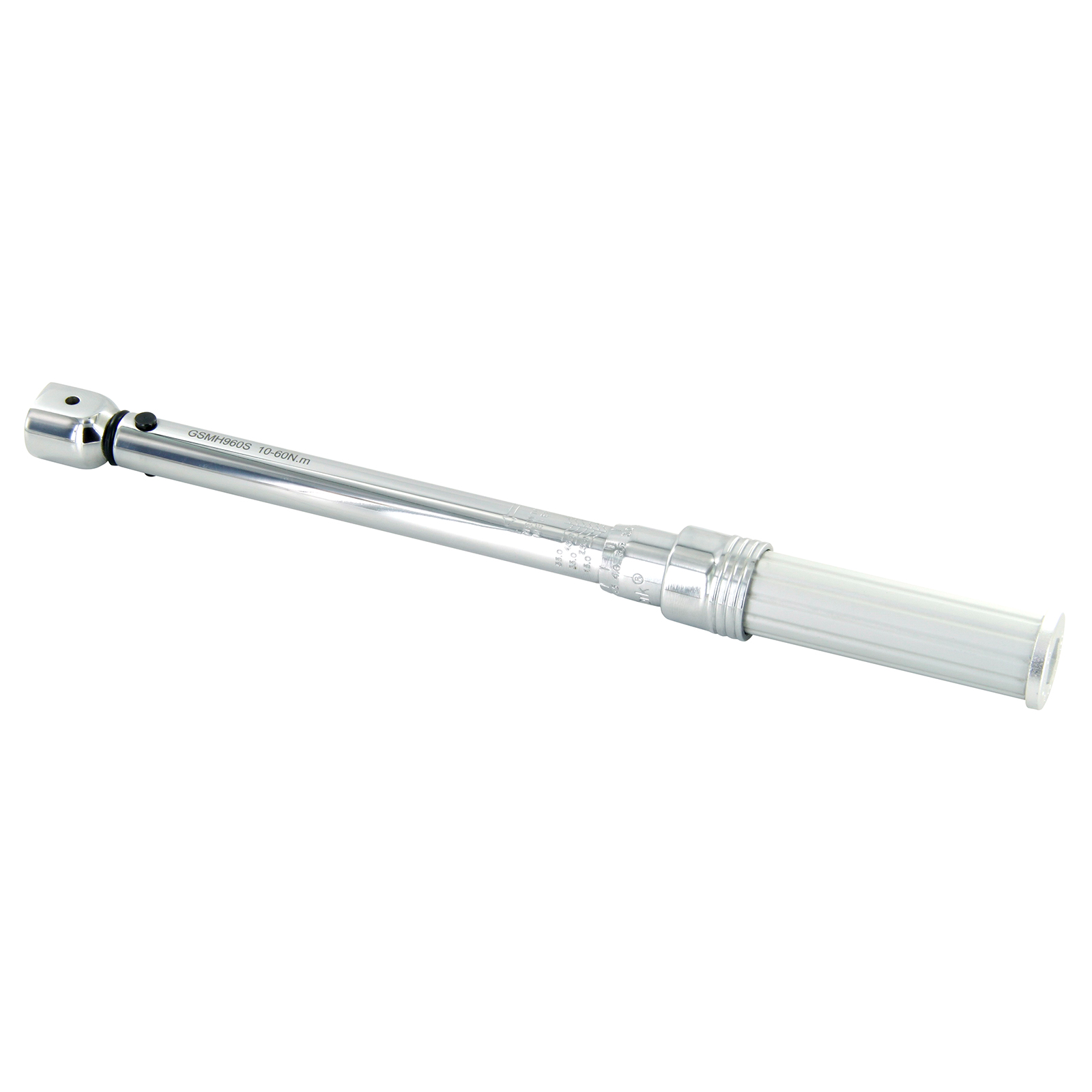

GS Series Mini Micrometer Adjustable (Click) Torque Wrench
• Accuracy: ±4% in clockwise direction from 20% to 100% of capacity.
• Small sizes and light weight, and can be operated in confined spaces.
• Permanently stamped major and minor scales for precision torque values setting.
• Minor scale is 1/10 of increment of main scale.
• Set torque by locking ring. The rebound self-locking structure can reliably lock the required torque.
• Grooved non-slip grip fits comfortably in your hand.
• Various kinds of heads designed for different applications:
- GSMH_S / GSH_S model: Head holder for standard 9x12mm rectangular shank heads.




Related accessories

QH910

End fitting

DH92160

End fitting 9x12 Ratchet 3/8

OH980

End fitting 9x12, Open End 80 mm

OH950A15

End fitting 9x12, Open End 50 mm an

QH932

End fitting

OH910A15

End fitting 9x12, Open End 10 mm an

DH9125

End fitting 9x12 ratchet 1/4

DH93160

End fitting 9x12 Ratchet 1/2

OH96

End fitting 9x12, Open End 6 mm



Specifications

Brand NovaTork
Torque (Nm) 8 ~ 40
Weight (kg) 0,36
insert tool (mm) 9x12
mm B 28
L mm 244
EAN 8717981421541
