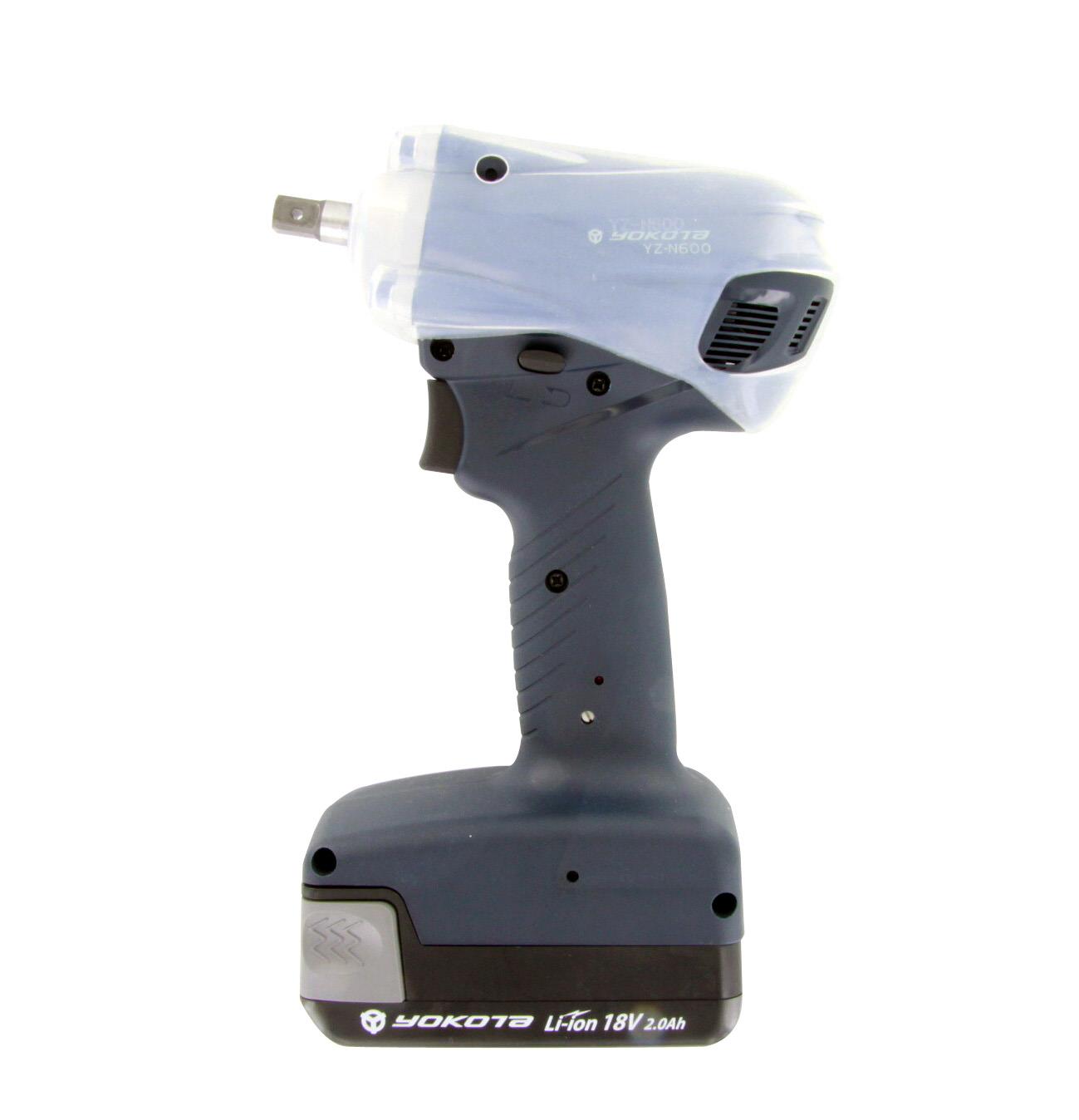

YOKOTA YZ-NP battery impulse wrenches are powerful, very accurate and
most important, have no kick-back. The very compact design offers
great accessibility to the joint. Tightening bolts M6 with
torque levels up to 25 Nm with very high speed and remarkably low
reaction forces. The combination of adjustment of the relief valve and
speed setting of the motor gives a great fit-for-purpose adaptation to
the specific bolted joint. Pulse check function: By teaching the tool the impulse cycle as a reference point, the tool is able to give a warning message for upcoming maintenance needs.
Characteristics:
• No kickback
• High speed fastening
• Hybrid technology
• DC drive brushless motor
Delivered with battery, but without charger.
Related accessories
BPL-1820
Battery for YS-E, YZ-N and YZ-T ser
0446-1801-00-00
Hanger clip YOKOTA cordless wrench
0446-0017-00-00
Hanger YOKOTA
61022-TH005
Tool Holder
0446-0029-00-01
Rubber protection cover Battery
0454-0029-00-00
Rubber protection cover YZ-N600/A/Z
BC2075MX
Battery Charger for BPL-1820
Specifications
Brand | Yokota |
Bolt capacity (mm) | 6 |
RPM | 2000- 4800 |
Torque (Nm) | 9 - 20 |
Weight w/o battery (kg) | 1,0 |

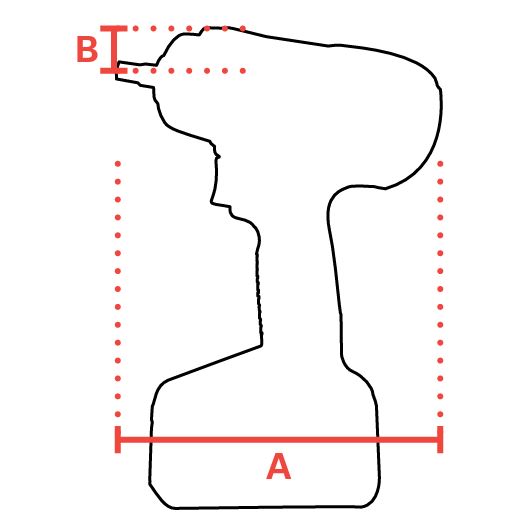

mm A | 152 |
mm B | 29,5 |
Power Supply (V) | 18 |
Safety standard | EN ISO 11148-6 |
Formal Capacity | 8 - 25 |
Formal Serie From | 0S0001 |
Vibration standard | EN ISO 28927-2 |
Vibration value (m/s²) | < 2,5 |
Vibration uncertainty (m/s²) | 1 |
Sound standard | ISO 15744 |
Sound pressure (dB(A)) | 72 |
Sound uncertainty (dB(A)) | 3 |
Product Group | Impulse Wrenches |
Sales Group | 006 |
UNSPSC number | 27131501 |
Eclass number | 21061206 |
EAN | 8717981415373 |
Manuals
YZ-NP600E-FR.pdf | Download |
YZ-NP600E-EN.pdf | Download |
YZ-NP600E-NL.pdf | Download |
YZ-NP600E-DE.pdf | Download |
YZ-NP600E - QR Card.pdf | Download |
