RED ROOSTER Industrial pneumatic blind rivet nut setter. Very fast, with low air consumption per blind rivet nut. Lightweight and ergonomically designed for optimum working comfort. Air connection to be used either on the left or right side of the tool. The muffled exhaust is integrated in the base of the tool. The composite housing is thermally insulating and fits comfortably in the hand. The rocker switch allows the machine to be used with one hand.
Characteristics:
• fast
• low air consumption
• ergonomic and lightweight
• quick change system for adapters M3, M4, M5 and M6
• supplied as standard with M3 adapter
• use a pressure regulator to set the force of the tool for the chosen rivet nuts.
Related products
AC20A-F02E-D
Modular FRL unit
Related accessories
CP103800Q
Quick Change Nose Head M3
AR20-F02E-B
Pressure regulator
YouTubeSpecifications
| Brand | Red Rooster Industrial |
| RPM | 1500 |
| Airconsumption (l/s) | 1,5 |
| Weight (kg) | 1,1 |
| Sound level (dB(A)) | 86 |
| Airconnection | PT 1/4" |
| Airpress max. (MPa) | 0,63 |
| Max. capacity | M3 |

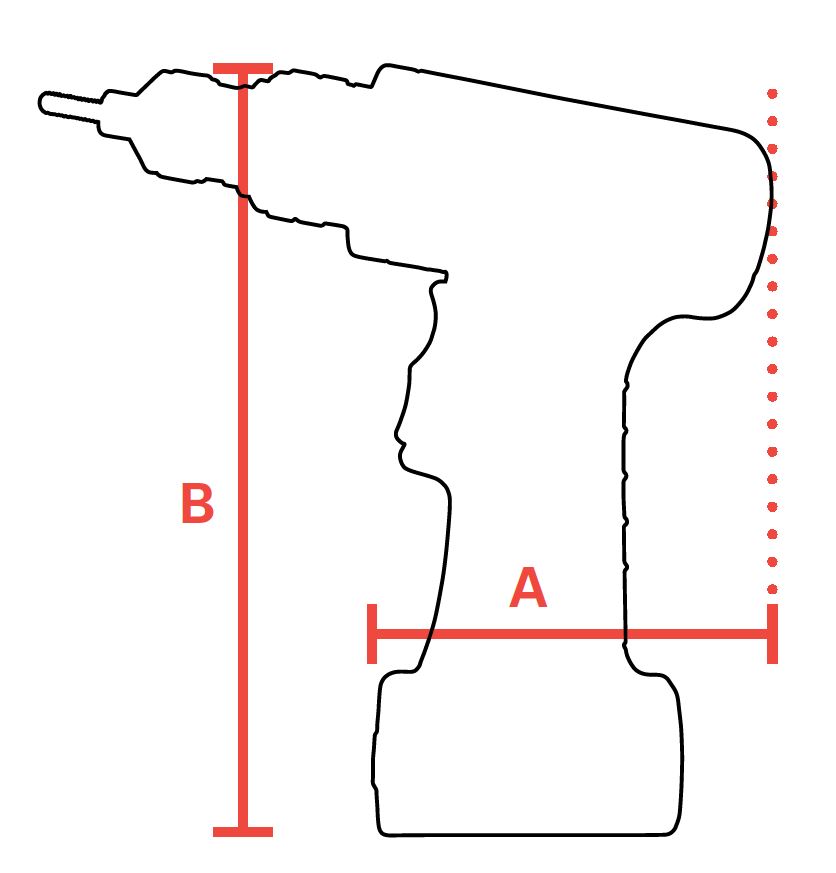

| mm A | 190 |
| mm B | 210 |
| Stroke (mm) | 6 |
| Hosediameter (mm) | 10 |
| Vibration level (m/s²) | < 2,5 |
| Safety standard | EN ISO 11148-1 |
| EAN | 8717981417131 |
