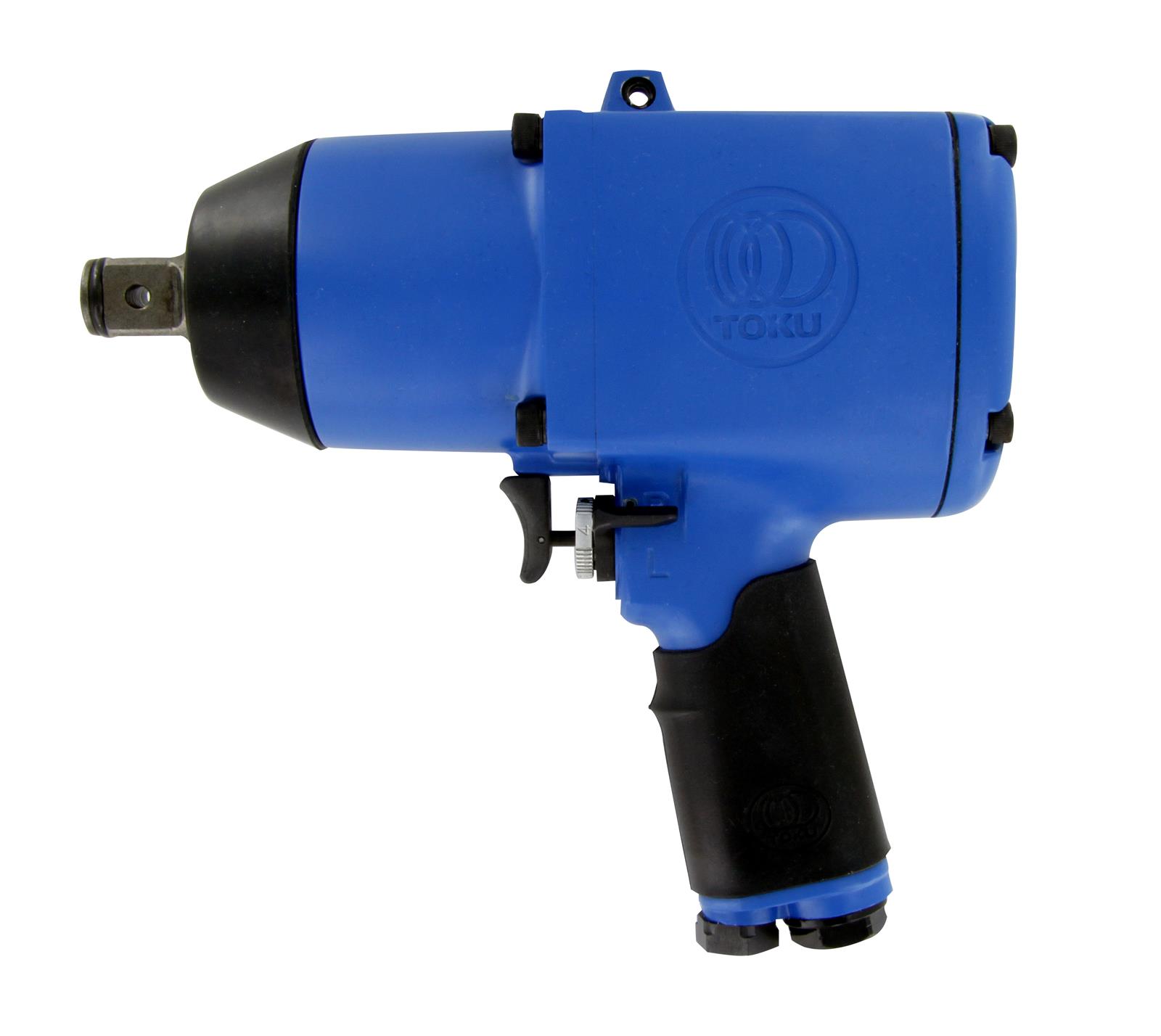

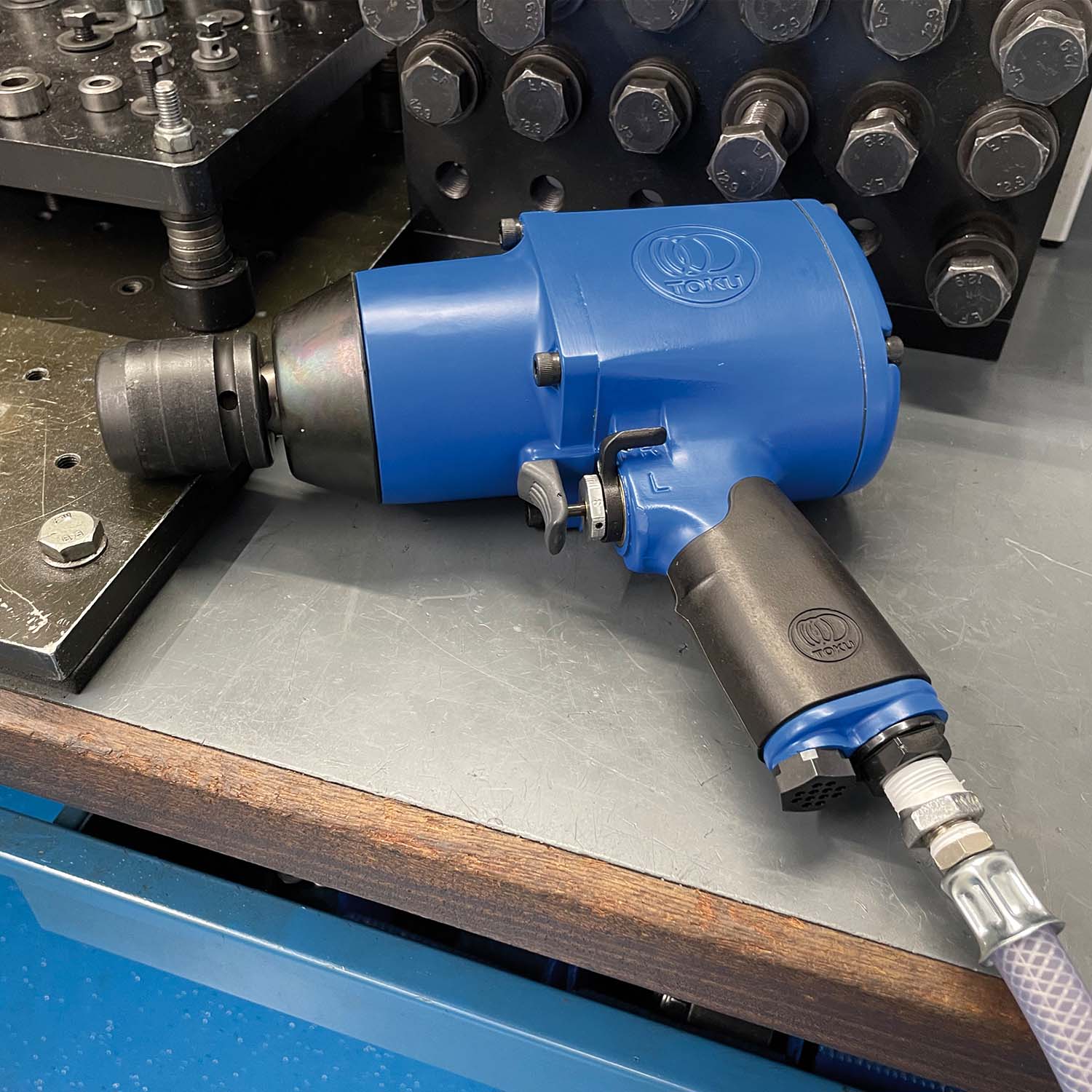

This TOKU Impact Wrench has an excellent weigth/power ratio. The MI-20GP is developed for assembly- and disassembly purposes. The Twin-Hammer impact mechanism has a high energy level at each impact and thus suitable for heavy duty application. The energy is brought directly to the drive shaft for maximum power and minimal maintenance. This tool is suitable for industrial use.
Characteristics:
• Ergonomic design, well balanced
• Compact and durable
• Clutch: Twin-Hammer
• Adjustable power, 4 positions
• Exhaust through isolated grip, with silencer
Related products
DO605421001
Impact Socket Set 3/4" deep 10p
AC40A-F04-D
Modular FRL unit
DO605401001
Socketset 3/4" 10-Parts
Related accessories
DOESR-1
Ret Ring
Specifications
| Brand | Toku |
| Square Drive | 3/4" |
| Version | R+H |
| Bolt capacity (mm) | 24 |
| Impact mechanism | Twin-Hammer |
| RPM | 5000 |
| Torque (Nm) | 1000 |
| Force adjustment | R/L 4 standen |
| Airconsumption (l/s) | 15 |
| Weight (kg) | 3,9 |
| Airconnection | PT 3/8" |
| Airpress max. (MPa) | 0,63 |

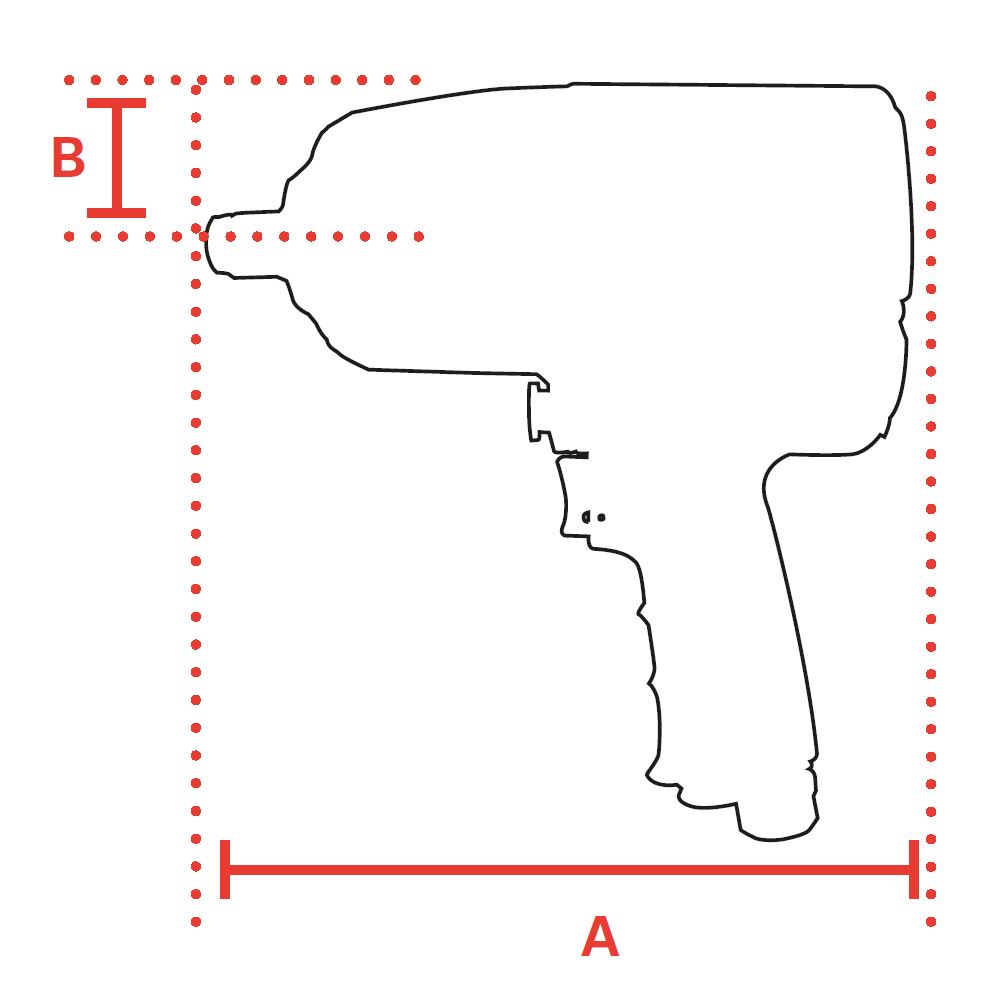

| mm A | 215 |
| mm B | 38 |
| Hosediameter (mm) | 10 |
| Safety standard | EN ISO 11148-6 |
| Max. breakaway torque (Nm) | 2400 |
| Vibration standard | EN ISO 28927-2 |
| Vibration value (m/s²) | 8,5 |
| Vibration uncertainty (m/s²) | 1,34 |
| Sound standard | ISO 15744 |
| Sound pressure (dB(A)) | 94 |
| Sound power (dB(A)) | 105 |
| Sound uncertainty (dB(A)) | 3 |
| EAN | 8717981380893 |
