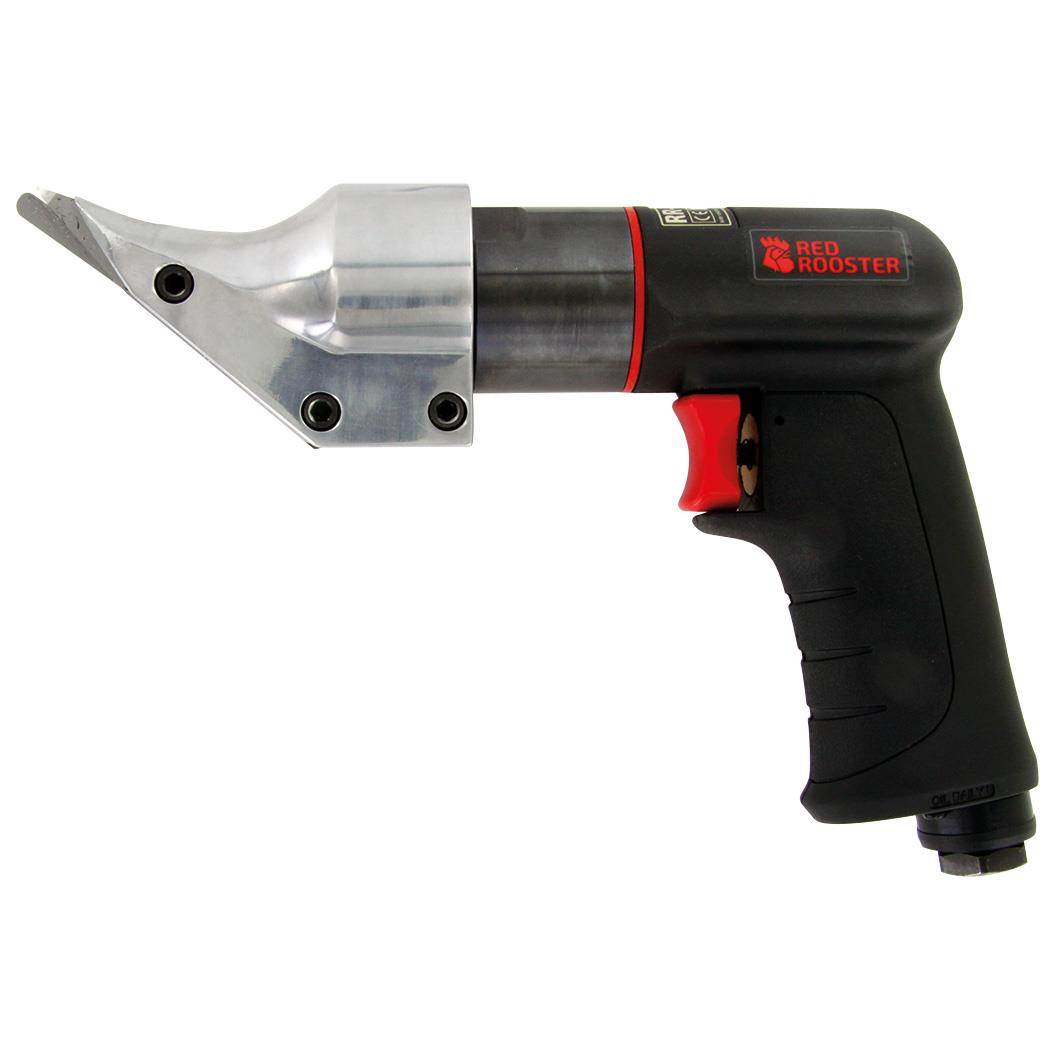

The RED ROOSTER RR-8110 sheet metal shears remove a narrow strip from the sheet to be cut. Ideal for fast cutting of sheet metal, makes a tight cut without deforming the sheet metal. Also suitable for curved sheet metal such as thin-walled pipes. The head is adjustable 360 degrees.
Specifications
| Brand | Red Rooster |
| Airconsumption (l/s) | 9,4 |
| Weight (kg) | 1,18 |
| Capacity aluminium (mm) | 1,2 |
| Capacity steel (mm) | 1 |
| Airconnection | PT 1/4" |
| Airpress max. (MPa) | 0,63 |

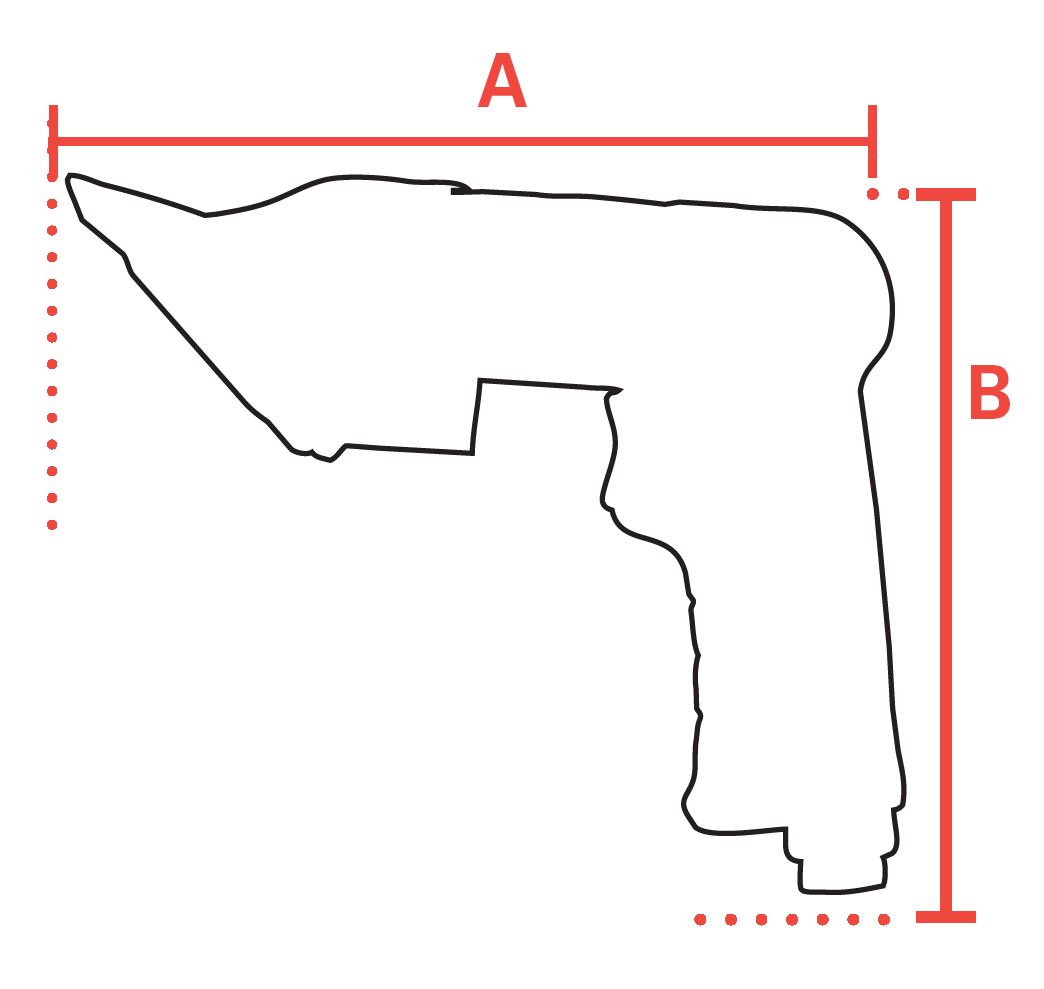

| mm A | 230 |
| mm B | 157 |
| Stroke (mm) | N/A |
| Strokes per minute | 2400 |
| Hosediameter (mm) | 10 |
| Power (kW) | 0,3 |
| Safety standard | EN ISO 11148-12 |
| Vibration standard | EN ISO 28927-7 |
| Vibration value (m/s²) | 3,4 |
| Vibration uncertainty (m/s²) | 1,44 |
| Sound standard | ISO 15744 |
| Sound pressure (dB(A)) | 81 |
| Sound power (dB(A)) | 92 |
| Sound uncertainty (dB(A)) | 3 |
| EAN | 8717981400836 |
