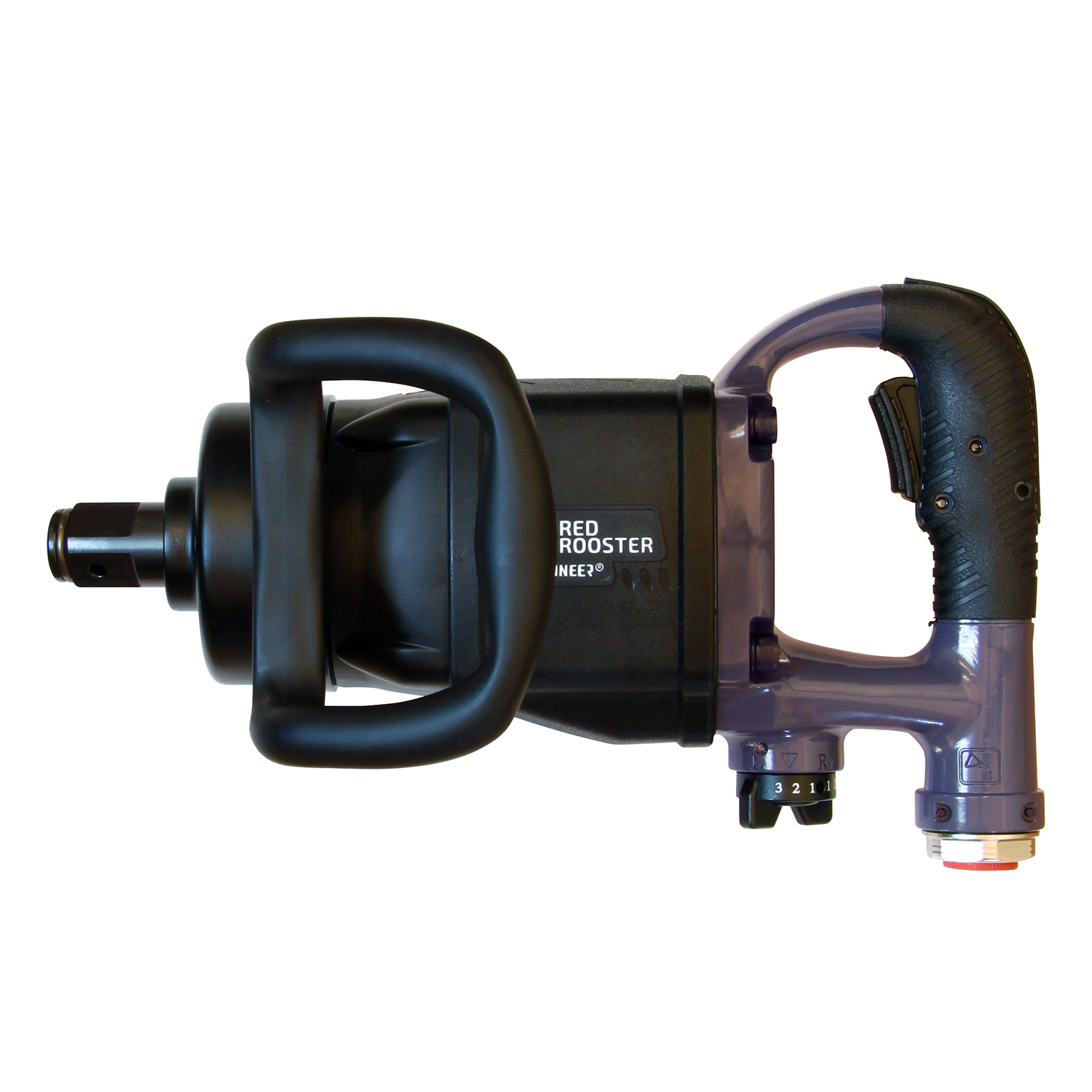

This impact wrench by RED ROOSTER has an excellent weight/power ratio. The RRI-3700MK is developed for assembly- and disassembly applications. The revolutionary Mechoneer impact mechanism gives high energy levels per impact. The Mechoneer impact mechanism combines the hitting strength of a Twin Hammer with the durability advantage of the closed hammer mechanism. On top of that, it is greased fully, which results in low vibration levels and low sound pressure. The tool is suitable for industrial use. The high RPM air motor builds up the desired torque levels very fast.
Breakloose torque: 3.390 Nm.

Characteristics:
• Ergonomic design, well balanced
• Compact design
• Mechoneer Impact mechanism
• Power adjustable, 3 positions, integrated in Forward/Reverse button
• Dead handle 360 degrees adjustable

Related products

AC40A-F04-D

Modular FRL unit



Related accessories

ATLUB

Air Tool Oil, 1 litre

DOESR-3

Ret Ring



Specifications

Brand Red Rooster Industrial
Square Drive 1"
Version R+H
Bolt capacity (mm) 36
Impact mechanism Mechoneer
RPM 6000
Torque (Nm) 2700
Force adjustment R/L 3 Pos
Airconsumption (l/s) 20
Weight (kg) 9,0
Airconnection PT 1/2"
Airpress max. (MPa) 0,63

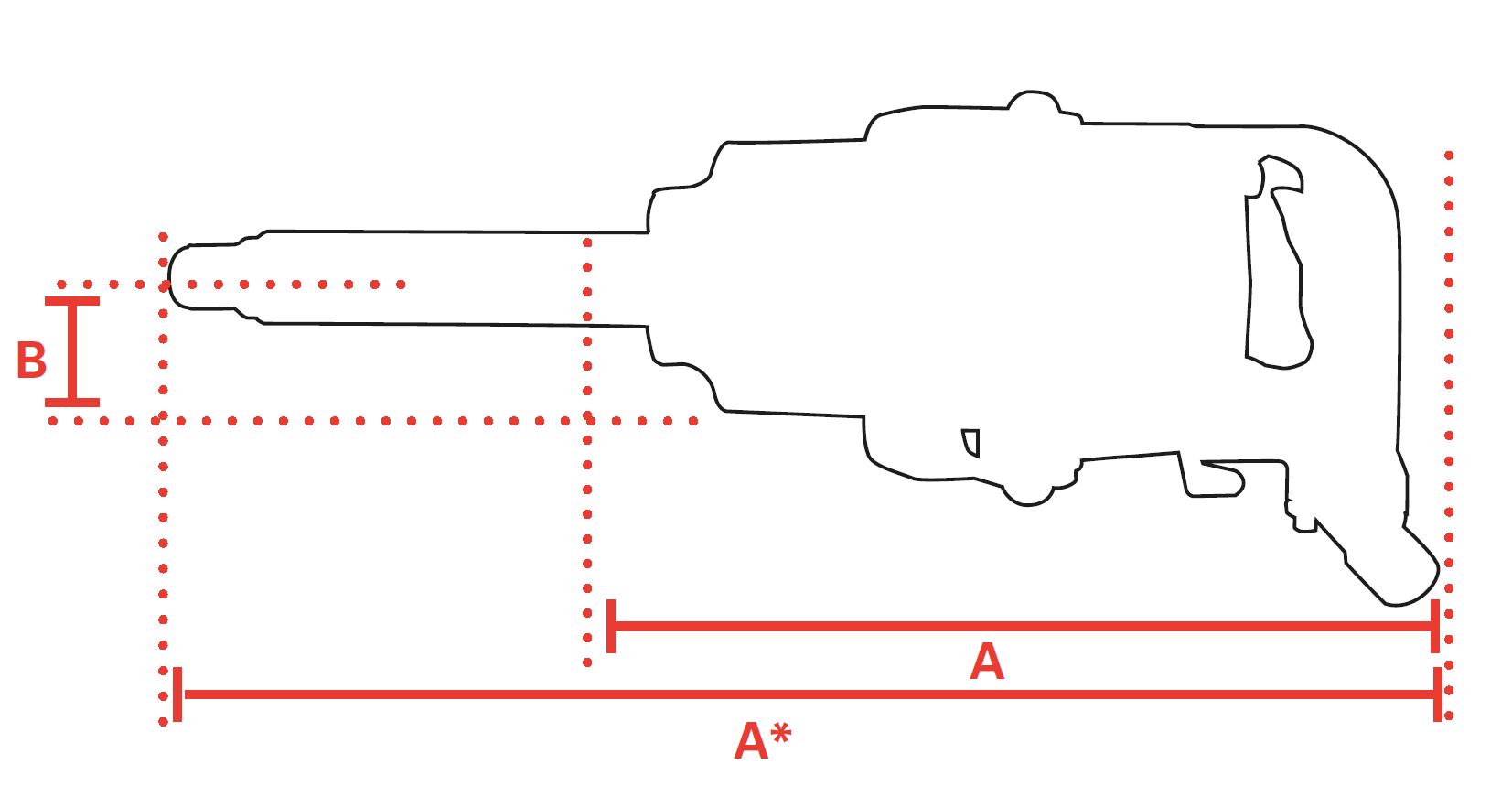

mm A 350
mm B 62
Hosediameter (mm) 13
Safety standard EN ISO 11148-6
Vibration standard EN ISO 28927-2
Vibration value (m/s²) 12,7
Vibration uncertainty (m/s²) 1,75
Sound standard ISO 15744
Sound pressure (dB(A)) 108
Sound uncertainty (dB(A)) 3
EAN 8717981418923
