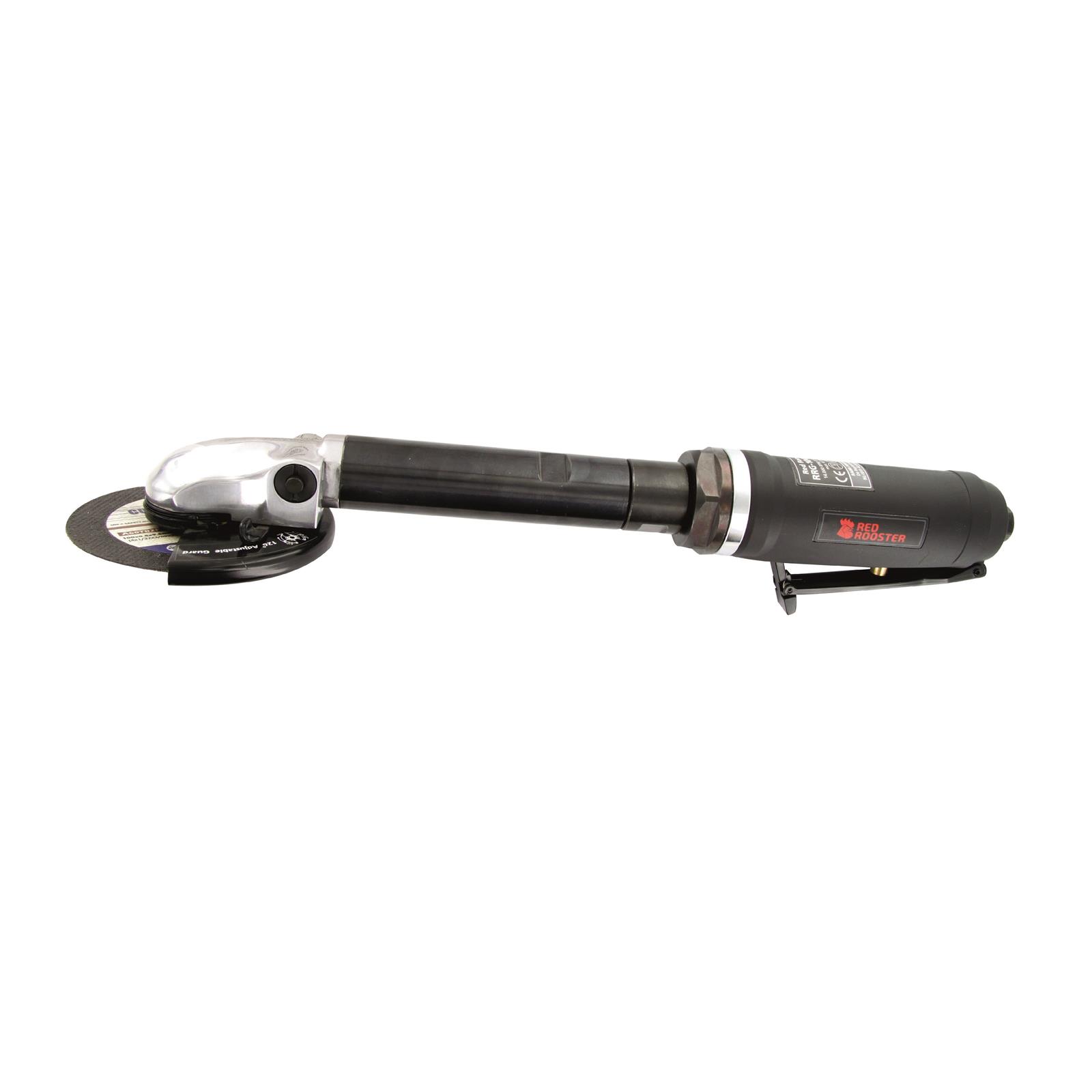

This RED ROOSTER angled cut-off tool is used with 100mm mini cutting discs.
The long neck, combined with the low profile angle head of this grinder offers good accessibility.
Characteristics:
• The perfect tool for cutting off car body parts and exhaust pipe.
• The rubber moulded cushion grip offers good thermal isolation.
• A push button easily adjusts the swivel guard in 11 different positions.
• Spindle lock by means of push button for ease of changing discs.
• This grinder has a silenced rear exhaust.
• Perfect weight / power ratio.
• Length of neck 300 mm.
• Height of head: 38 / 42 mm.
Related products
5L-321139-11
Cutting Disc 100x1.0x16mm
AC30A-F03E-B
Modular FRL Unit
Related accessories
ATLUB
Air Tool Oil, 1 litre
Specifications
| Brand | Red Rooster |
| RPM | 14.000 |
| Airconsumption (l/s) | 14 |
| Weight (kg) | 1,7 |
| Airconnection | PT 1/4" |
| Airpress max. (MPa) | 0,63 |
| mm A | 377 |
| mm B | 42 |
| mm C | 22 |
| mm D | 45 |
| Hosediameter (mm) | 10 |
| Spindle | M6 |
| Power (kW) | 0,76 |
| Wheel size (mm) | 100 x (0,8 - 1) x 16 mm |
| Safety standard | EN ISO 11148-7 |
| Vibration standard | EN ISO 28927-1 |
| Vibration value (m/s²) | 3,8 |
| Vibration uncertainty (m/s²) | 1,26 |
| Sound standard | ISO 15744 |
| Sound pressure (dB(A)) | 85,5 |
| Sound power (dB(A)) | 96,5 |
| Sound uncertainty (dB(A)) | 3 |
| EAN | 8717981366781 |
