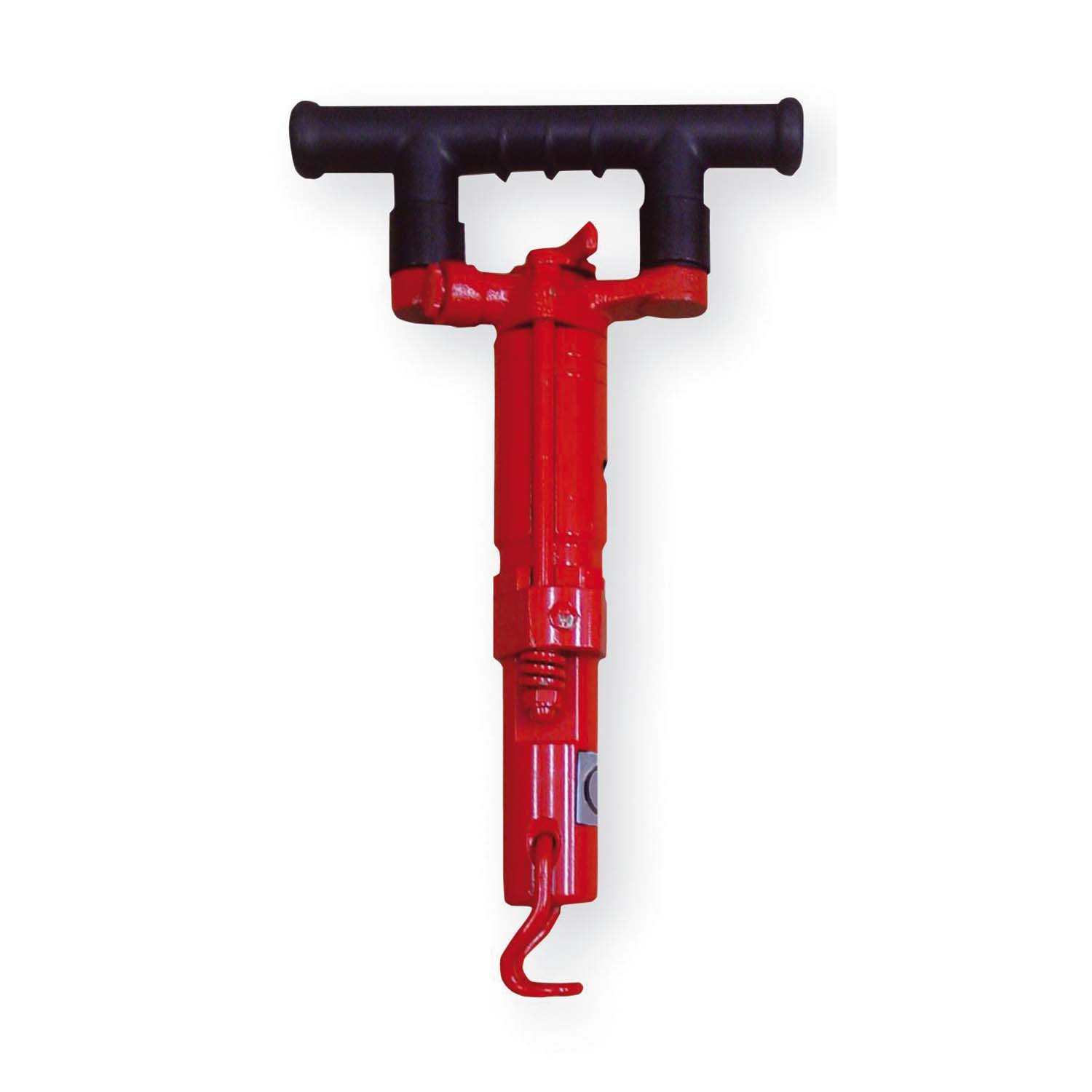

This Toku Rockdrill is suitable for use in timeconsuming jobs.
It has a high hitting energy level.
To be considered in construction and renovation industry.
Characteristics:
* Ergonomical design, well balanced
* Compact quality tool
* Suits both left-and right-handers.
Specifications
| Brand | Toku |
| RPM | 420 |
| Airconsumption (l/s) | 14 |
| Weight (kg) | 5,8 |
| Shank size (mm) | R^19 x H^14,8 x 89 |
| Airconnection | PT 3/8" |
| Airpress max. (MPa) | 0,63 |

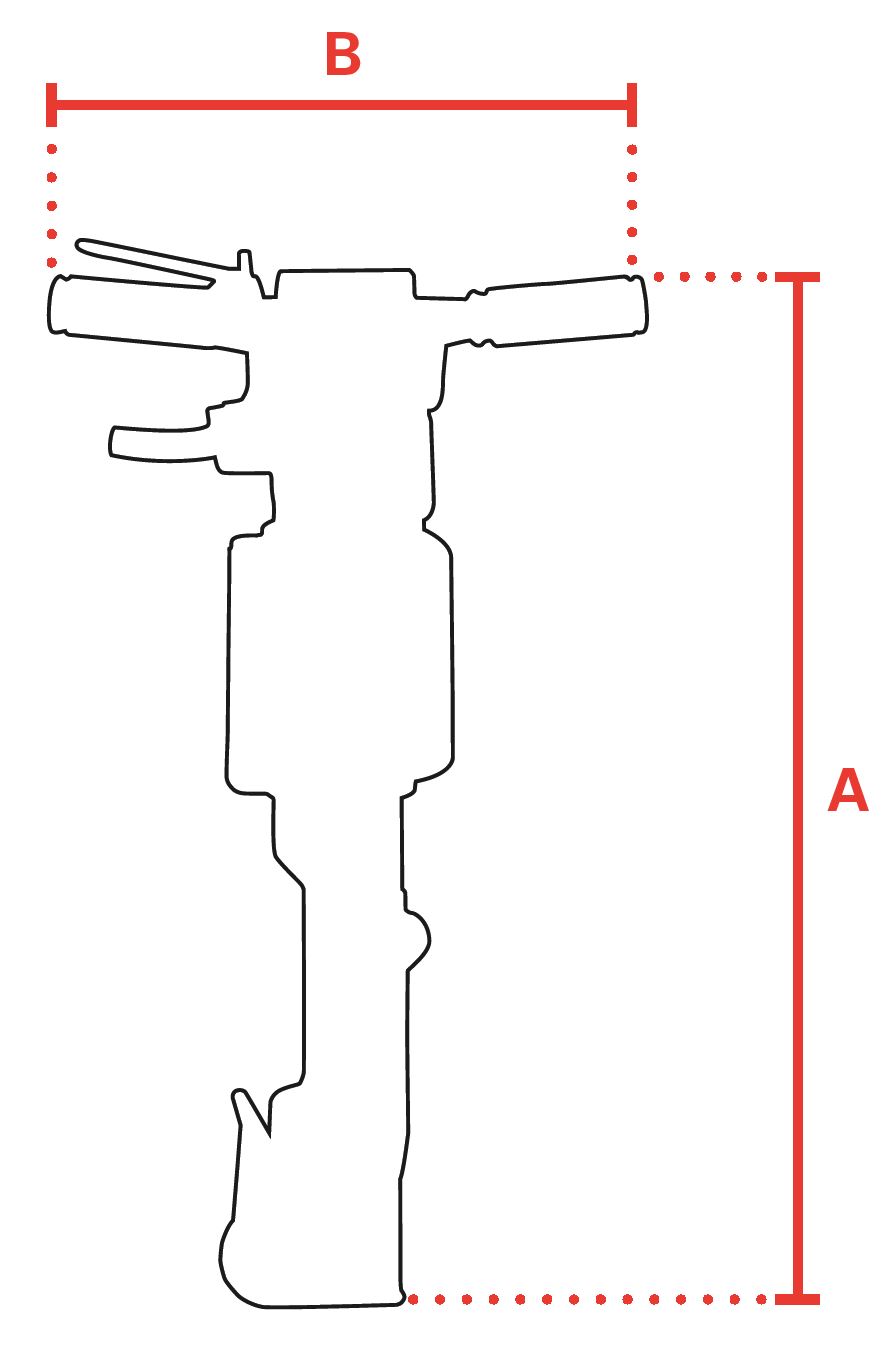

| mm A | 425 |
| mm B | 250 |
| Stroke (mm) | 31 |
| Strokes per minute | 3400 |
| Energy (J/Stroke) | 17 |
| Hosediameter (mm) | 13 |
| Piston (mm) | 38 |
| Safety standard | EN ISO 11148-5 |
| Vibration standard | EN ISO 28927-10 |
| Vibration value (m/s²) | 24,0 |
| Vibration uncertainty (m/s²) | 2,90 |
| Sound pressure (dB(A)) | 101 |
| Sound power (dB(A)) | 112 |
| Sound uncertainty (dB(A)) | 3 |
| EAN | 8717981064700 |
Manuals
| TH-5S-NL.pdf | Download |
| TH-5S-FR.pdf | Download |
| TH-5S-DE.pdf | Download |
| TH-5S-EN.pdf | Download |
| TH-5S - QR Card.pdf | Download |
