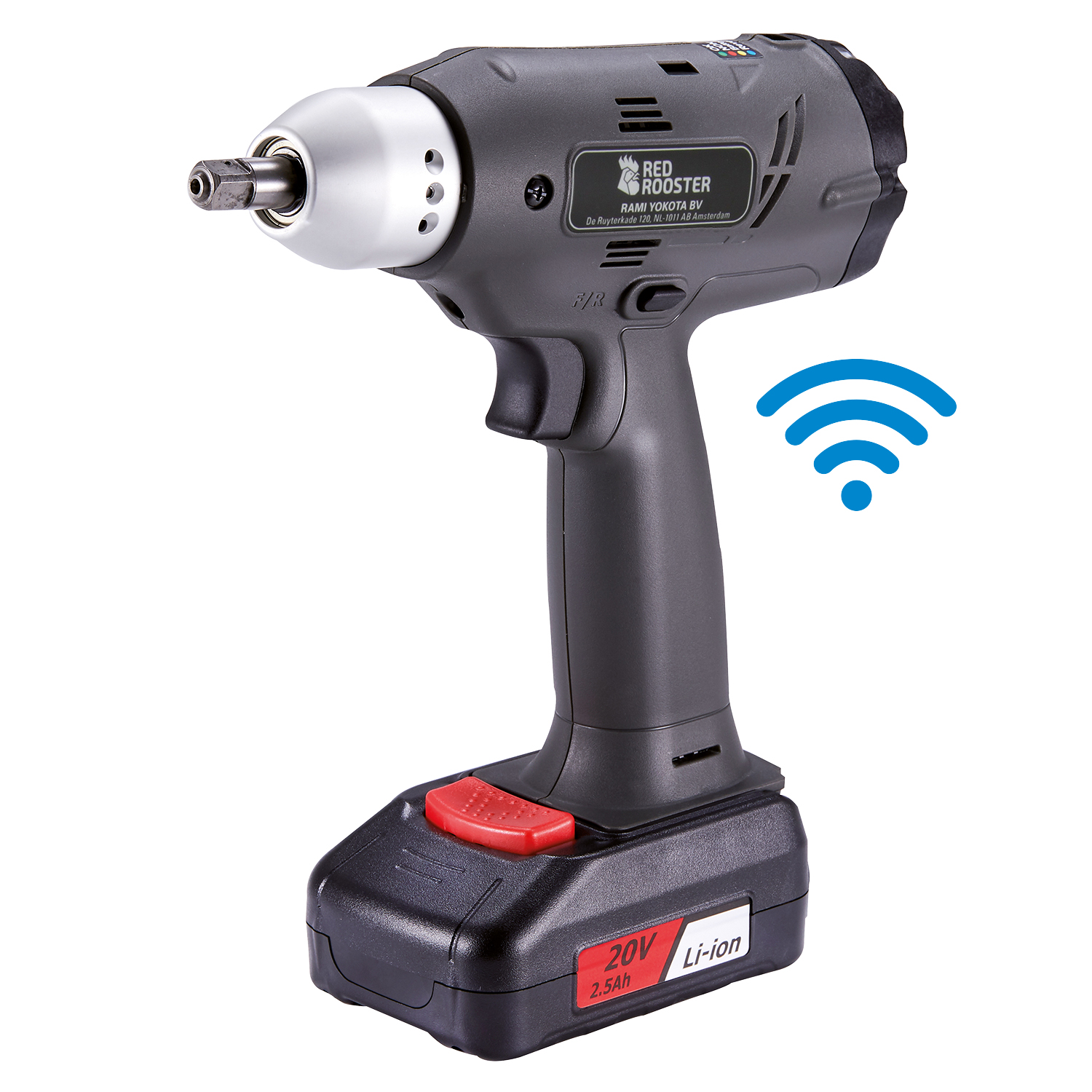

RED ROOSTER Cordless transducerized screwdriver. Very well suited for assembly applications where good torque accuracy is required. 8 programs can be set for both torque and angular displacement. The programs can be easily selected or programmed in a fixed sequence. Contactless trigger and forward / reverse switch for a long lifetime. Repeatability Cm/Cmk > 2 at +/- 7%.
Characteristics:
• Brushless motor
• 20 Volt Lithium-Ion battery
• LED status indicates OK - NOK - REVERSE - BATTERY LOW
• Tightening mode setting – Torque or Angle
• Programmable torque
• Programmable angle limits
• Programmable speed
• Group check / counting
• 8 programs including sequence
• Compact and light weight
• Tightening Data collection by WLAN
• Battery (2,5 Ah: BB200D-325; 5,0 Ah: BB200D-350) and charger (B84192B) to be ordered separately


Related products

DWL-B

2.4G/5.8G WLAN receiver

BB200D-325

20V 2.5Ah Battery, Li-ion

BB200D-350

20V 5.0Ah Battery, Li-ion

B84192B

18-20V Charger



Related accessories

D39SC180B-1

Suspension Bail

33116-B200D-01

Protection Cover

766-027-612

Side handle for BCP

61022-TH005

Tool Holder

33116-B200D-02

Protection Cover

61022-TH003

Tool Holder, diameter 58mm

33116-NPA-01

Protection Cover RRI-BCP



Specifications

Brand Red Rooster Industrial
Square Drive 3/8"
Bolt capacity (mm) 6
RPM 150 - 750
Torque (Nm) 4 - 12
Weight w/o battery (kg) 1,01

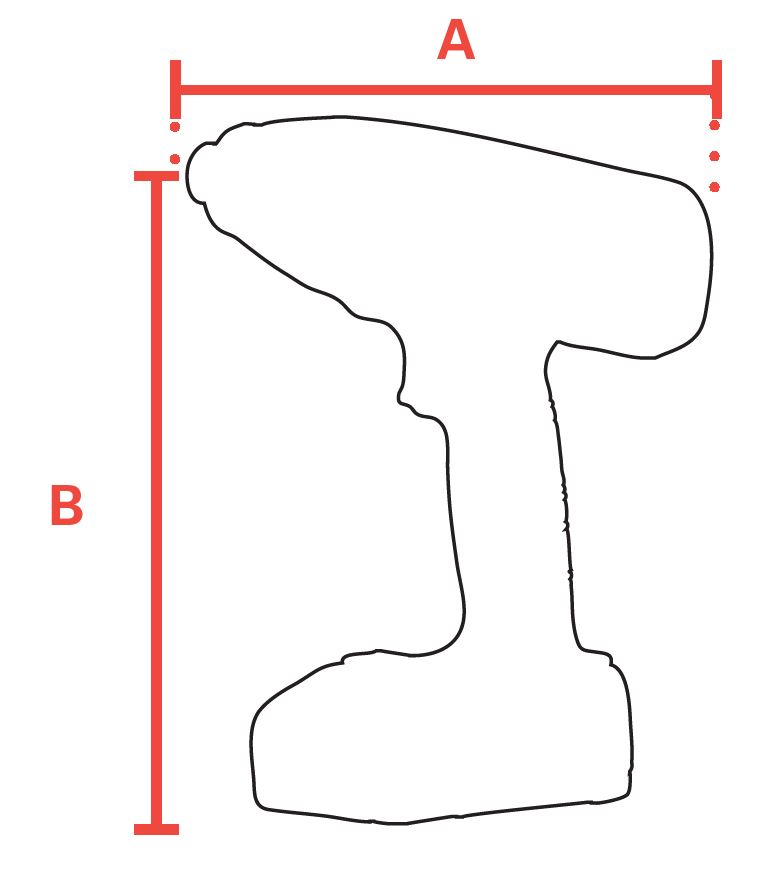

mm A 202,5
mm B 240,5
Battery voltage (Volt) 20
Battery type Li-ion….(Ah) 2,5 / 5,0
Safety standard EN ISO 11148-6
Sound standard ISO 15744
Sound pressure (dB(A)) < 75
Sound uncertainty (dB(A)) 3
EAN 8717981440399
