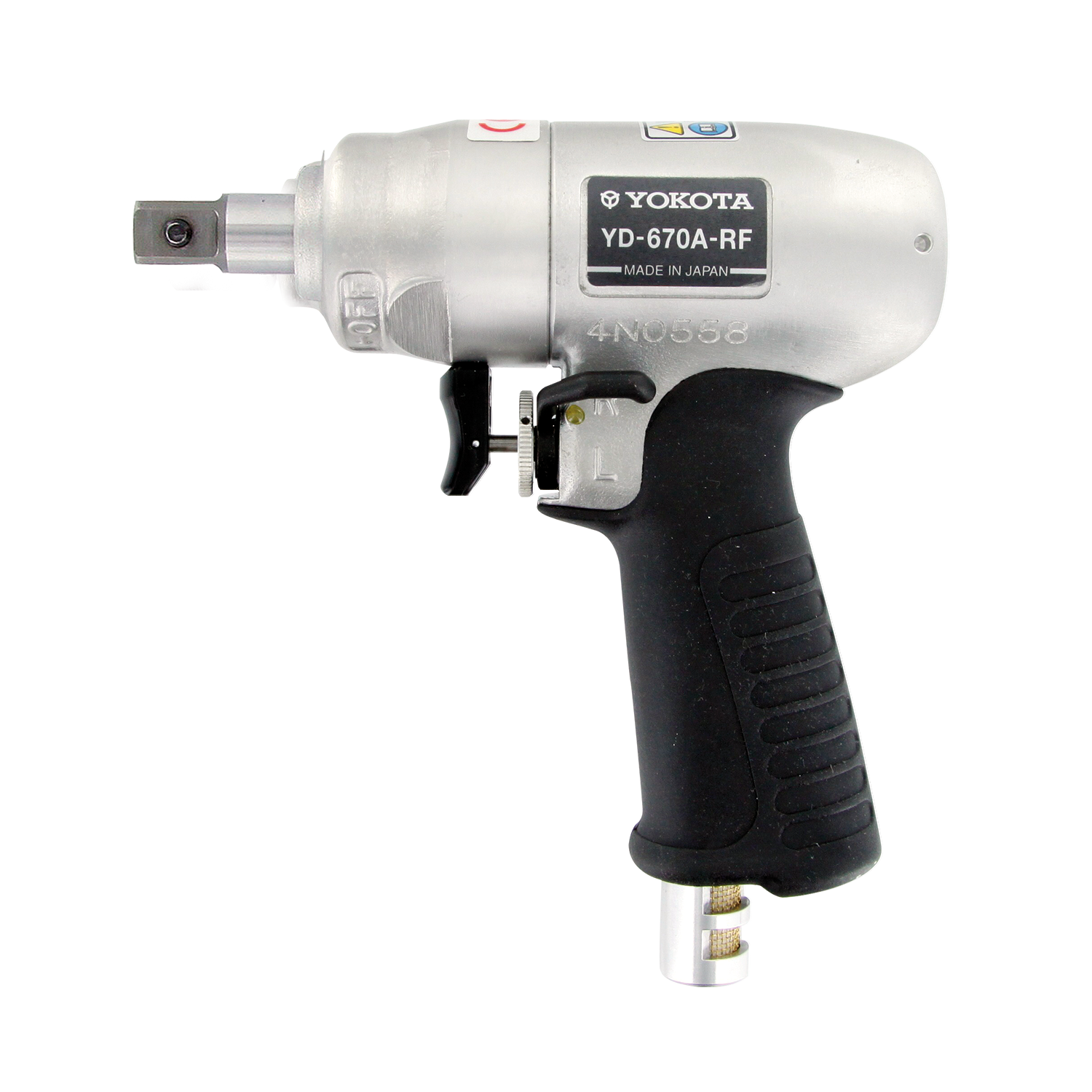

This Yokota impact wrench is developed for assembly in wood-working and furniture-industry. It has a 2-hammer clutch in oil bath for powerfull and silent operation.
Characteristics:
• Ergonomic design, well balanced
• Compact and lightweight
• Power adjustable in 4 positions
• Exhaust through isolated grip, with silencer
• Free of reaction forces
Related products
AC30A-F03E-B
Modular FRL Unit
Related accessories
2332-0029-00-00
Protector YD-670A-RF
61022-TH002
Tool Holder, diameter 47mm
ATLUB
Air Tool Oil, 1 litre
Specifications
| Brand | Yokota |
| Square Drive | 3/8" |
| Version | E |
| Bolt capacity (mm) | 6 |
| Impact mechanism | 2 Hammer |
| RPM | 7500 |
| Torque (Nm) | 90 |
| Force adjustment | R / L 4 pos. |
| Airconsumption (l/s) | 6,1 |
| Weight (kg) | 0,98 |
| Airconnection | PT 1/4" |
| Airpress max. (MPa) | 0,63 |
| mm A | 149 |
| mm B | 22 |
| Hosediameter (mm) | 6,5 |
| Safety standard | EN ISO 11148-6 |
| Vibration standard | EN ISO 28927-2 |
| Vibration value (m/s²) | 4,7 |
| Vibration uncertainty (m/s²) | 1 |
| Sound standard | ISO 15744 |
| Sound pressure (dB(A)) | 88 |
| Sound power (dB(A)) | 99 |
| Sound uncertainty (dB(A)) | 3 |
| EAN | 8717981403295 |
Manuals
| YD-670E-R-DE.pdf | Download |
| YD-670E-R-EN.pdf | Download |
| YD-670E-R-FI.pdf | Download |
| YD-670E-R-IT.pdf | Download |
| YD-670E-R-DA.pdf | Download |
| YD-670E-R-EL.pdf | Download |
| YD-670E-R-NO.pdf | Download |
| YD-670E-R-PL.pdf | Download |
| YD-670E-R-PT.pdf | Download |
| YD-670E-R-ES.pdf | Download |
| YD-670E-R-FR.pdf | Download |
| YD-670E-R-SK.pdf | Download |
| YD-670E-R-NL.pdf | Download |
| YD-670E-R-SV.pdf | Download |
| YD-670E-R - QR Card.pdf | Download |
