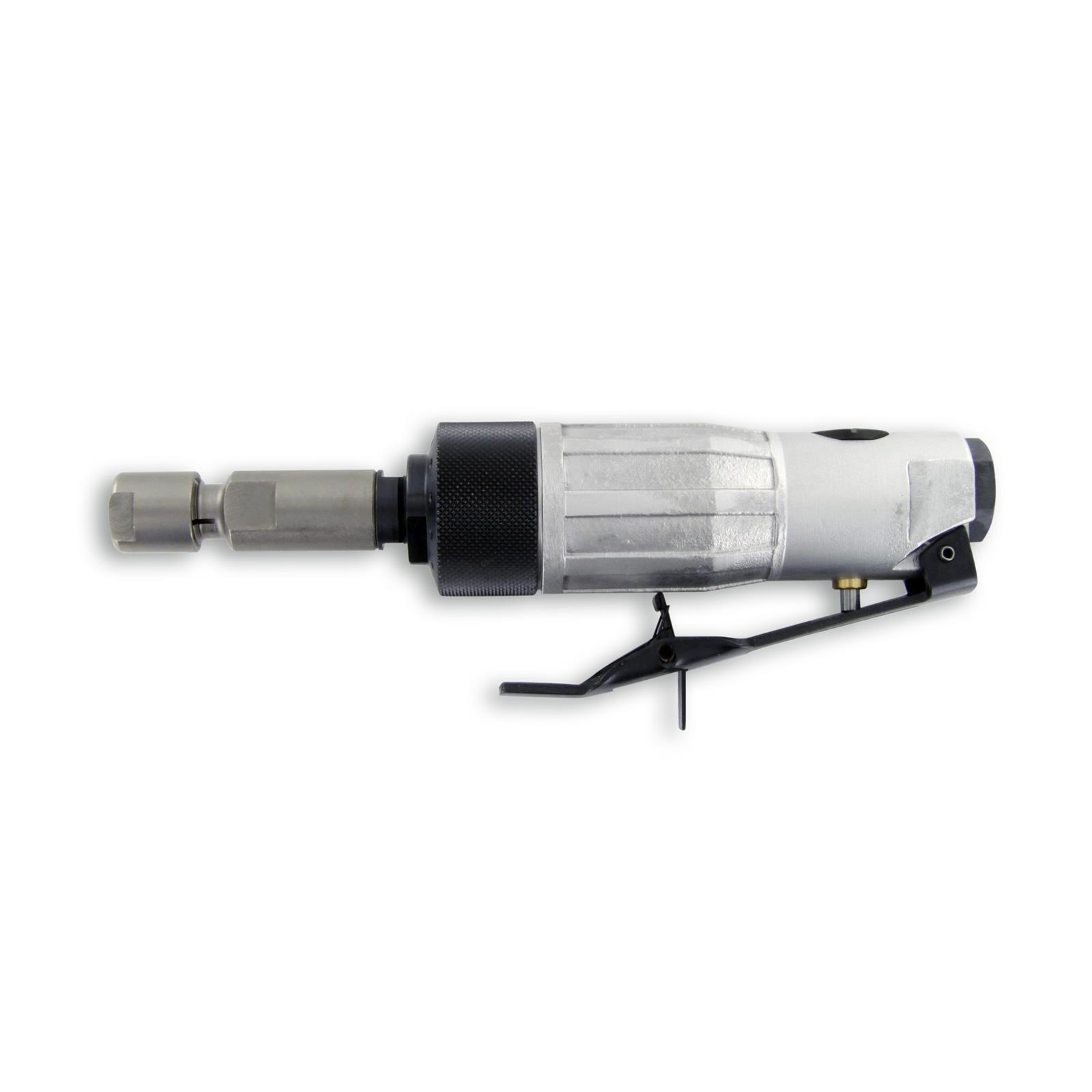

This die-grinder by Yokota is used with grinding wheels and burrs with 6mm collet chuck. Application area: Light dressing and fettling on fabrications and die setting sets.
Characteristics:
* Ergonomic design, well balanced
* Compact and lightweight
* Low vibrationlevel
Related products
AC30A-F03E-B
Modular FRL Unit
Related accessories
1001-0659-00-01
Adaptor 3mm for 6mm Chuck
1013-0661-01-99
Collet chuck 6mm MG-OA
ATLUB
Air Tool Oil, 1 litre
Specifications
| Brand | Yokota |
| RPM | 25000 |
| Airconsumption (l/s) | 6,2 |
| Weight (kg) | 0,45 |
| Airconnection | PT 1/4" |
| Airpress max. (MPa) | 0,63 |

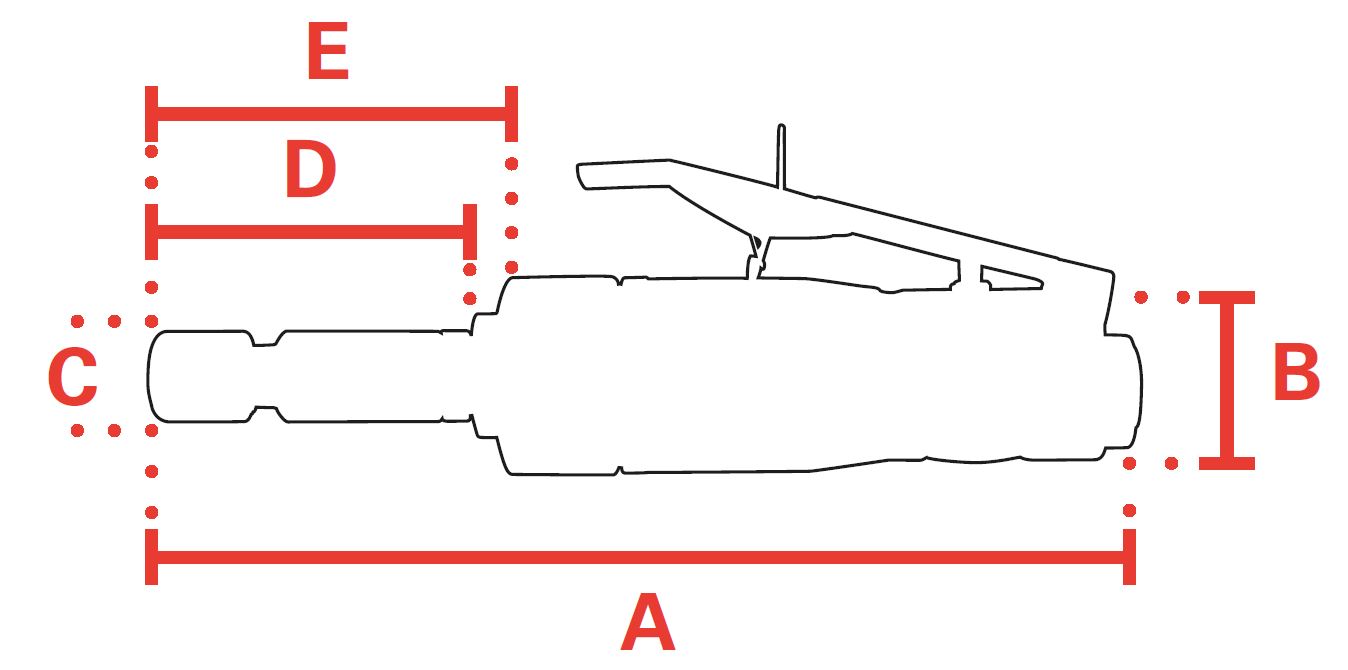

| mm A | 170 |
| mm B | 29 |
| mm C | 15 |
| mm D | 55 |
| mm E | 62 |
| Hosediameter (mm) | 6,5 |
| Collet chuck (mm) | 6 |
| Power (kW) | 0,30 |
| Wheel size (mm) | 20 |
| Safety standard | EN ISO 11148-7 |
| Vibration standard | EN ISO 28927-4 |
| Vibration value (m/s²) | < 2,5 |
| Vibration uncertainty (m/s²) | 1 |
| Sound standard | ISO 15744 |
| Sound pressure (dB(A)) | 80 |
| Sound power (dB(A)) | 91 |
| Sound uncertainty (dB(A)) | 3 |
| EAN | 8717981000135 |
