This fluxchipper by Toku has a quick-change chisel retainer. Extremely high impactfrequency. For industrial use, chipping of welding seams.
Characteristics:
• Ergonomic design, well balanced
• Compact and lightweight
• Low on noise and vibrationlevels
Related products
CB40906180
Chisel Bend TL=180 W=50
CB40904180
Chisel Bend TL=180 W=35
CB40901180
Moil Point TL=180
CB40903180
Wide Chisel TL=180 W=35
CB40902180
Flat Chisel TL= 180 B=19
CB40905180
50Mm Wide Chisel,L=180Mm
Specifications
| Brand | Toku |
| Airconsumption (l/s) | 4,1 |
| Weight (kg) | 1,5 |
| Shank size (mm) | V^12,7 x R^9,5 |
| Airconnection | PT 1/4" |
| Airpress max. (MPa) | 0,63 |

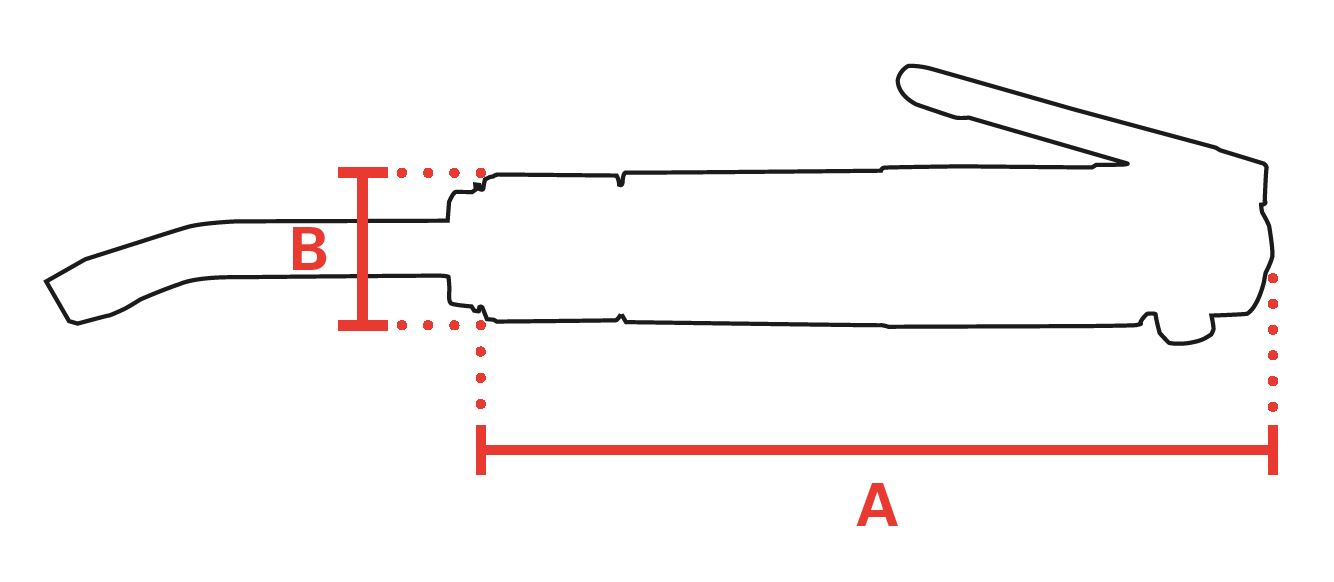

| mm A | 189 |
| mm B | 40 |
| Stroke (mm) | 10 |
| Strokes per minute | 12000 |
| Energy (J/Stroke) | 1,1 |
| Hosediameter (mm) | 6,5 |
| Piston (mm) | 20 |
| Safety standard | EN ISO 11148-4 |
| Vibration standard | EN ISO 28927-9 |
| Vibration value (m/s²) | 28,7 |
| Vibration uncertainty (m/s²) | 0,79 |
| Sound standard | ISO 15744 |
| Sound pressure (dB(A)) | 90 |
| Sound power (dB(A)) | 101 |
| Sound uncertainty (dB(A)) | 3 |
| EAN | 8717981148370 |
Manuals
| TFC-200F-FR.pdf | Download |
| TFC-200F-PL.pdf | Download |
| TFC-200F-ES.pdf | Download |
| TFC-200F-DE.pdf | Download |
| TFC-200F-FI.pdf | Download |
| TFC-200F-IT.pdf | Download |
| TFC-200F-DA.pdf | Download |
| TFC-200F-SV.pdf | Download |
| TFC-200F-SK.pdf | Download |
| TFC-200F-EL.pdf | Download |
| TFC-200F-PT.pdf | Download |
| TFC-200F-NL.pdf | Download |
| TFC-200F-NO.pdf | Download |
| TFC-200F-EN.pdf | Download |
| TFC-200F - QR Card.pdf | Download |
