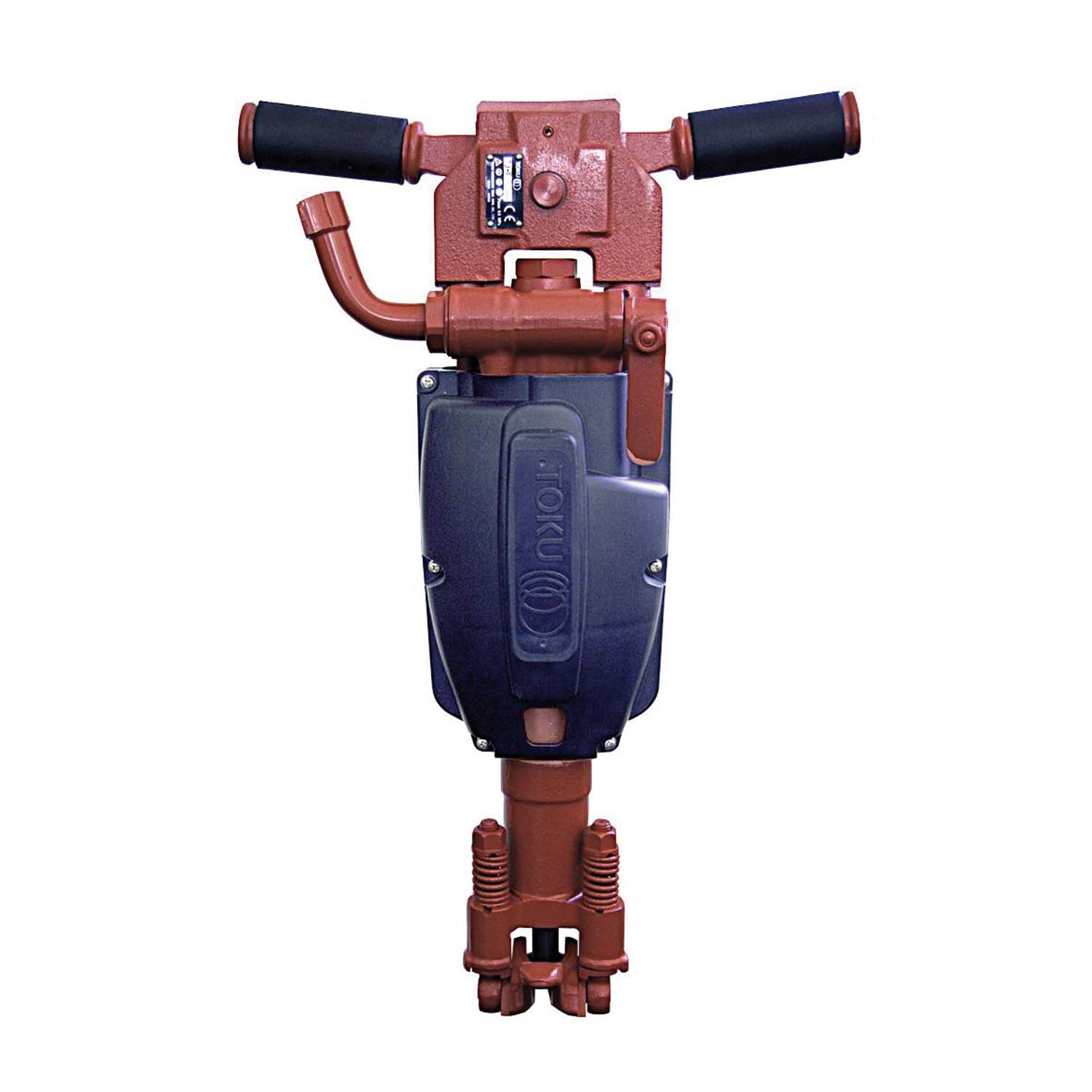

This vibrationreduced rockdruill of Toku has a latch as retainer. Applicable for time-consuming jobs. High blow-energy. To be used in construction sites and renovations.
Characteristics:
* Ergonomic design, well balanced
* Compact quality tool
* Equipped with exhaust muffler
Specifications
| Brand | Toku |
| RPM | 200 |
| Airconsumption (l/s) | 41 |
| Weight (kg) | 19 |
| Shank size (mm) | H^22 x 82 |
| Airconnection | PT 3/4" |
| Airpress max. (MPa) | 0,63 |

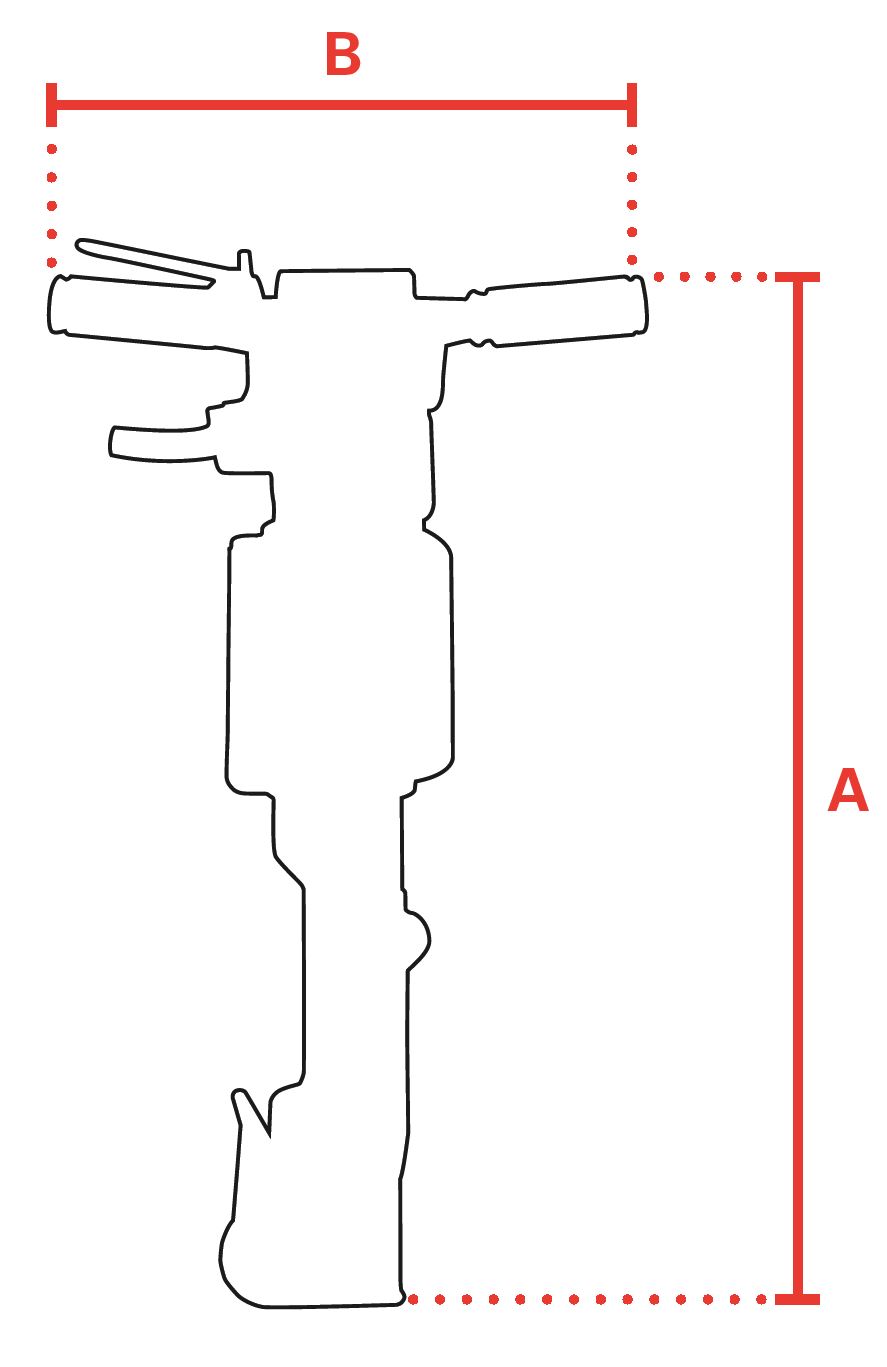

| mm A | 610 |
| mm B | 585 |
| Stroke (mm) | 49 |
| Strokes per minute | 2400 |
| Energy (J/Stroke) | 72 |
| Hosediameter (mm) | 19 |
| Piston (mm) | 68 |
| Safety standard | EN ISO 11148-5 |
| Vibration standard | EN ISO 28927-10 |
| Vibration value (m/s²) | 10,3 |
| Vibration uncertainty (m/s²) | 1,51 |
| Sound standard | ISO 15744 |
| Sound pressure (dB(A)) | 109 |
| Sound power (dB(A)) | 120 |
| Sound uncertainty (dB(A)) | 3 |
| EAN | 8717981192946 |
Manuals
| TJ-20SV SBS-FR.pdf | Download |
| TJ-20SV SBS-EN.pdf | Download |
| TJ-20SV SBS-NL.pdf | Download |
| TJ-20SV SBS-DE.pdf | Download |
| TJ-20SV SBS - QR Card.pdf | Download |
