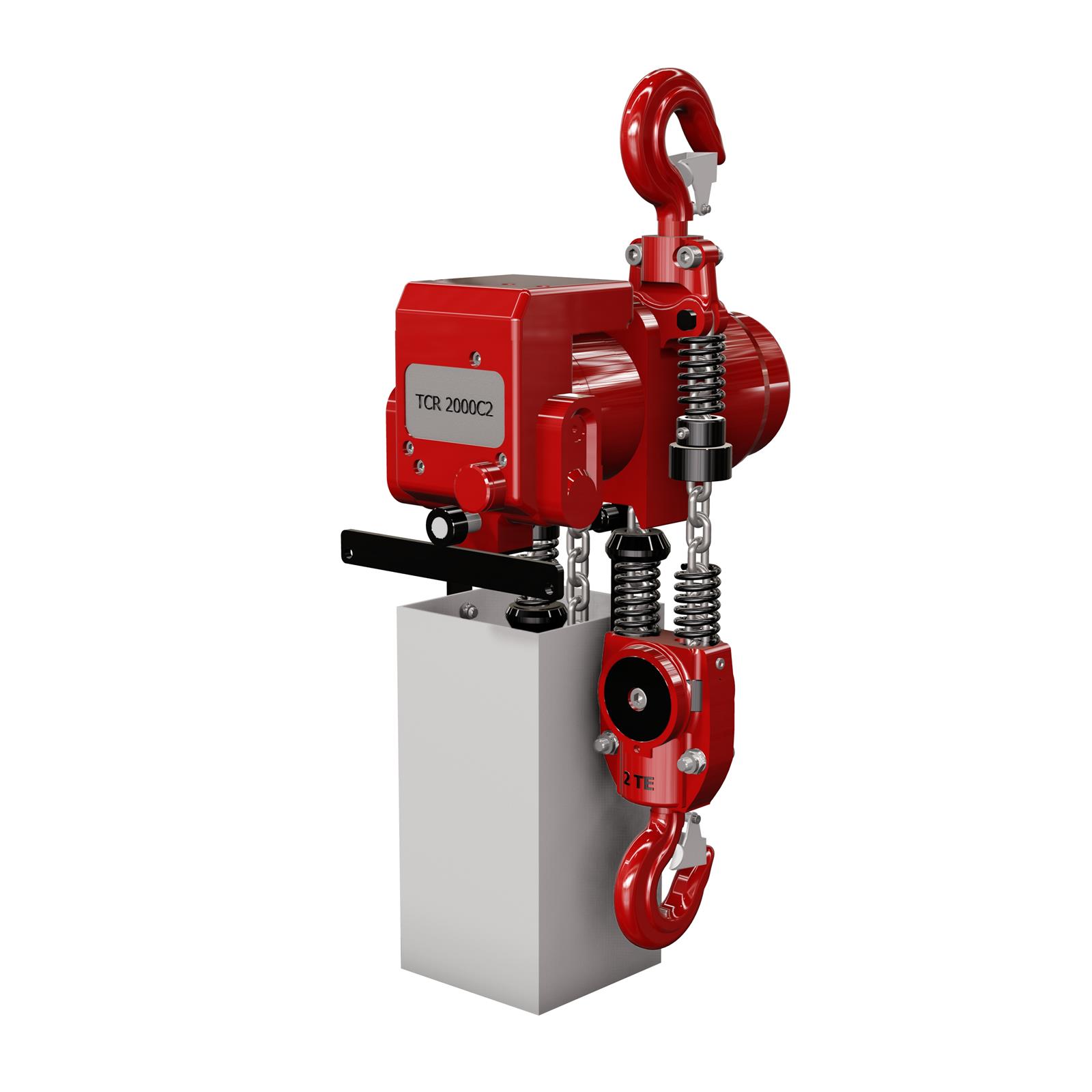

These RED ROOSTER Air Chain Hoists are especially developed for heavy industrial use.
Robust cast steel body. Valveblock same for all models, less spare parts. Standard with load limiter.
Characteristics:
* Precise variable speed control (cord - and pendant control)
* Optimum control of the load, very precise positioning
* Compact design
* Endstop system
* Load limiter built-in without loss of headroom
* Cord control or pendant control
* Quiet, low noise level, silenced
* Air pressure 0,4 - 0,63 MPa (4 - 6,3 Bar)
Related products
AC40-F04DM-8-B
Modular FRL Unit
7,1X21RS60
Chain RSA60 DIN 5684-6
7,1X21RTS
Chain RTS EN 818-7
Specifications
| Brand | Red Rooster |
| Number of chain falls | 2 |
| Lowering speed full load (m/min) | 4,7 |
| Lowering speed 0-load (m/min) | 3,3 |
| Weight incl. 3m lift (kg) | 40 |
| Lifting speed full load (m/min) | 2,9 |
| Lifting speed 0-load (m/min) | 5,3 |
| Chain weight (kg/m) | 2,2 |
| Chain (mm) | 7,1 x 21 |
| Chainbag/Chainbucket | + |
| Loadlimiter | + |
| Airconnection | 1/2" BSPT |
| Airpress max. (MPa) | 0,63 |
| Airconsumption fullload (l/s) | 23,3 |

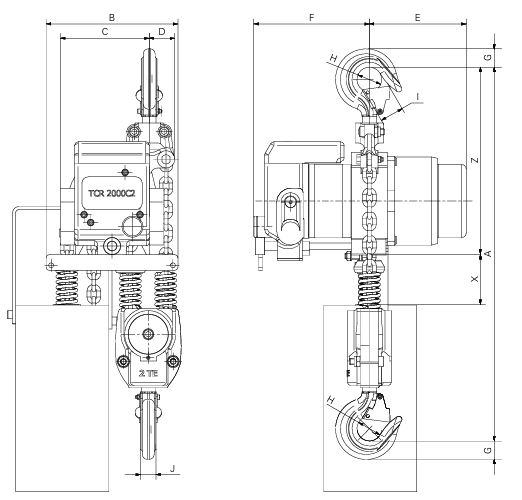

| mm A | 595 |
| mm B | 212 |
| mm C | 166 |
| mm D | 46 |
| mm E | 156 |
| mm F | 186 |
| mm G | 37 |
| mm H | 45 |
| mm I | 29 |
| mm J | 30 |
| mm X | 100 |
| mm Z | 280 |
| Hosediameter (mm) | 13 |
| SMC Airtreatment unit | AC40-F04DM-8-B |
| Capacity (kg) | 2000 |
| EAN | 8717981149896 |
