The Yokota dowel pin puller is used in matrix, casting and press-moulding industries, for setting and removing dowel pins in moulds or presses. The dowel pin puller is an easily operated air tool and can simplify the pulling or hammering operation
of the threaded dowel pins, saving time and improving working efficiency.
Related accessories
6503-0022-00-13
Hanger Bolt M8 X 50L
6503-0022-00-11
Hanger Bolt M12X150L
6503-0022-00-10
Hanger Bolt M12X100L
6503-0022-00-05
Hanger Bolt M8 X150L
6503-0022-00-09
Hanger Bolt M10X200L
6503-0022-00-06
Hanger Bolt M8 X200L
6503-0022-00-12
Hanger Bolt M12X200L
6503-0022-00-14
Hanger Bolt M10X 50L
6503-0022-00-08
Hanger Bolt M10X150L
6503-0022-00-07
Hanger Bolt M10X100L
6503-0022-00-15
Hanger Bolt M12X 50L
6503-0022-00-04
Hanger Bolt M8 X100L
Specifications
| Brand | Yokota |
| Airconsumption (l/s) | 4,3 |
| Weight (kg) | 2,10 |
| Capacity pin (mm) | 20 |
| Airconnection | PT 1/4" |
| Airpress max. (MPa) | 0,63 |

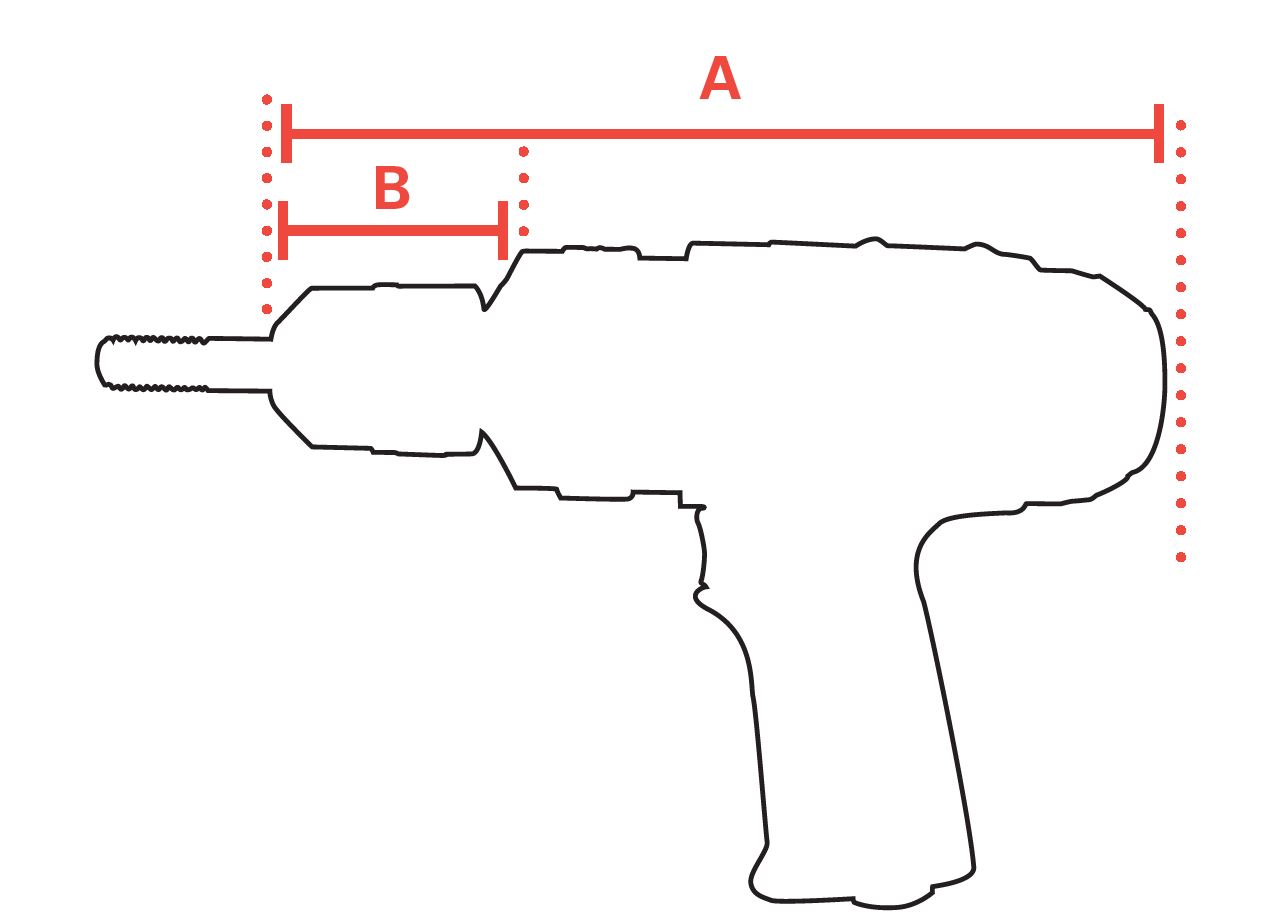

| mm A | 195 |
| mm B | 82 |
| Stroke (mm) | 36 x 33 |
| Strokes per minute | 2700 |
| Hosediameter (mm) | 6,5 |
| Safety standard | EN ISO 11148-4 |
| Vibration standard | EN ISO 28927-9 |
| Vibration value (m/s²) | 8 |
| Vibration uncertainty (m/s²) | 1 |
| Sound standard | ISO 15744 |
| Sound pressure (dB(A)) | 95 |
| Sound power (dB(A)) | 106 |
| Sound uncertainty (dB(A)) | 3 |
| EAN | 8717981147908 |
