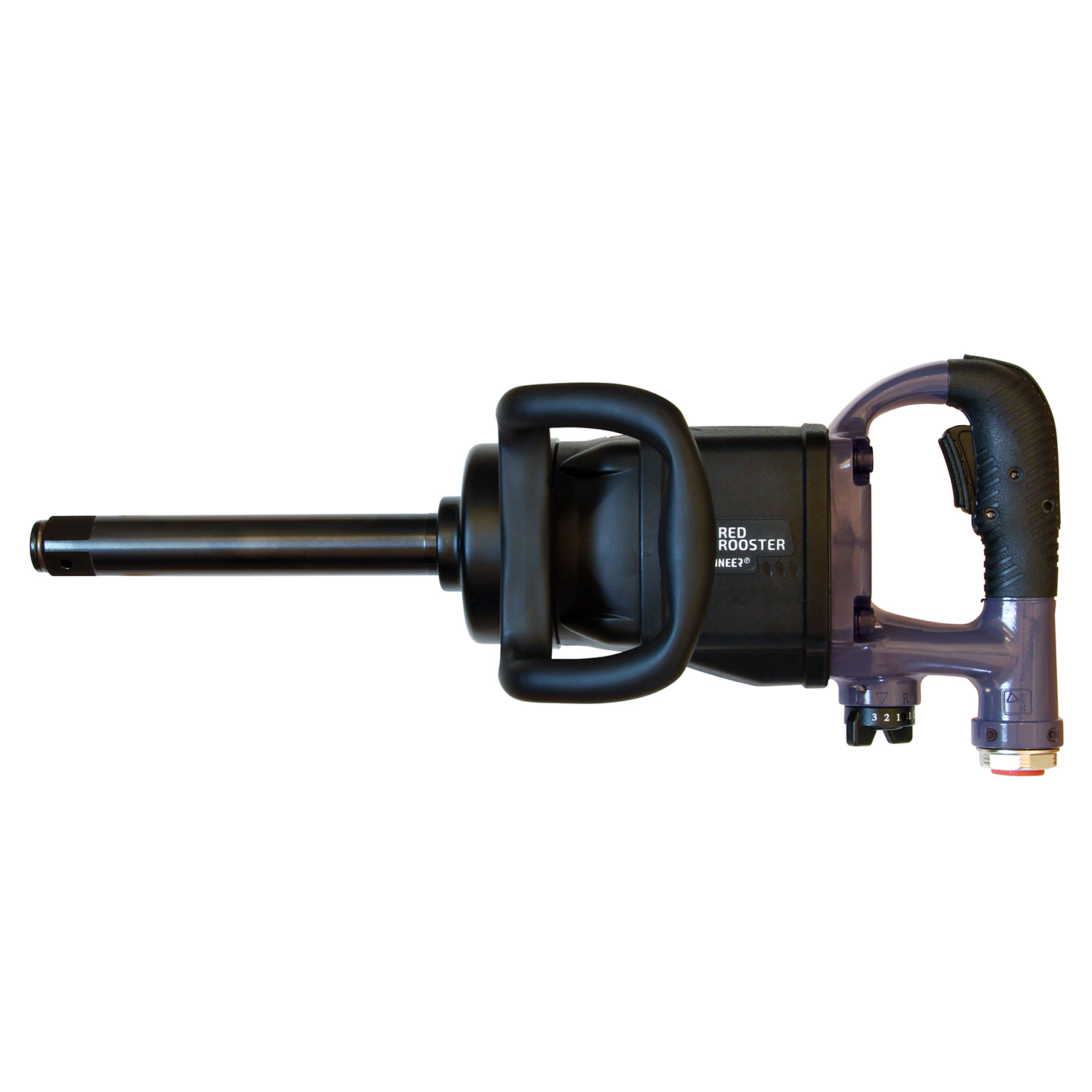

This impact wrench by RED ROOSTER has an excellent weight/power ratio. The RRI-3700ML is developed for assembly- and disassembly applications for wheel bolts and nuts. The revolutionary Mechoneer impact mechanism gives high energy levels per impact. The Mechoneer impact mechanism combines the hitting strength of a Twin Hammer with the durability advantage of the closed hammer mechanism. On top of that, it is greased fully, which results in low vibration levels and low sound pressure. The tool is suitable for industrial use. The high RPM air motor builds up the desired torque levels very fast. With its long anvil this tool is especially well suited for the tire service to trucks and busses.
Breakloose torque: 3.390 Nm.
Characteristics:
• Ergonomic design, well balanced
• Compact design
• Mechoneer Impact mechanism
• Power adjustable, 3 positions, integrated in Forward/Reverse button
• Dead handle 360 degrees adjustable
Related products
DO0100-1-007
Socketset Long 1" 7-Parts
AC40A-F04-D
Modular FRL unit
Related accessories
Specifications
Brand | Red Rooster Industrial |
Square Drive | 1" |
Version | R+H |
Bolt capacity (mm) | 36 |
Impact mechanism | Mechoneer |
RPM | 6000 |
Torque (Nm) | 2700 |
Force adjustment | R/L 3 Pos |
Airconsumption (l/s) | 20 |
Weight (kg) | 9,2 |
Airconnection | PT 1/2" |
Airpress max. (MPa) | 0,63 |

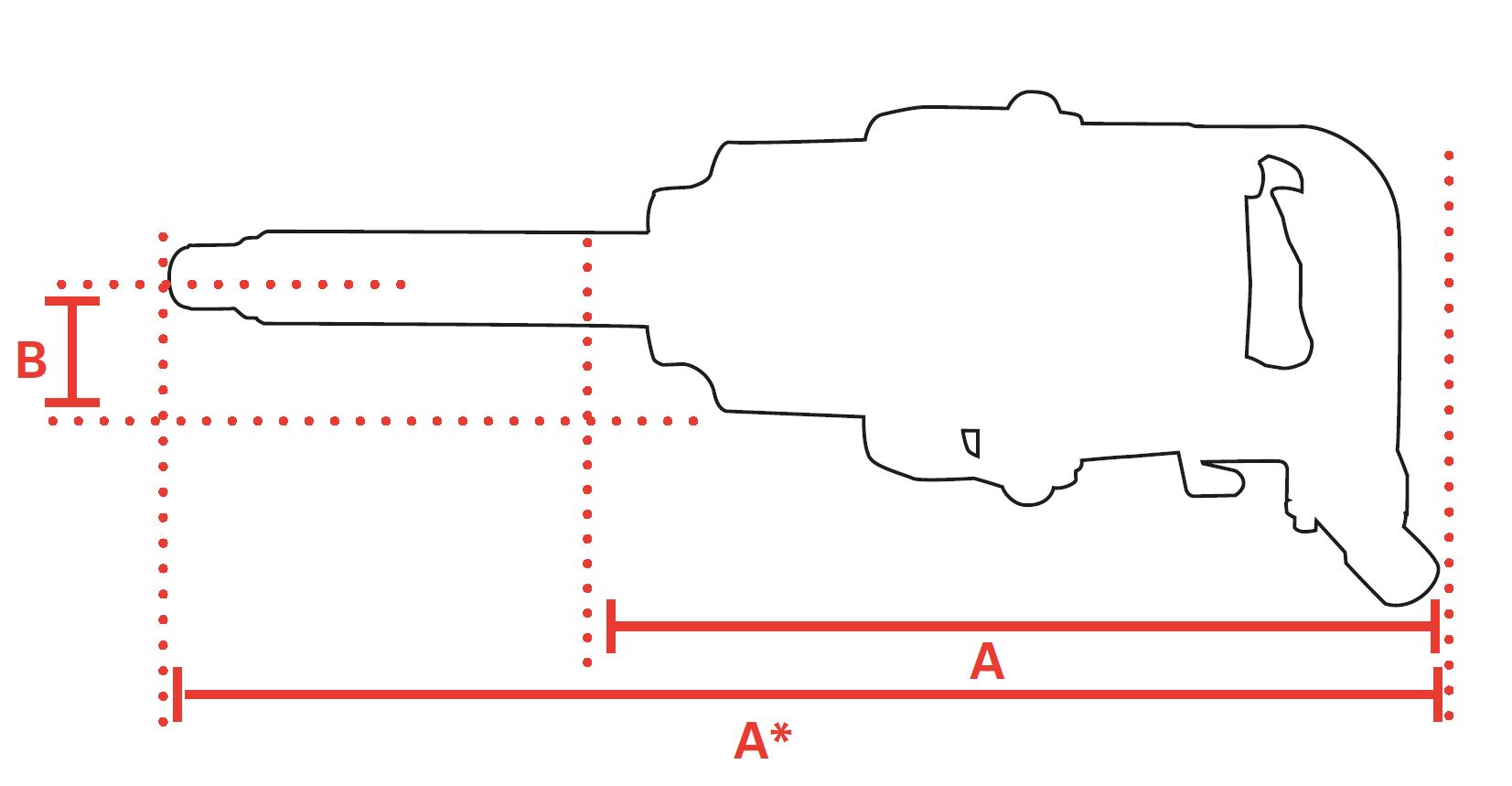

mm B | 62 |
Hosediameter (mm) | 13 |
mm A* | 500 |
Safety standard | EN ISO 11148-6 |
Vibration standard | EN ISO 28927-2 |
Vibration value (m/s²) | 12,7 |
Vibration uncertainty (m/s²) | 1,75 |
Sound standard | iSO 15744 |
Sound pressure (dB(A)) | 108 |
Sound power (dB(A)) | 119 |
Sound uncertainty (dB(A)) | 3 |
EAN | 8717981414994 |
