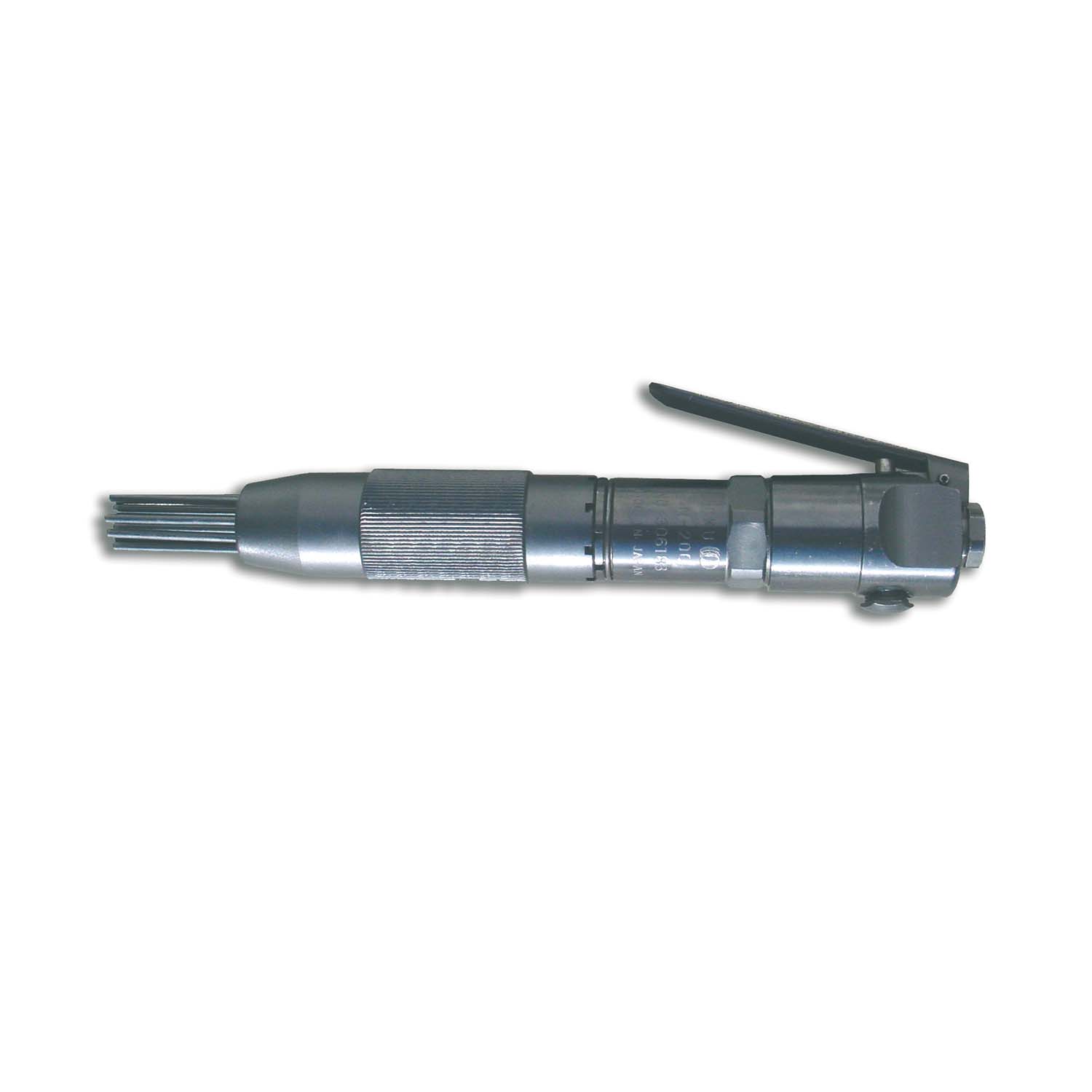

This Toku needle-scaler is developed for operations of longer use, has an extremely high frequency and is meant for industrial use.
Characteristics:
* Good ergonomics, well balanced
* For lefthanded as well as righthanded use
* Easy exchange of needles
Related accessories
Y3-06-12-210
Needle 3Mmx125L
Specifications
| Brand | Toku |
| Airconsumption (l/s) | 4,1 |
| Weight (kg) | 1,12 |
| Number 2 mm | 21 |
| Number 3 mm | 12 |
| Airconnection | PT 1/4" |
| Airpress max. (MPa) | 0,63 |

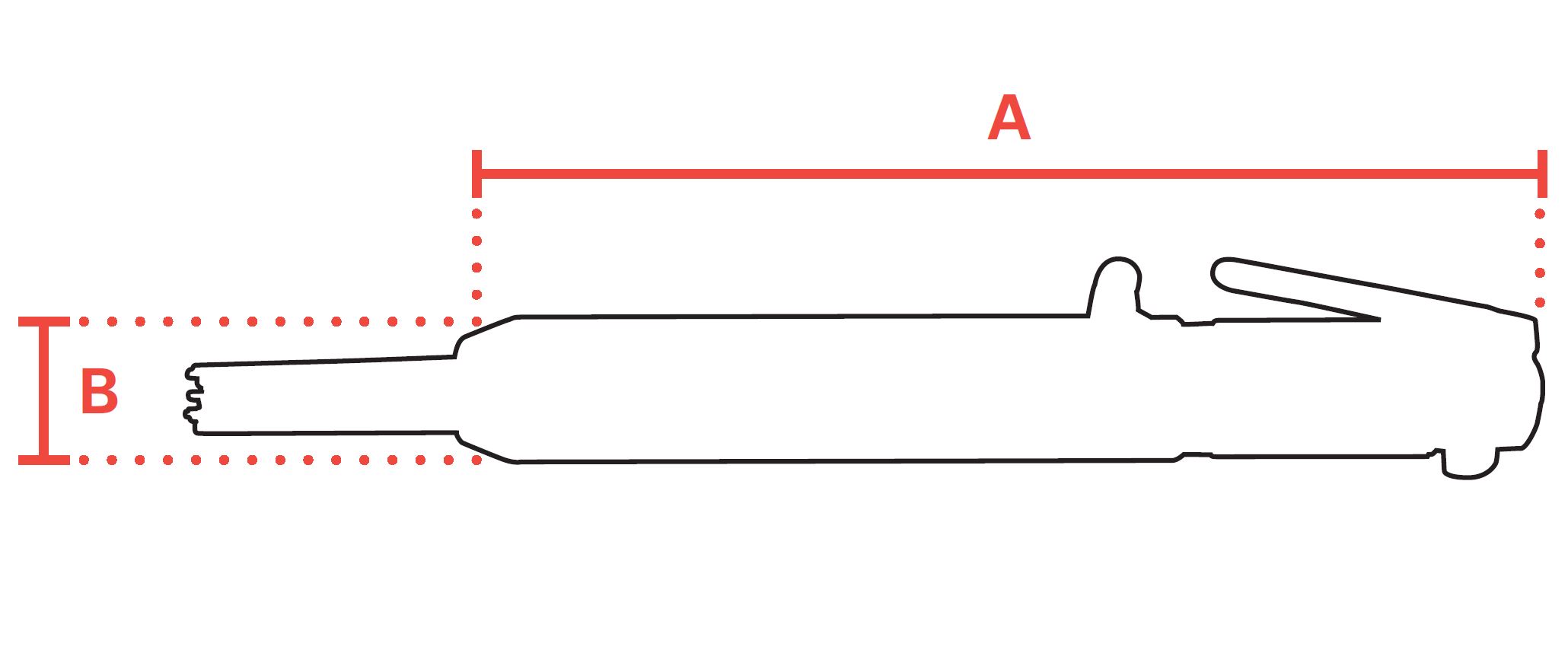

| mm A | 273 |
| mm B | 36 |
| Stroke (mm) | 10,0 |
| Strokes per minute | 12000 |
| Hosediameter (mm) | 6,5 |
| Piston (mm) | 20,0 |
| Safety standard | EN ISO 11148-4 |
| Vibration standard | EN ISO 28927-9 |
| Vibration value (m/s²) | 13,3 |
| Vibration uncertainty (m/s²) | 0,69 |
| Sound standard | ISO 15744 |
| Sound pressure (dB(A)) | 92 |
| Sound power (dB(A)) | 103 |
| Sound uncertainty (dB(A)) | 3 |
| EAN | 8717981062553 |
Manuals
| TFC-N200-EN.pdf | Download |
| TFC-N200-ES.pdf | Download |
| TFC-N200-DE.pdf | Download |
| TFC-N200-DA.pdf | Download |
| TFC-N200-NL.pdf | Download |
| TFC-N200-EL.pdf | Download |
| TFC-N200-IT.pdf | Download |
| TFC-N200-SK.pdf | Download |
| TFC-N200-NO.pdf | Download |
| TFC-N200-PT.pdf | Download |
| TFC-N200-FR.pdf | Download |
| TFC-N200-SV.pdf | Download |
| TFC-N200-PL.pdf | Download |
| TFC-N200-FI.pdf | Download |
| TFC-N200 - QR Card.pdf | Download |
