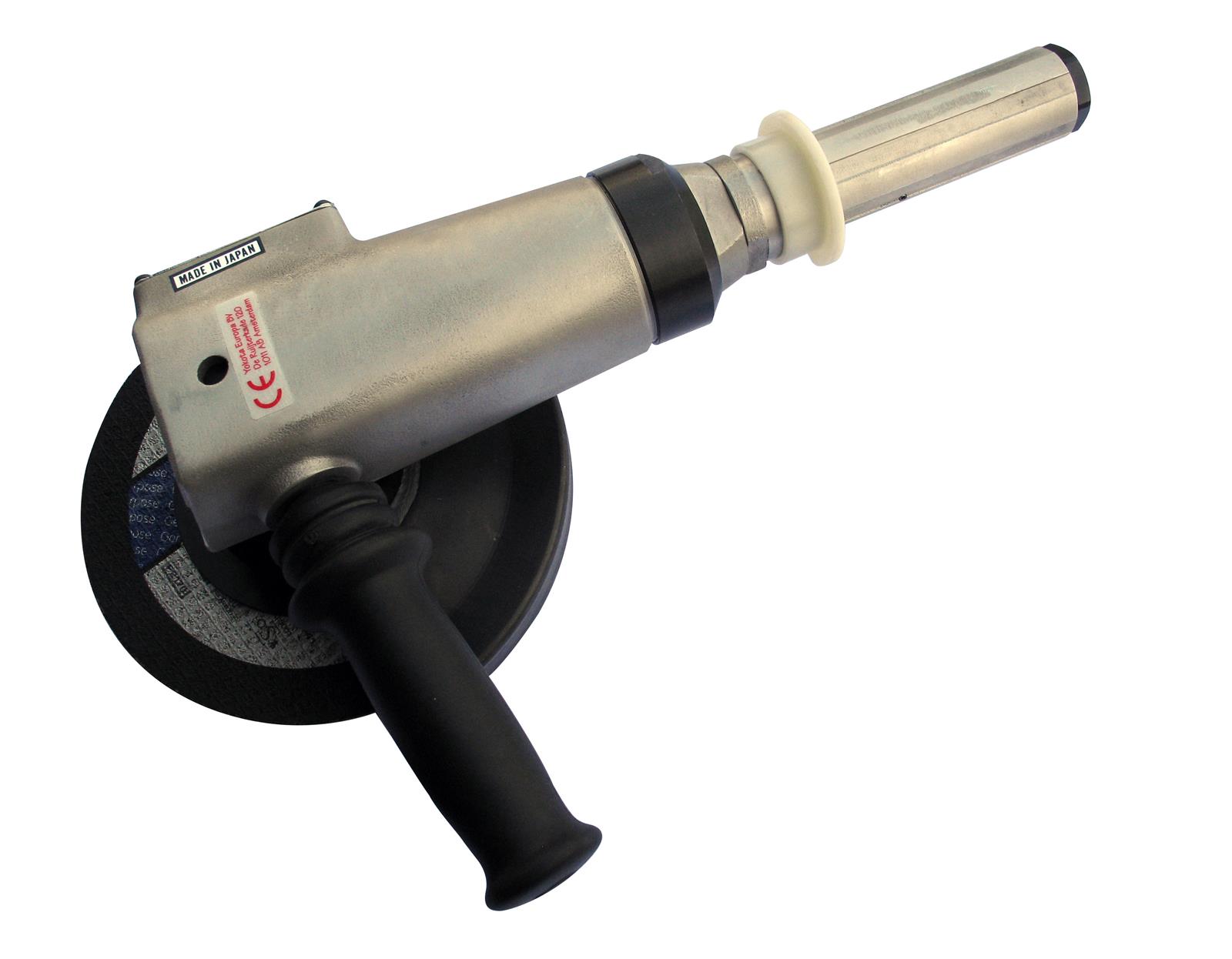

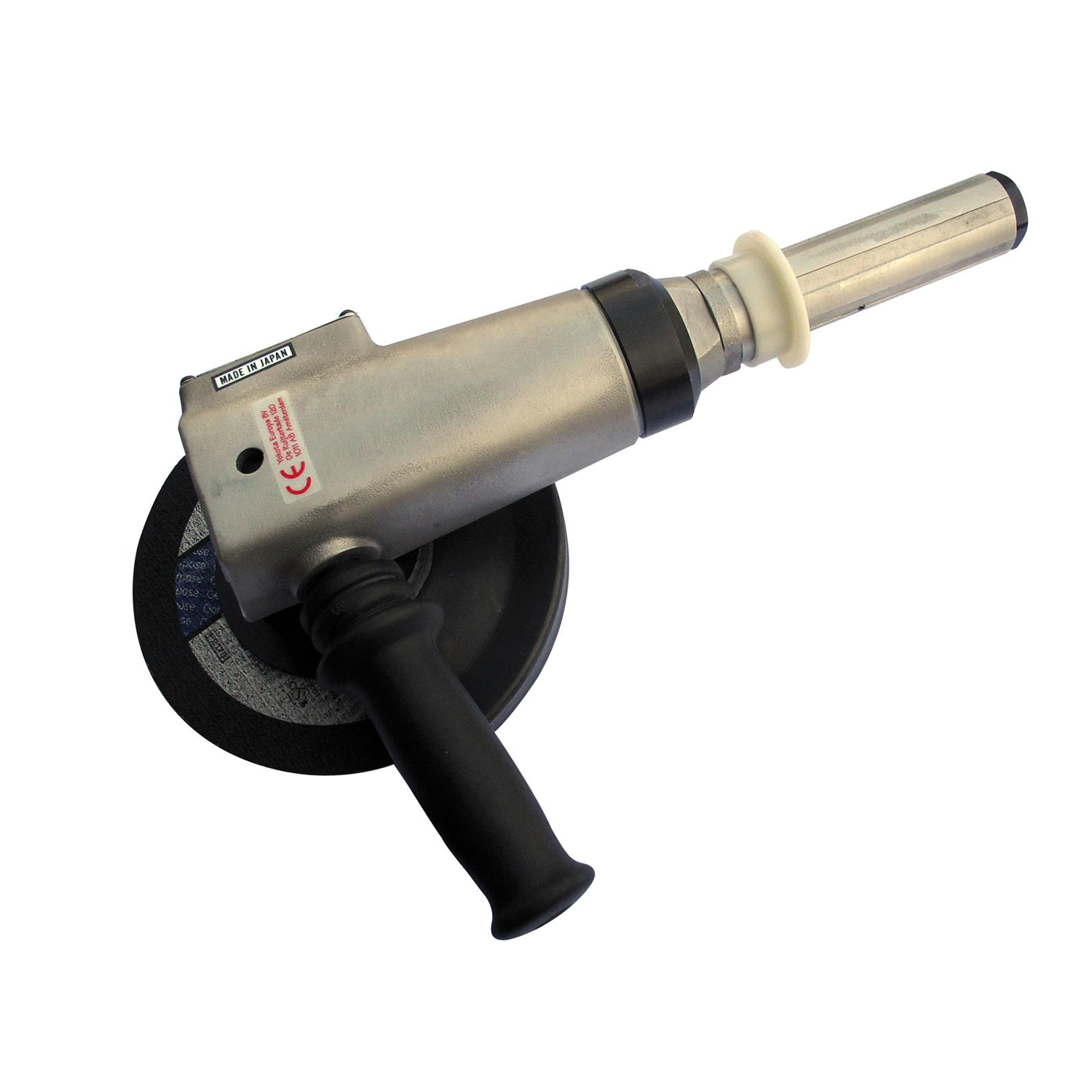

This angled grinder by Yokota is used for grinding and cutting. Very high quality level. The grinder has an integrated speed-setting regulator for maximum safety and optimal speed for best material removal.
Characteristics:
* Ergonomic design, well balanced
* Compact and lightweight
* For cutting and grinding purposes
* Exhaust silenced
* Vibrationreduced deadhandle
Related products
AC30A-F03E-B
Modular FRL Unit
Related accessories
1508-0655-00-00
Outer Wheel Screw
9310-3006-00-99
Rubber Pad (178) With Flange
1508-0653-00-03
Inner Flange
1407-0013-00-11
Dead Handle Vibration Red.
8100-4003-00-01
Hook Wrench
9310-3006-00-00
Rubber pad G-70/7VC-6500/7VC-8500
1508-0654-05-05
Pad Flange
1508-0654-00-01
Outer Flange
1508-0653-01-02
Inner Flange
1422-0653-00-99
Inner Flange
ATLUB
Air Tool Oil, 1 litre
8100-5002-00-00
Twin Wrench G70EF/7VC-6500/7VC-8500
1508-0654-00-02
Outer Flange
Specifications
| Brand | Yokota |
| RPM | 8500 |
| Airconsumption (l/s) | 16,7 |
| Weight (kg) | 2,9 |
| Airconnection | PT 3/8" |
| Airpress max. (MPa) | 0,63 |

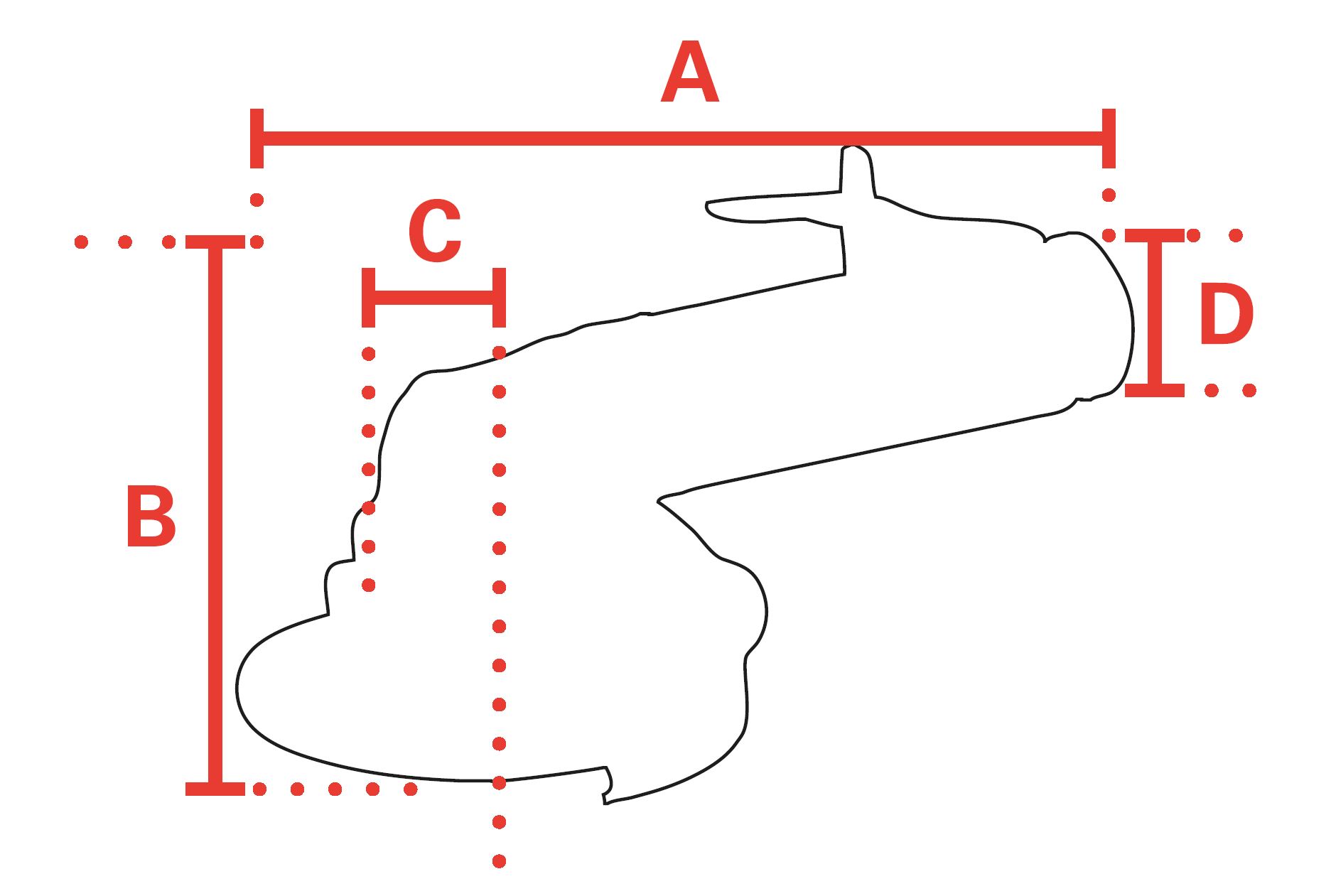

| mm A | 341 |
| mm B | 107 |
| mm C | 37 |
| mm D | 60 |
| Hosediameter (mm) | 13 |
| Spindle | 5/8" |
| Power (kW) | 1,12 |
| Wheel size (mm) | 180 x (1,6 - 8) x 22,2 |
| Safety standard | EN ISO 11148-7 |
| Vibration standard | EN ISO 28927-1 |
| Vibration value (m/s²) | 2,7 |
| Vibration uncertainty (m/s²) | 1 |
| Sound standard | ISO 15744 |
| Sound pressure (dB(A)) | 85 |
| Sound power (dB(A)) | 96 |
| Sound uncertainty (dB(A)) | 3 |
| EAN | 8717981000098 |
