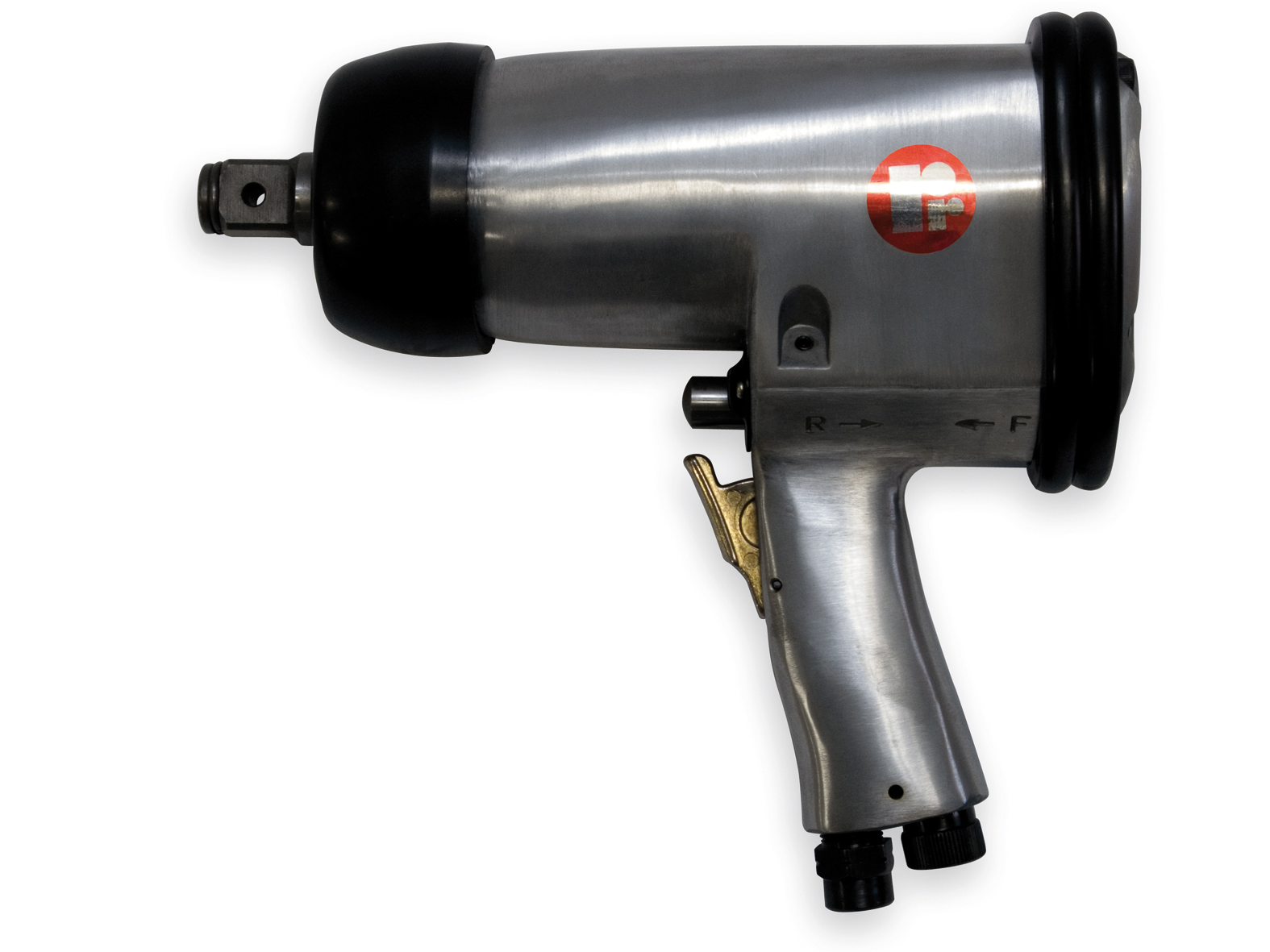

This RED ROOSTER Impact Wrench is suitable for the Automotive Aftermarket. The RR-20PN has a good quality for a very low price. This tool has a very simple designed one-hammer clutch.
Characteristics:
• Ergonomic design, well balanced
• Compact and lightweight
• Clutch: Rocking Dog
• Adjustable power, stepless
Related products
DO605421001
Impact Socket Set 3/4" deep 10p
AC40A-F04-D
Modular FRL unit
DO605401001
Socketset 3/4" 10-Parts
Related accessories
DOESR-1
Ret Ring
Specifications
| Brand | Red Rooster |
| Square Drive | 3/4" |
| Version | R+H |
| Bolt capacity (mm) | 20 |
| Impact mechanism | 1-Hammer |
| RPM | 4800 |
| Torque (Nm) | 720 |
| Force adjustment | R/L - Stepless |
| Airconsumption (l/s) | 10,5 |
| Weight (kg) | 4,6 |
| Airconnection | PT 1/4" |
| Airpress max. (MPa) | 0,63 |

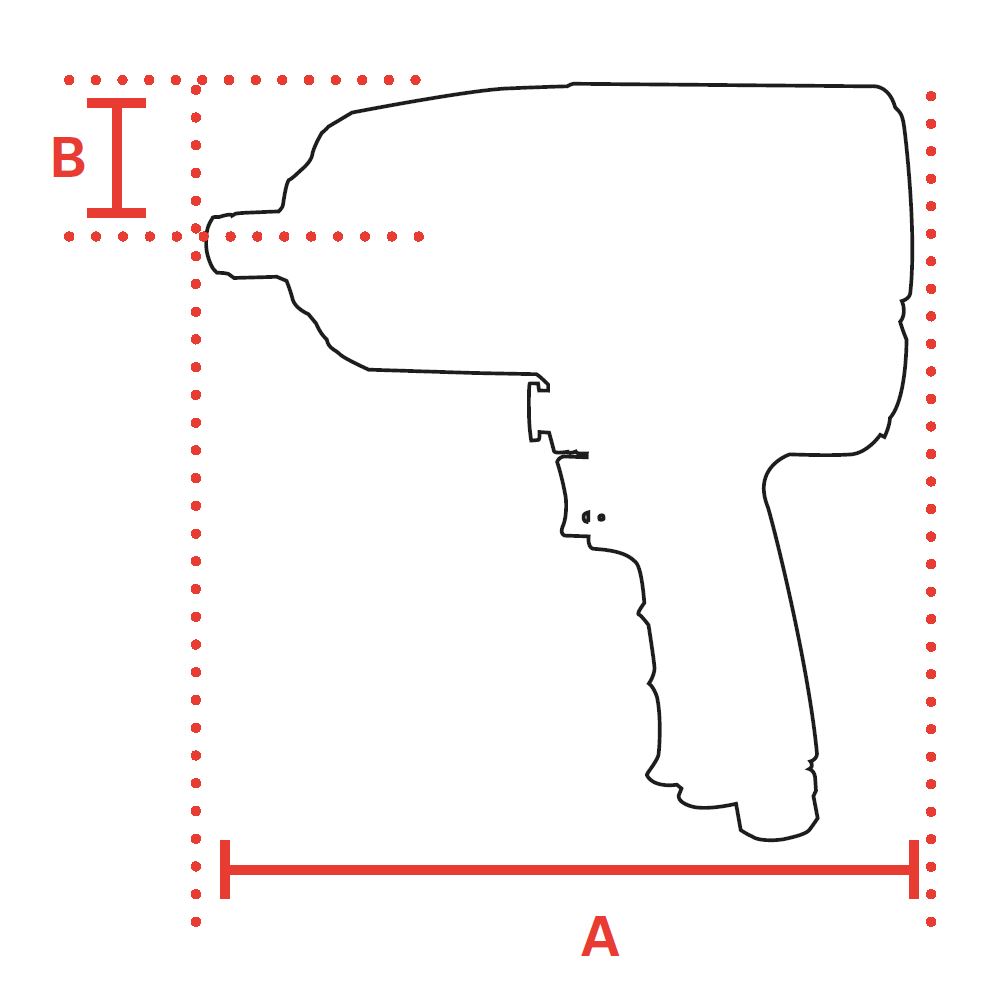

| mm A | 239 |
| mm B | 38 |
| Hosediameter (mm) | 10 |
| Safety standard | EN ISO 11148-6 |
| Max. breakaway torque (Nm) | 2200 |
| Vibration standard | EN ISO 28927-2 |
| Vibration value (m/s²) | 4,3 |
| Vibration uncertainty (m/s²) | 1,5 |
| Sound standard | ISO 15744 |
| Sound pressure (dB(A)) | 93 |
| Sound power (dB(A)) | 106 |
| Sound uncertainty (dB(A)) | 13 |
| EAN | 8717981431250 |
