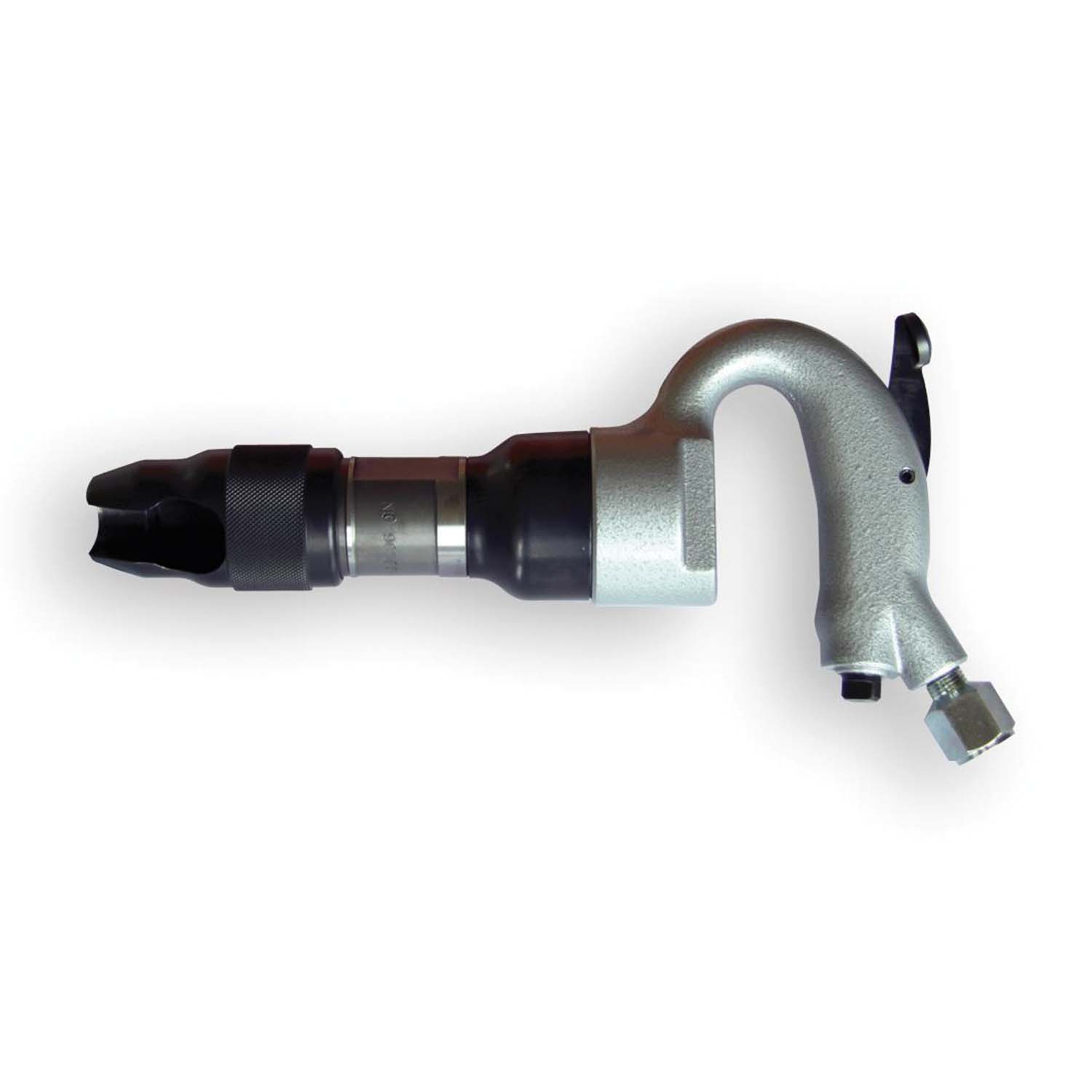

This Toku chipping hammer is equipped with open screwcap retainer for the chisel. Suitable for intensive use. High energy-level each blow. For construction, renovation and foundries.
Characteristics:
* Ergonomic design, well balanced.
* Compact and lightweight.
* Lefthanders and righthanders can use this tool.
Related products
BEAA-OB-04
Wide Chisel TL=220 B=50
BEAA-OB-01
Flat Chisel TL= 220 W=16
BEAA-OB-05
Wide Chisel TL=220 B=100
BEAA-OB-03
Flat Chisel TL= 220 B=25
BEAA-OB-06
Wide Chisel bent TL=220 B=50
BEAA-OB-02 400MM
Moil Point AA-OB TL=400mm
BEAA-OB-01 400MM
Flat Chisel For AA-OB TL=400 W=16mm
BEAA-OB-04 540MM
Wide Chisel TL=540 B=50
BEAA-OB-02
Moil Point TL= 220
Specifications
| Brand | Toku |
| Airconsumption (l/s) | 5,8 |
| Weight (kg) | 2,6 |
| Shank size (mm) | H^12,7 x R^15 x 53 |
| Airconnection | PT 3/8" |
| Airpress max. (MPa) | 0,63 |

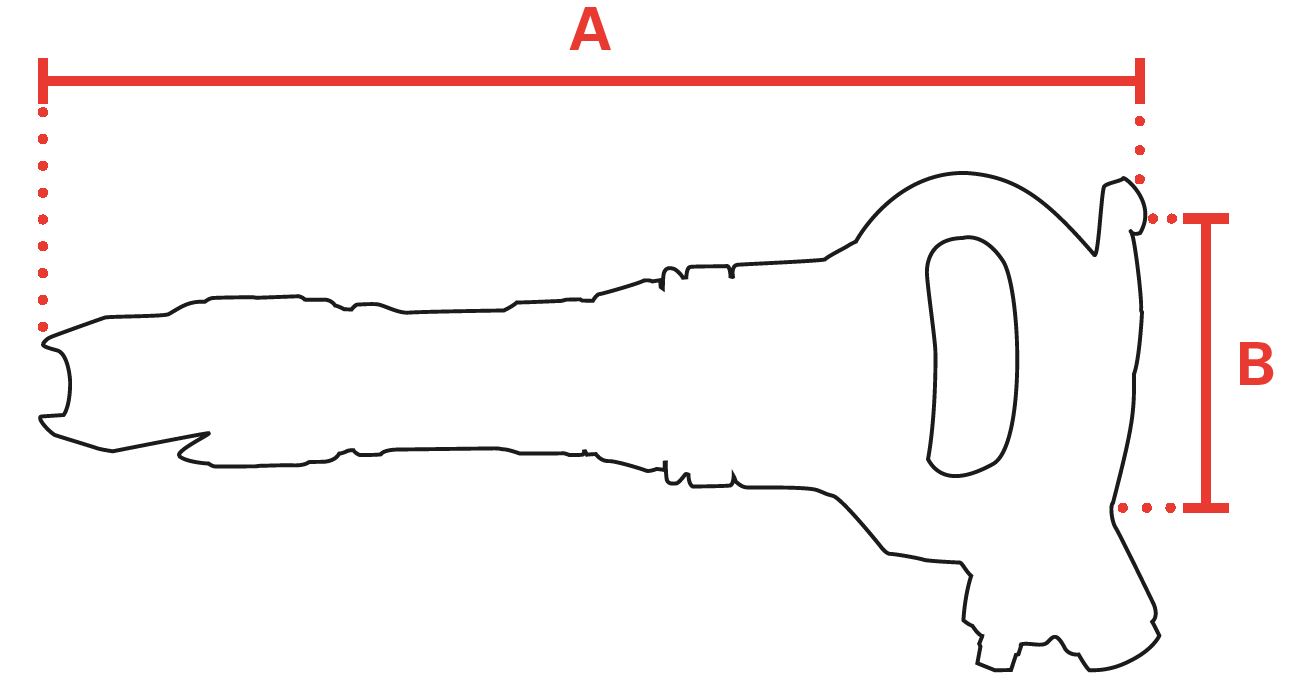

| mm A | 245 |
| mm B | 95 |
| Stroke (mm) | 50 |
| Strokes per minute | 3600 |
| Energy (J/Stroke) | 7,5 |
| Hosediameter (mm) | 6,5 |
| Piston (mm) | 20 |
| Safety standard | EN ISO 11148-4 |
| Vibration standard | EN ISO 28927-10 |
| Vibration value (m/s²) | 9,0 |
| Vibration uncertainty (m/s²) | 1,10 |
| Sound standard | ISO 15744 |
| Sound pressure (dB(A)) | 101 |
| Sound power (dB(A)) | 112 |
| Sound uncertainty (dB(A)) | 3 |
| EAN | 8717981197026 |
