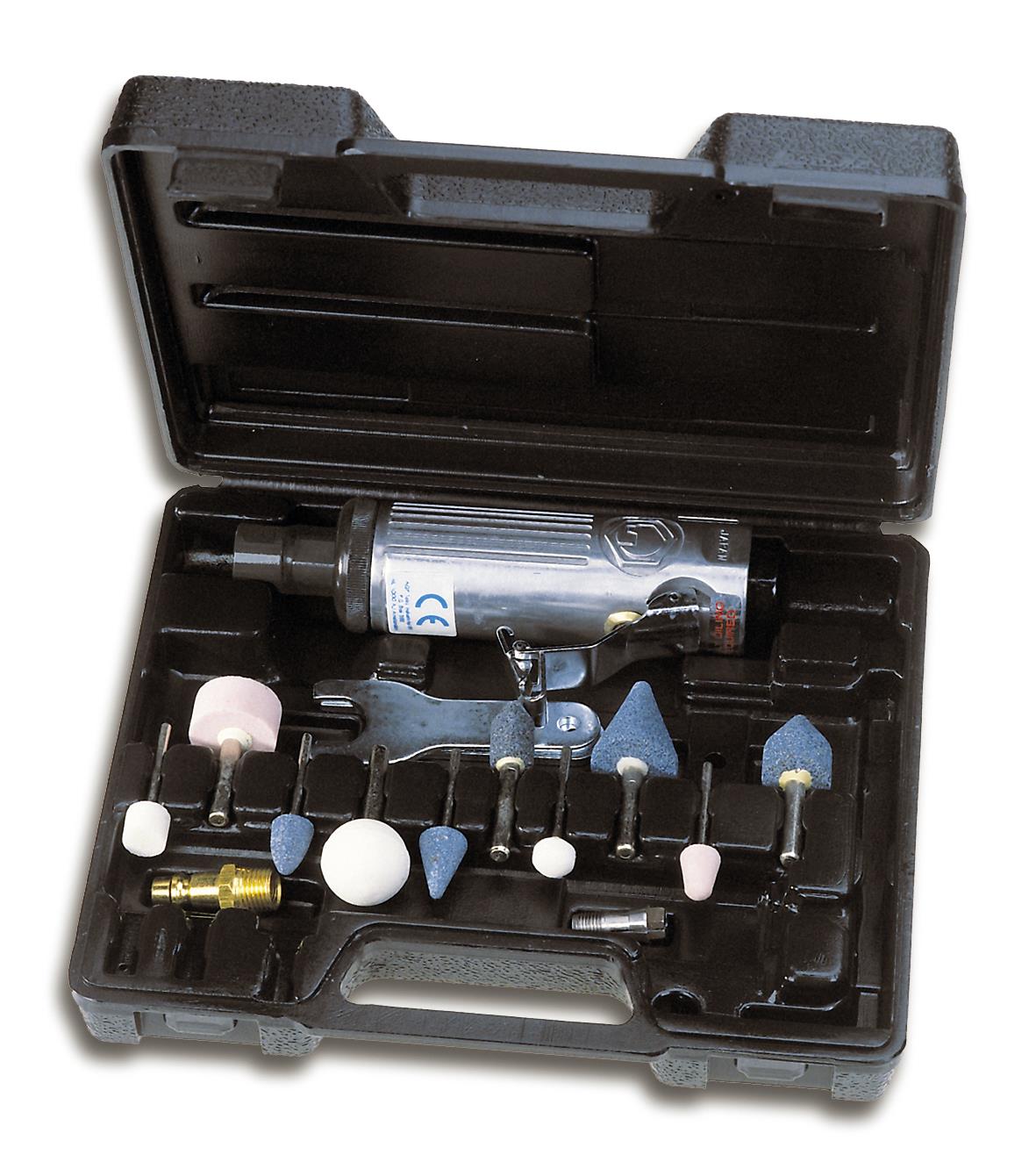

This die-grinder by Toku is used with grinding wheels and burrs with 6mm collet chuck. Application area: Light dressing and fettling on fabrications and die setting sets.
Characteristics:
* Ergonomic design, well balanced
* Compact and lightweight
* low vibrationlevel
* deliverd including an assortment of abbrasives
Specifications
| Brand | Toku |
| RPM | 23000 |
| Airconsumption (l/s) | 5,0 |
| Weight (kg) | 0,56 |
| Airconnection | PT 1/4" |
| Airpress max. (MPa) | 0,63 |

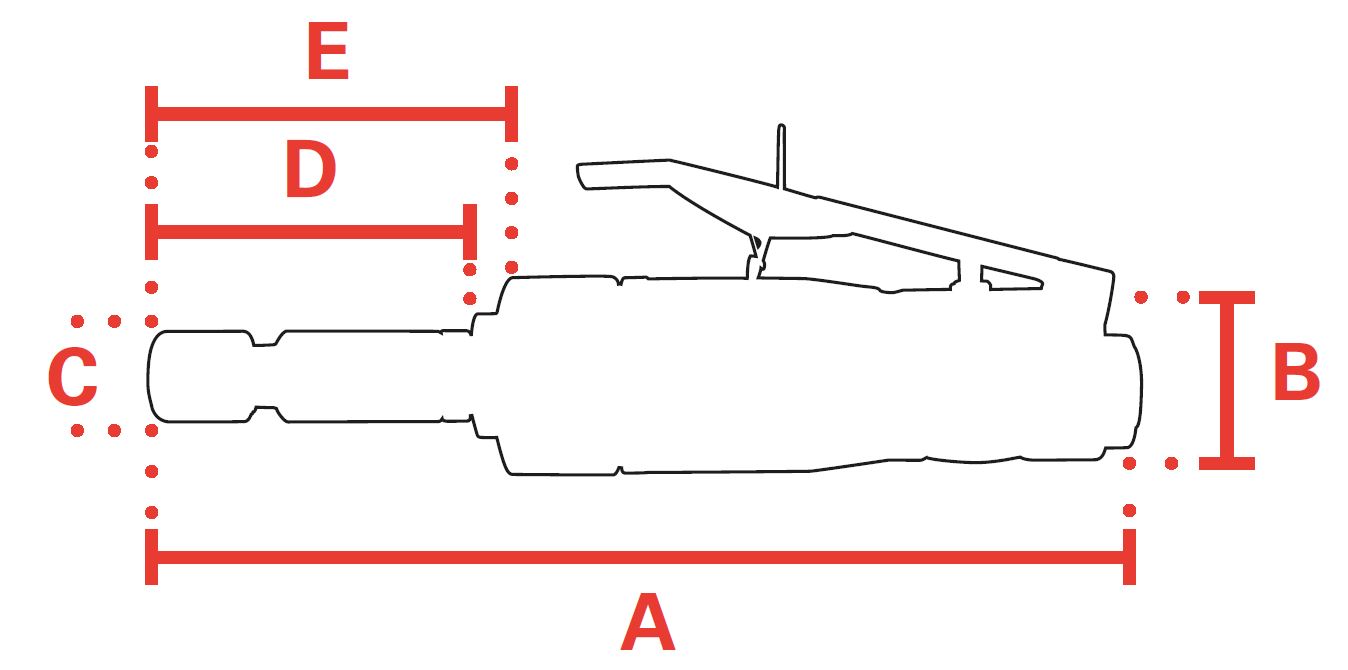

| mm A | 164 |
| mm B | 40 |
| Hosediameter (mm) | 6,5 |
| Collet chuck (mm) | 6 |
| Power (kW) | 0,38 |
| Wheel size (mm) | 25 |
| Safety standard | EN ISO 11148-7 |
| Vibration standard | EN ISO 28927-12 |
| Vibration value (m/s²) | 1,7 |
| Vibration uncertainty (m/s²) | 0,27 |
| Sound standard | ISO 15744 |
| Sound pressure (dB(A)) | 91 |
| Sound power (dB(A)) | 102 |
| Sound uncertainty (dB(A)) | 3 |
| EAN | 8717981141708 |
Manuals
| MG-7206BSET-PL.pdf | Download |
| MG-7206BSET-DE.pdf | Download |
| MG-7206BSET-FR.pdf | Download |
| MG-7206BSET-ES.pdf | Download |
| MG-7206BSET-SV.pdf | Download |
| MG-7206BSET-EN.pdf | Download |
| MG-7206BSET-DA.pdf | Download |
| MG-7206BSET-PT.pdf | Download |
| MG-7206BSET-EL.pdf | Download |
| MG-7206BSET-FI.pdf | Download |
| MG-7206BSET-NO.pdf | Download |
| MG-7206BSET-IT.pdf | Download |
| MG-7206BSET-NL.pdf | Download |
| MG-7206BSET-SK.pdf | Download |
| MG-7206BSET - QR Card.pdf | Download |
