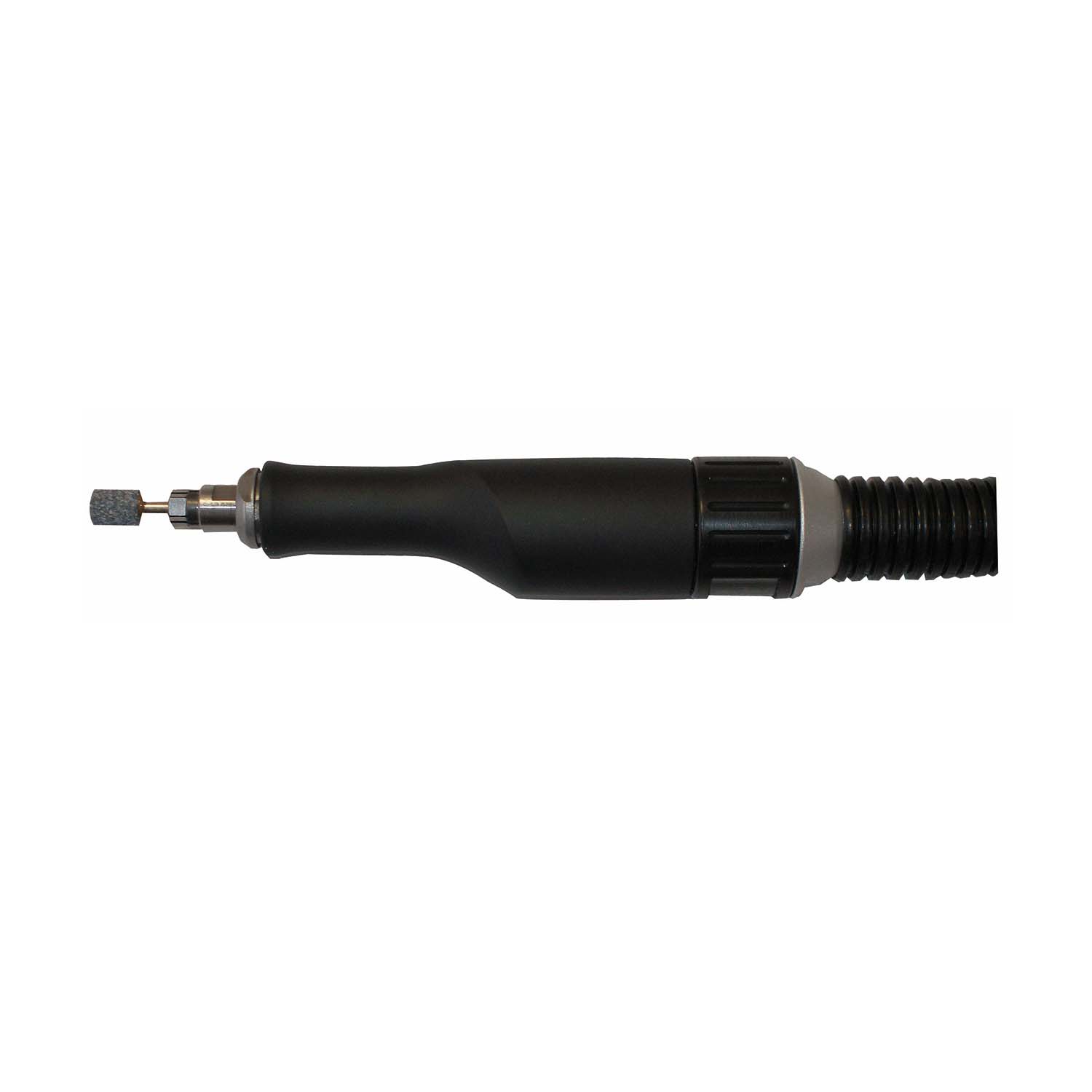

The high speed RED ROOSTER RRI-34100 die grinder is specifically destined for grinding and de-burring with hardmetal burrs on a 3mm shaft. The good torque and power ratio of the gear motor transmit a stable speed of the shaft, even under loads. Use for moulds and dies but also for non-metallic materials.
Characteristics:
• Low noise-level by means of integrated exhaust-air hose with muffler.
• Turn-switch for flexibility in handling of the tool.
• Highly accurate roundness of the running shaft ensures long lifetime and low vibration levels.
• This grinder can be used with oil-free air.
Related products
AC20A-F02E-D
Frl Unit
Related accessories
Specifications
| Brand | Red Rooster Industrial |
| RPM | 100000 |
| Airconsumption (l/s) | 3,3 |
| Weight (kg) | 0,20 |
| Airconnection | PT 1/4" |
| Airpress max. (MPa) | 0,63 |

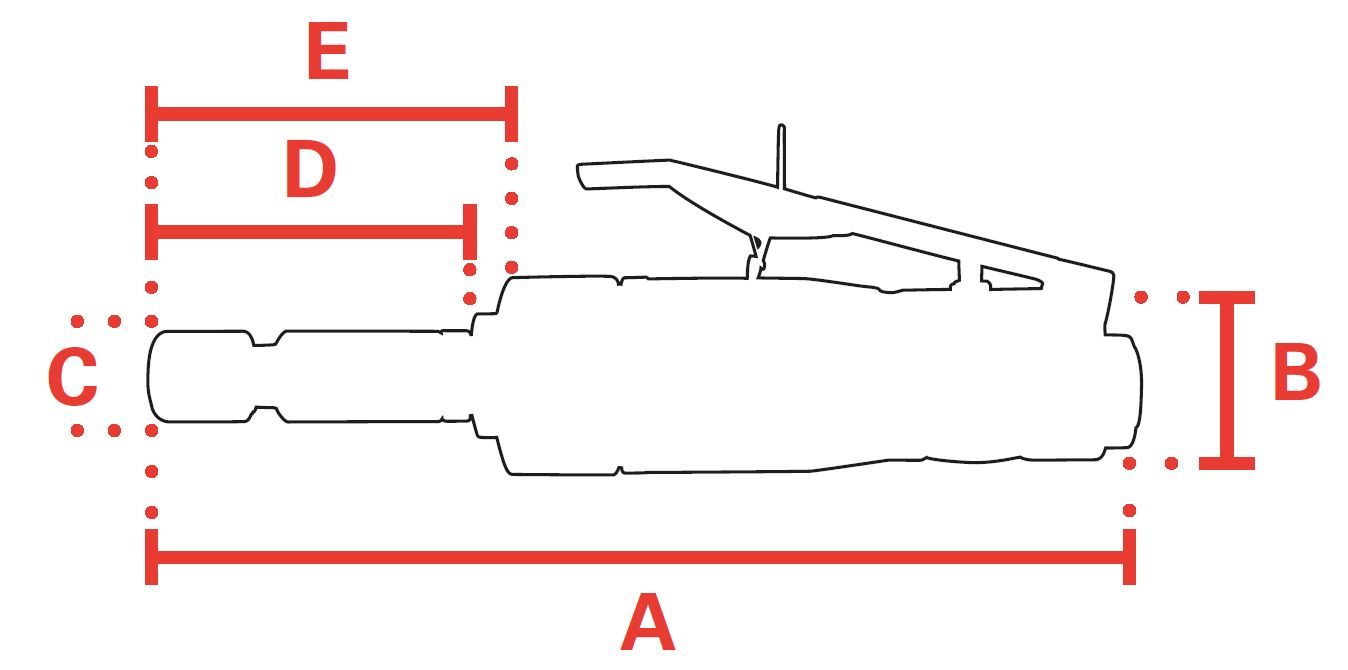

| mm A | 140 |
| mm B | 29 |
| mm C | 10 |
| mm D | 15 |
| mm E | 21 |
| Hosediameter (mm) | 6,5 |
| Collet chuck (mm) | 3 |
| Power (kW) | 0,09 |
| Wheel size (mm) | 5 |
| Safety standard | EN ISO 11148-7 |
| Vibration standard | EN ISO 28927-12 |
| Vibration value (m/s²) | < 2,5 |
| Vibration uncertainty (m/s²) | 0,74 |
| Sound standard | ISO 15744 |
| Sound pressure (dB(A)) | 72 |
| Sound uncertainty (dB(A)) | 3 |
| EAN | 8717981206698 |
Manuals
| RRI-34100-EN.pdf | Download |
| RRI-34100-DA.pdf | Download |
| RRI-34100-PT.pdf | Download |
| RRI-34100-ES.pdf | Download |
| RRI-34100-IT.pdf | Download |
| RRI-34100-SK.pdf | Download |
| RRI-34100-EL.pdf | Download |
| RRI-34100-PL.pdf | Download |
| RRI-34100-NO.pdf | Download |
| RRI-34100-FI.pdf | Download |
| RRI-34100-DE.pdf | Download |
| RRI-34100-NL.pdf | Download |
| RRI-34100-SV.pdf | Download |
| RRI-34100-FR.pdf | Download |
| RRI-34100 - QR Card.pdf | Download |
