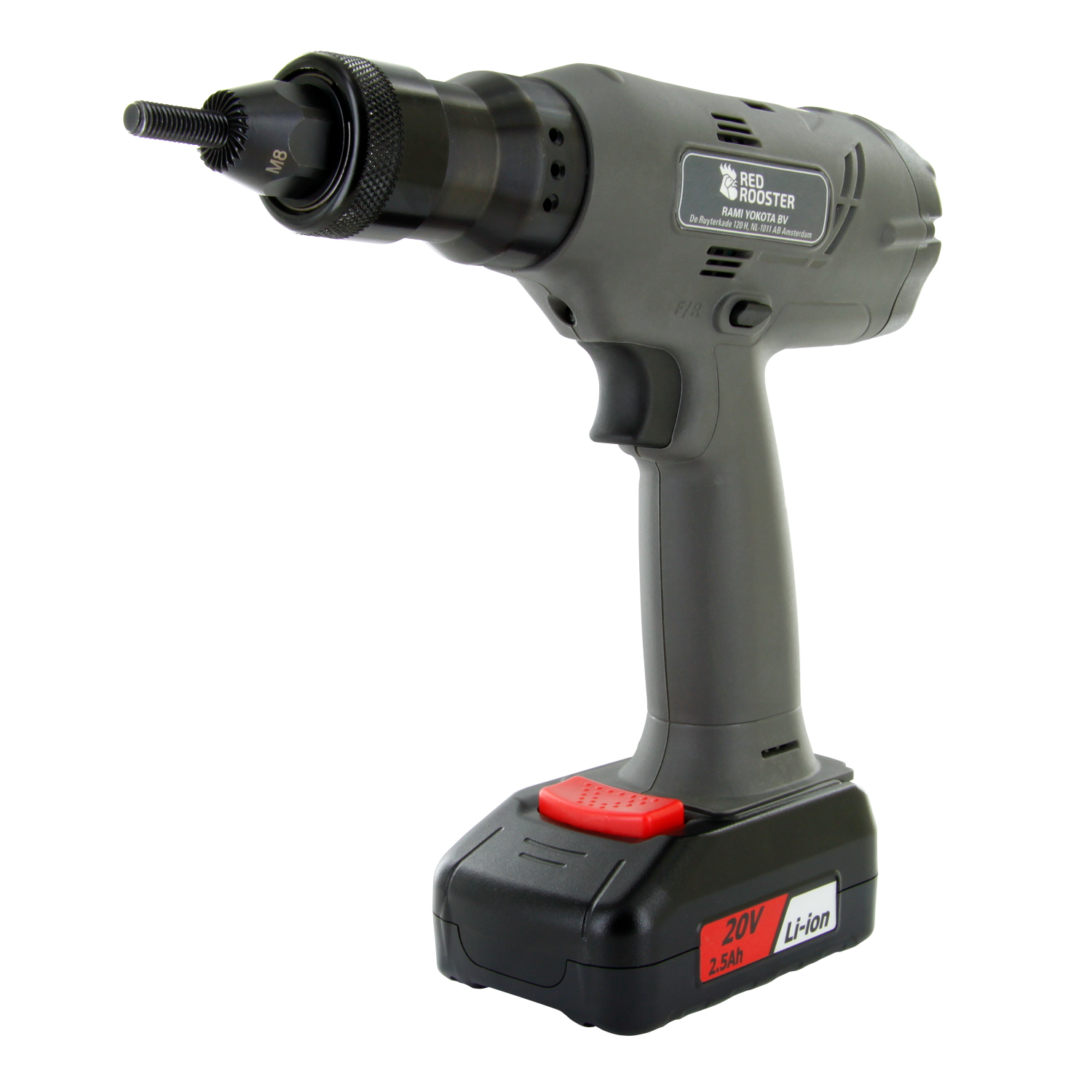

RED ROOSTER Cordless rivet nut setters. Very well suited for assembly applications where good accuracy is required. Contactless trigger and forward / reverse switch for a long lifetime.
Characteristics:
• Brushless motor
• 18 Volt Lithium-Ion battery

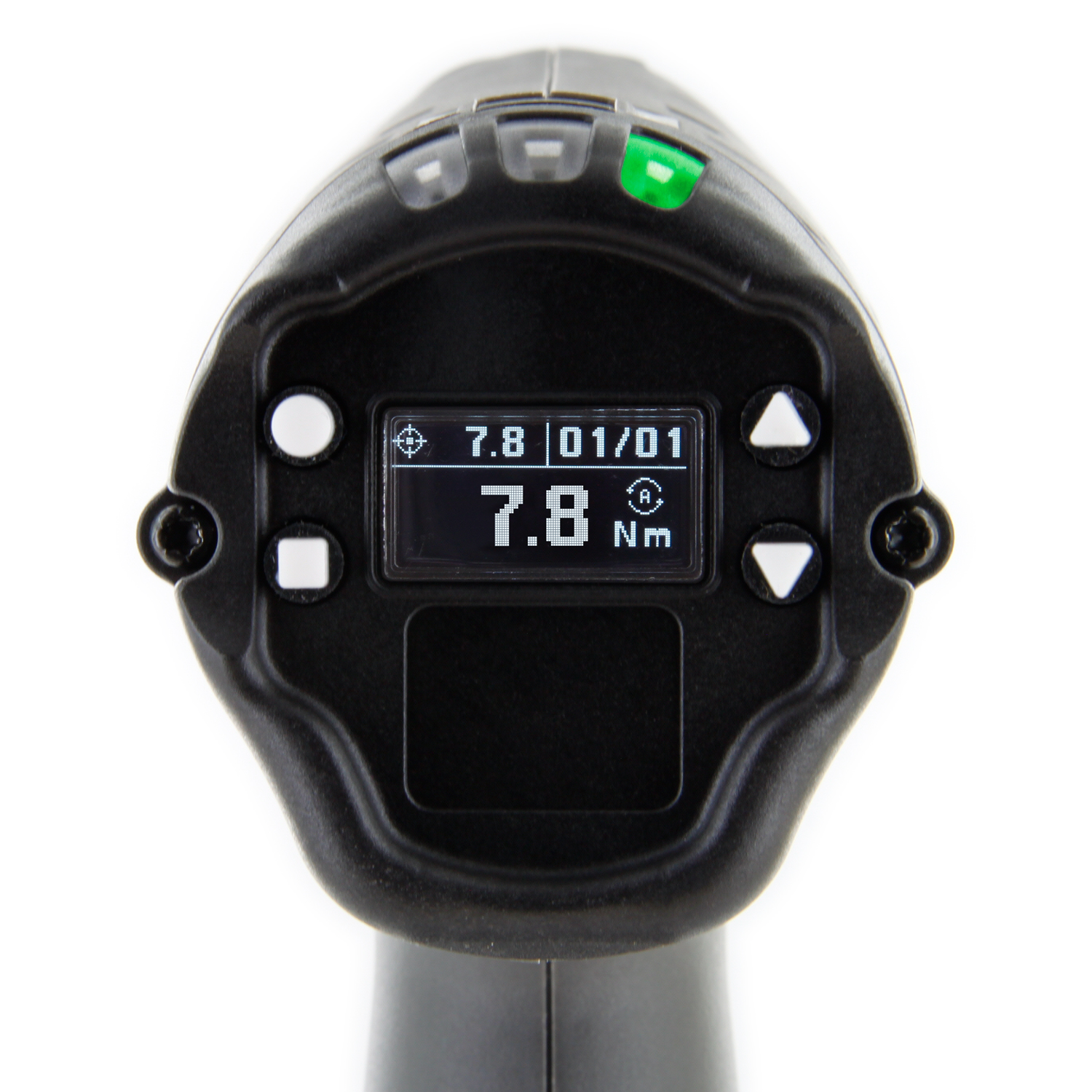

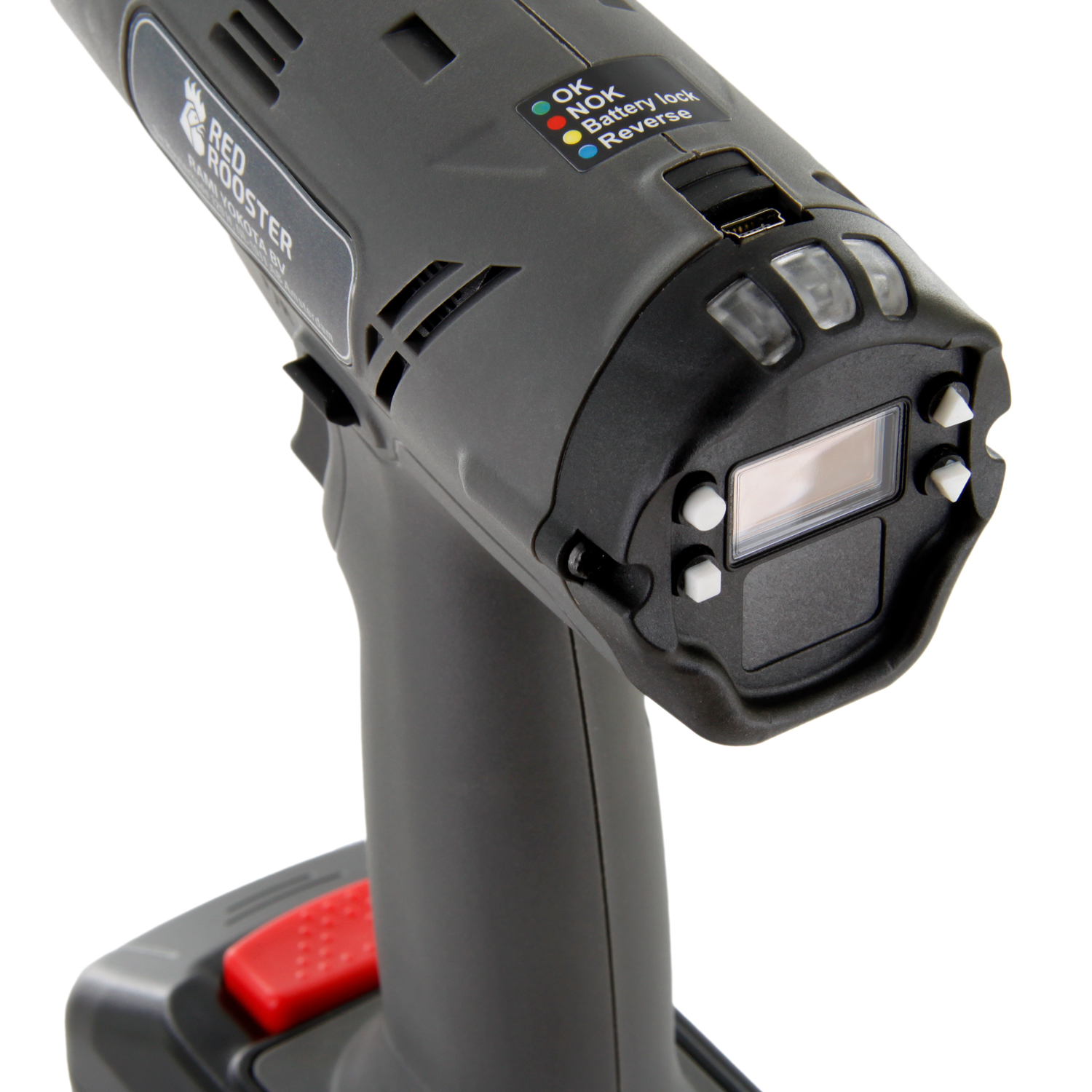

• LED status indicates OK - NOK - REVERSE - BATTERY LOW
• Programmable torque
• Programmable speed
• Group check / counting
• Compact and light weight
• Battery (2,5 Ah: BB200D-325; 5,0 Ah: BB200D-350), charger (B84192B) and rivet head to be ordered separately.
Related accessories
220-PNS1010-7103-F0

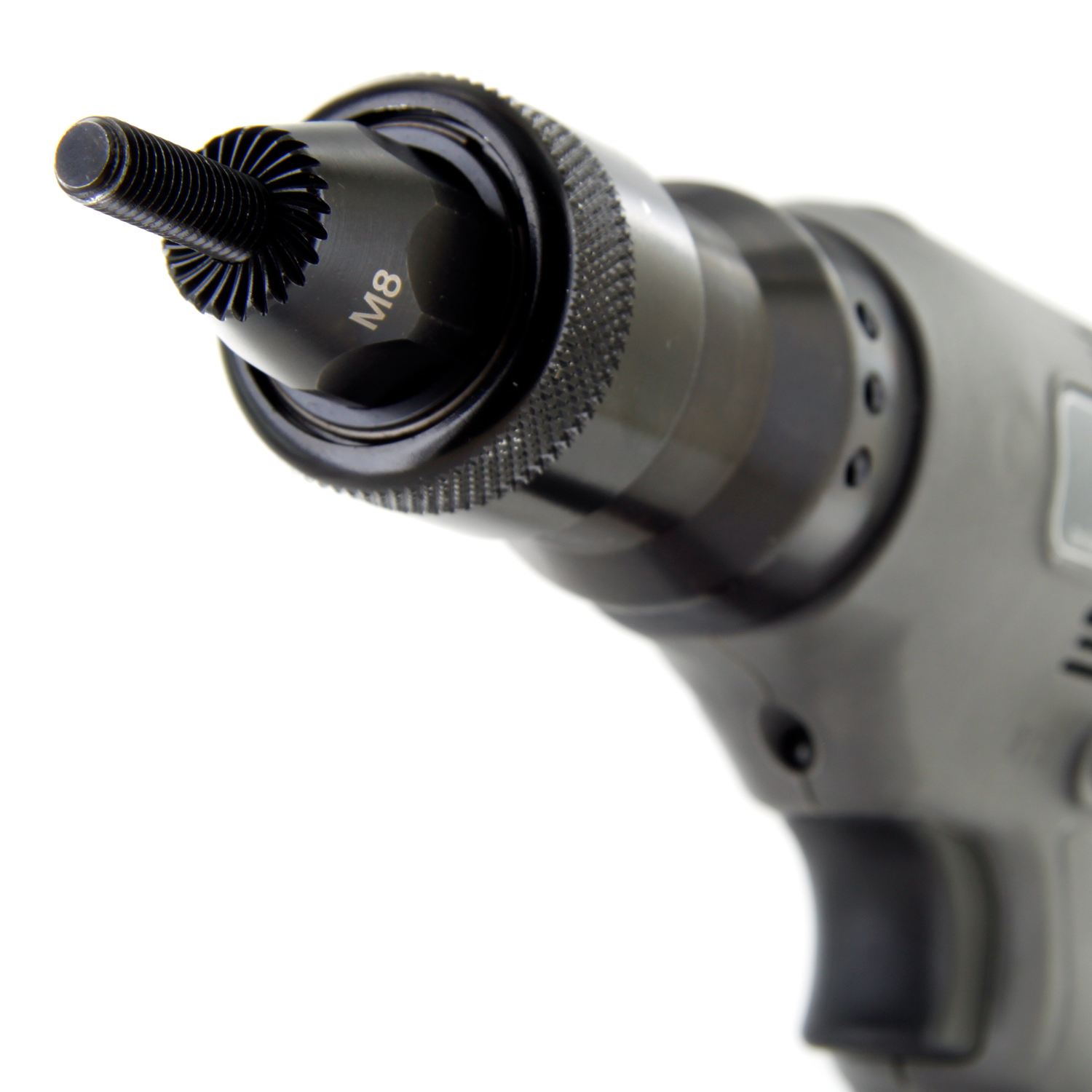

Rivet Head Assy M8
BB200D-325
18V 2.5Ah Battery, Li-ion
220-PNS1010-7103-B0
Rivet Head Assy M3
220-PNS1010-7103-D0
Rivet Head Assy M5
BB200D-350
18V 5.0Ah Battery, Li-ion
220-PNS1010-7103-C0
Rivet Head Assy M4
B84192B
18-20V Charger
220-PNS1010-7103-E0
Rivet Head Assy M6
Specifications
| Brand | Red Rooster Industrial |
| RPM | 220 ~ 1100 |
| Torque (Nm) | 1,5 ~ 8 |
| Weight w/o battery (kg) | 1,63 |
| Max. capacity | M3 ~ M8 |

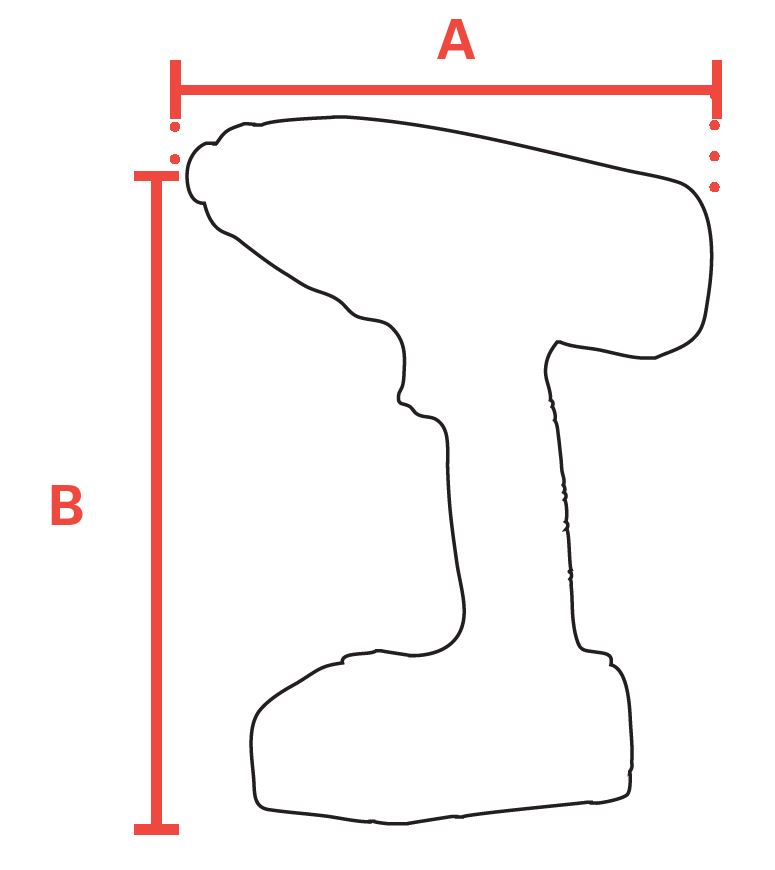

| mm A | 203 |
| mm B | 241 |
| Pulling force (N) | 12000 |
| Battery voltage (Volt) | 18 |
| Battery type Li-ion….(Ah) | 2,5 / 5,0 |
| Vibration standard | EN ISO 28927-2 |
| Vibration value (m/s²) | 0,8 |
| Vibration uncertainty (m/s²) | 0,3 |
| Sound standard | ISO 15744 |
| Sound pressure (dB(A)) | 80 |
| Sound uncertainty (dB(A)) | 3 |
| EAN | 871981466771 |
