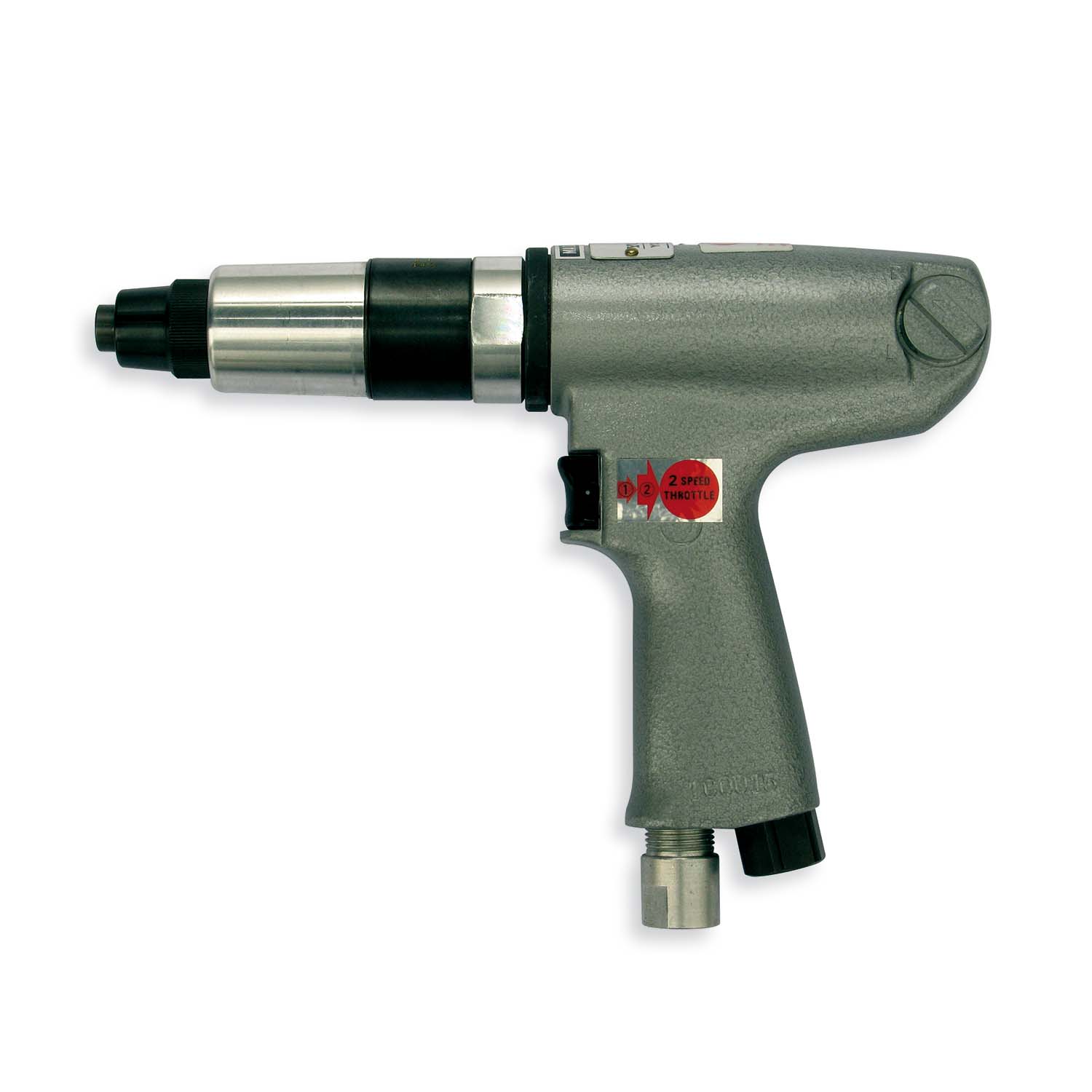

This Yokota screwdriver is developed for the assembly-industry. It has an adjustable clutch for powerfull operation. Characteristics:
* Ergonomic design, well balanced
* Compact and lightweight
* Exhaust through isolated grip, with silencer
Related products
AC30A-F03E-B
Modular FRL Unit
Related accessories
2201-0243-00-00
Control Handle
ATLUB
Air Tool Oil, 1 litre
Specifications
| Brand | Yokota |
| Bolt capacity (mm) | 5 |
| RPM | 1650 |
| Torque (Nm) | 1,0 - 6,6 |
| Airconsumption (l/s) | 5,8 |
| Weight (kg) | 1,20 |
| Hexagon | 1/4" |
| Airconnection | PT 1/4" |
| Airpress max. (MPa) | 0,63 |

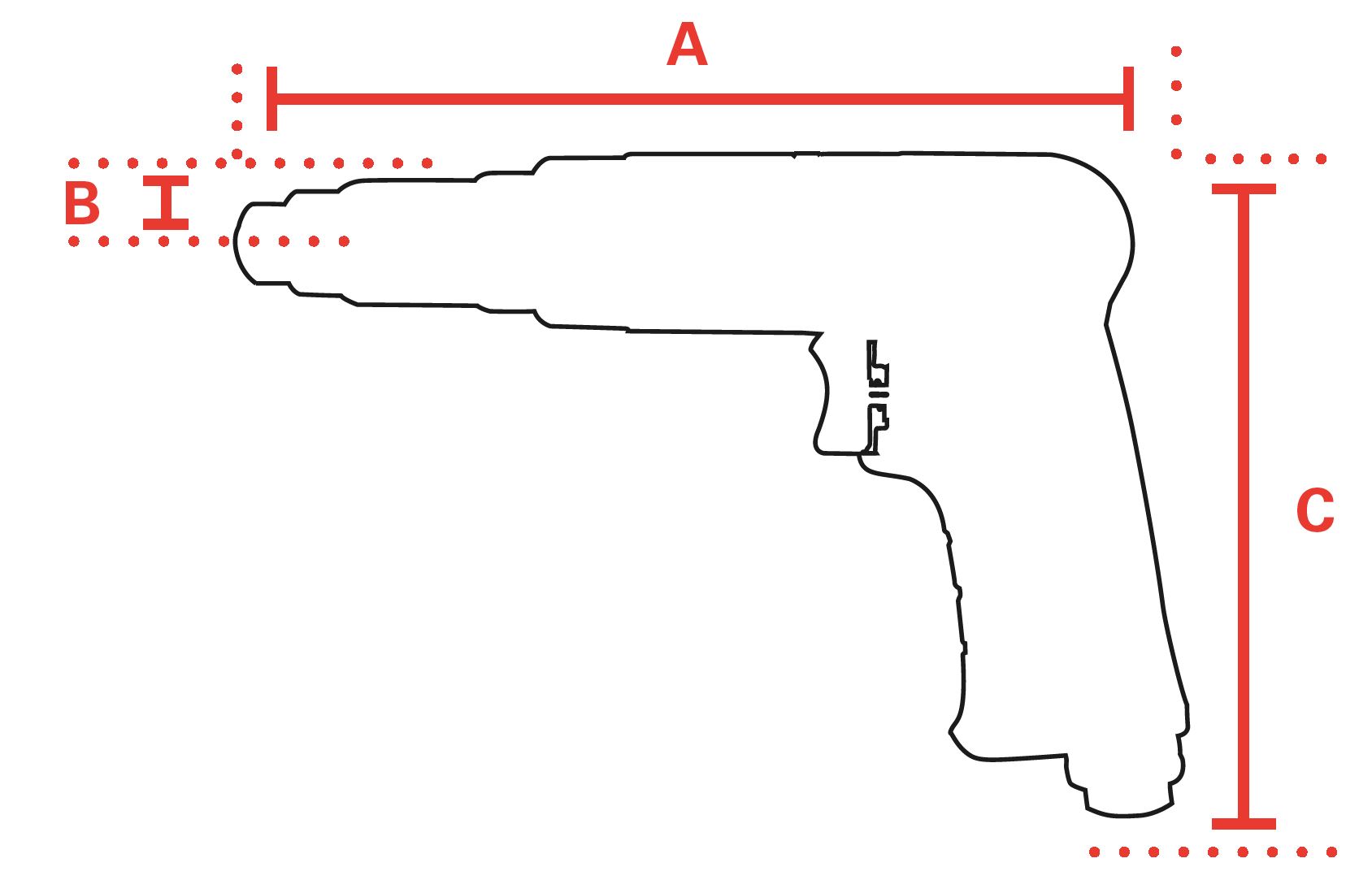

| mm A | 217 |
| mm B | 20 |
| mm C | 154 |
| Hosediameter (mm) | 6,5 |
| Execution | Pistool |
| Safety standard | EN ISO 11148-6 |
| Vibration standard | EN ISO 28927-2 |
| Vibration value (m/s²) | 3,9 |
| Sound standard | ISO 15744 |
| Sound pressure (dB(A)) | 85 |
| Sound power (dB(A)) | 96 |
| Sound uncertainty (dB(A)) | 3 |
| EAN | 8717981000654 |
