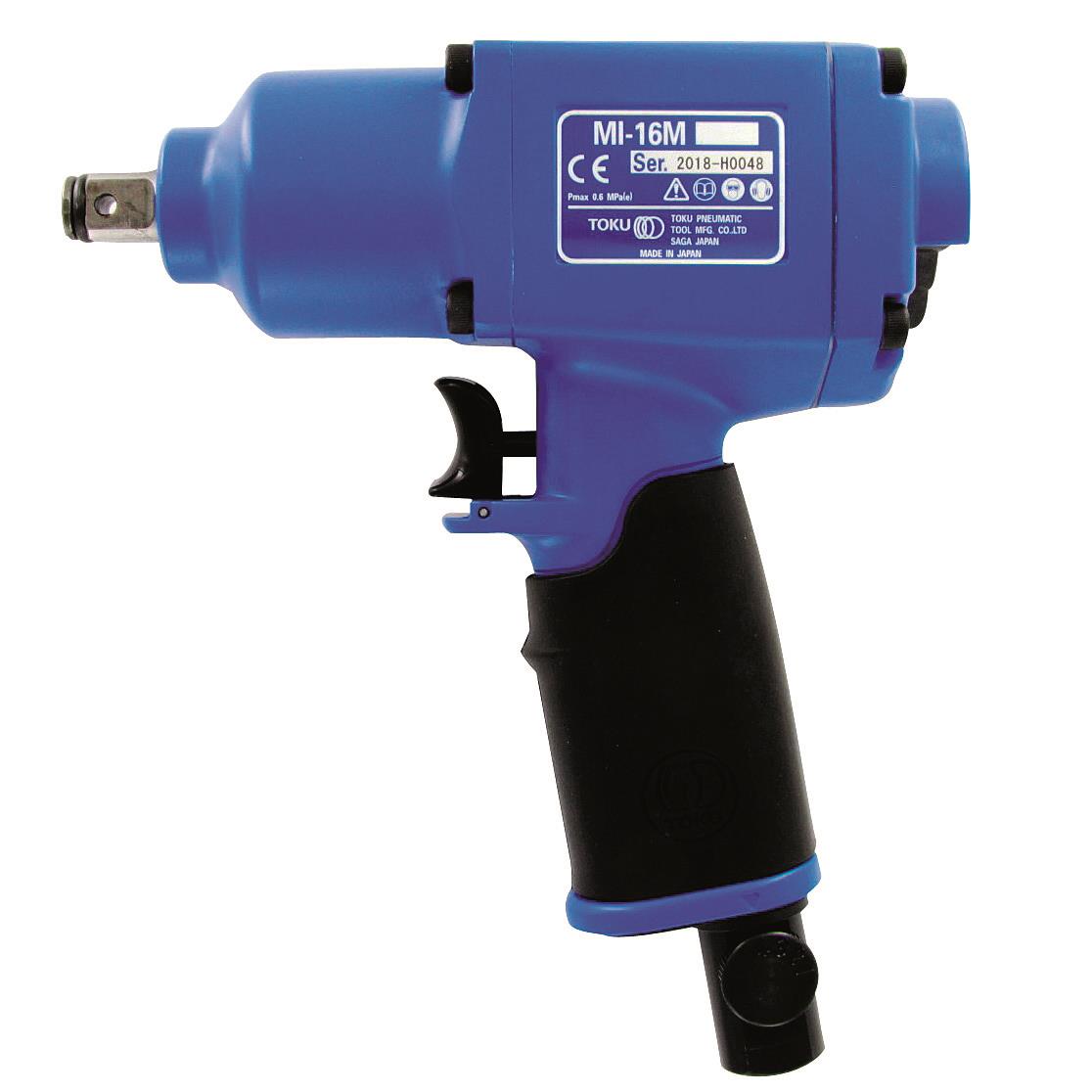

This TOKU Impact Wrench has an excellent weigth/power ratio. The MI-16 is developed for assembly- and disassembly purposes. The Twin Hammer impactmechanism has a high energy level at each impact and thus suitable for heavy duty application. The energy is brought directly to the drive shaft for maximum power and minimal maintenance. This tool is suitable for industrial use.
Characteristics:
• Ergonomic design, well balanced
• Compact and lightweight
• Clutch: Twin Hammer
• Adjustable power, 4 positions
• Exhaust through rubber sealed grip, with silencer
Related products
AC30A-F03E-B
Modular FRL Unit
DO605121301
Impact Socket Set 3/8" deep 13-part
DO611101301
Socket Set 3/8" 13-parts
Related accessories
ATLUB
Air Tool Oil, 1 litre
Specifications
| Brand | Toku |
| Square Drive | 3/8" |
| Version | R |
| Bolt capacity (mm) | 12 |
| Impact mechanism | Twin-Hammer |
| RPM | 6200 |
| Torque (Nm) | 270 |
| Force adjustment | R/L 4 Standen |
| Airconsumption (l/s) | 9,3 |
| Weight (kg) | 1,5 |
| Airconnection | PT 1/4" |
| Airpress max. (MPa) | 0,63 |

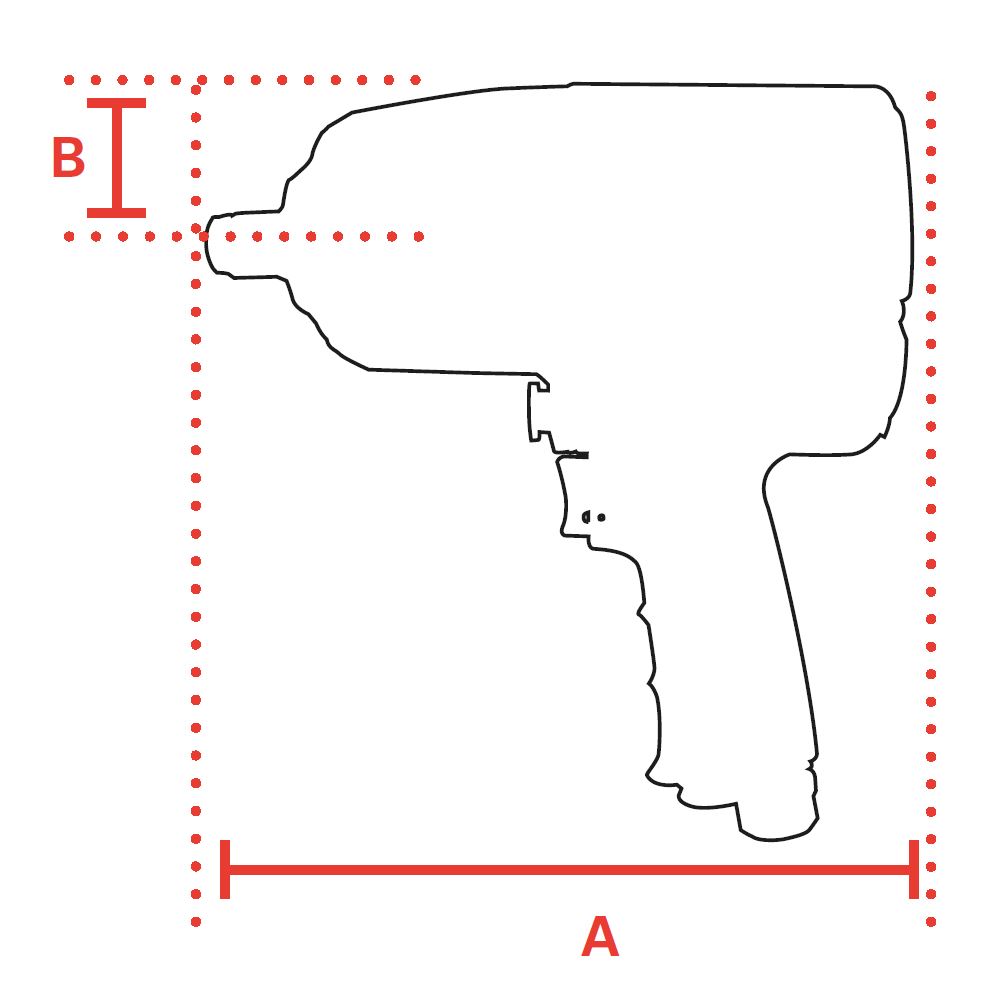

| mm A | 170 |
| mm B | 27 |
| Hosediameter (mm) | 6,5 |
| Safety standard | EN ISO 11148-6 |
| Vibration standard | EN ISO 28927-2 |
| Vibration value (m/s²) | 6,9 |
| Vibration uncertainty (m/s²) | 1,18 |
| Sound standard | ISO 15744 |
| Sound pressure (dB(A)) | 89 |
| Sound power (dB(A)) | 100 |
| Sound uncertainty (dB(A)) | 3 |
| EAN | 8717981324590 |
