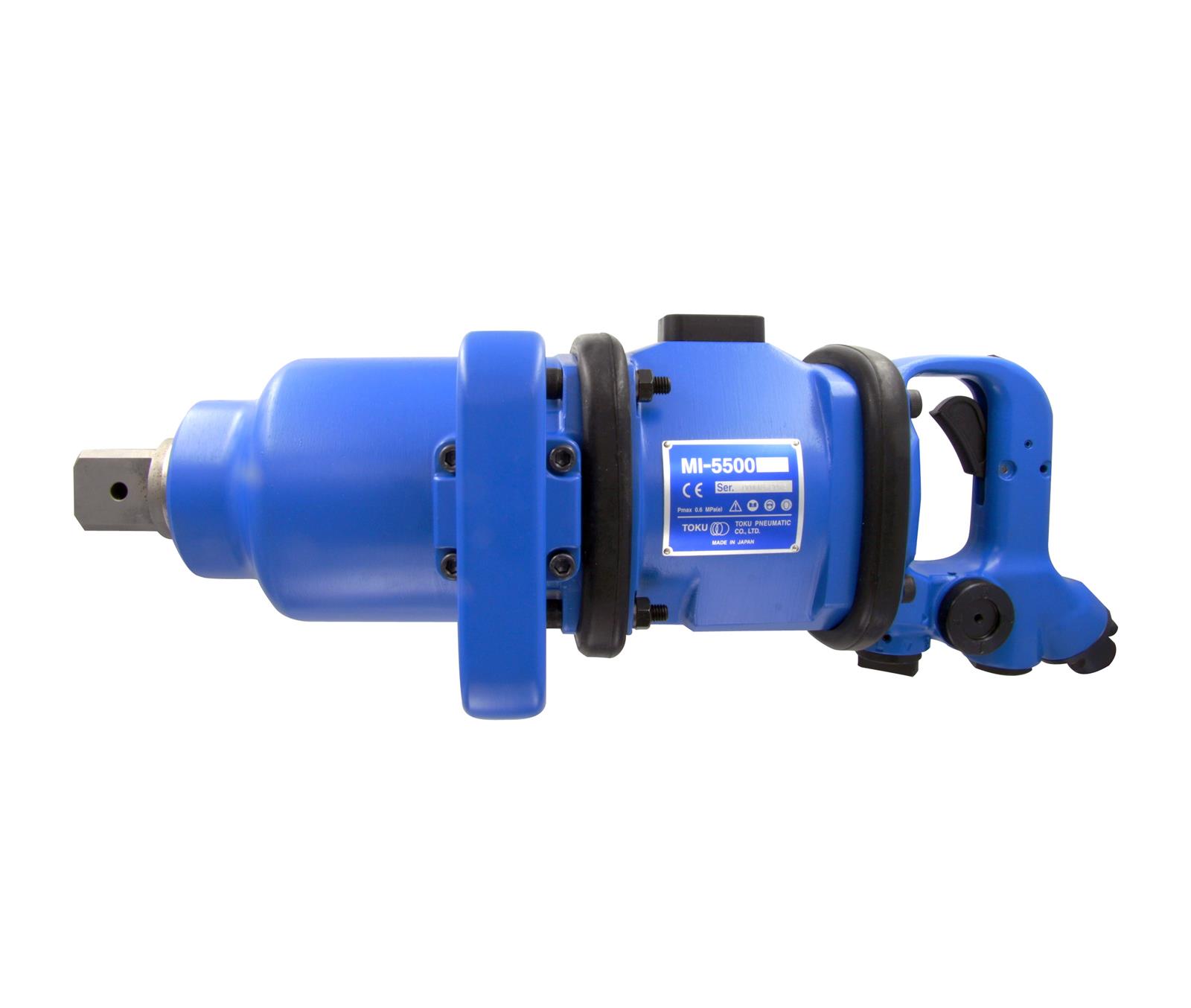

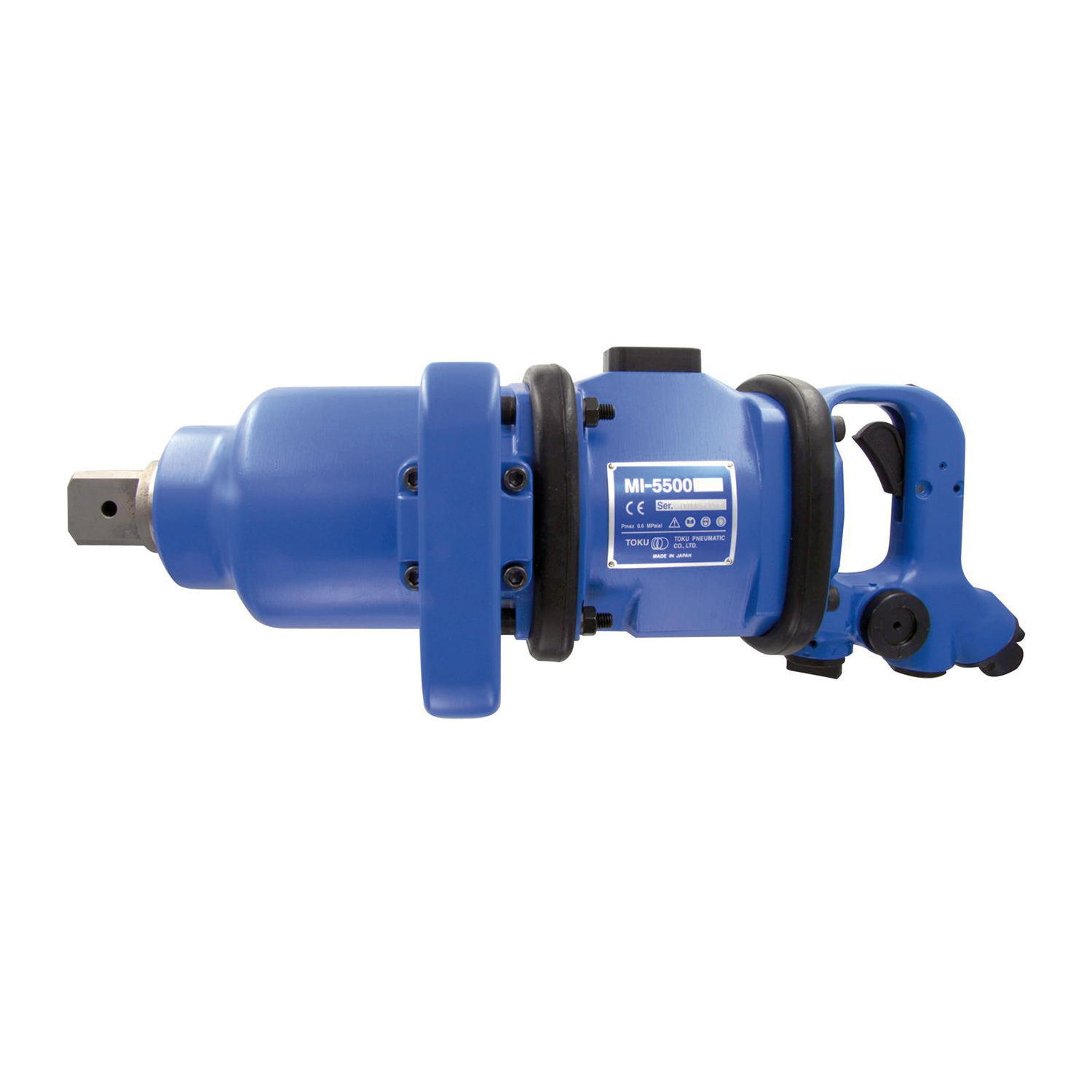

This industrial impact wrench by Toku has proven capabilities. The MI-5500ES is developed for tightening and untightening applications. The Dynapact hammer mechanism can virtually not be damaged hence applicable for heavy duty applications. The energy is directly converted to the anvil for maximum power and minimal maintenance. The tool is suitable for use in the industry.
Characteristics:
* Ergonomic design, well balanced
* Compact and strong
* Power adjustable, 4 positions
Related accessories
DO10025S
Ret Ring
DO5112-0-055
Socket 1 1/2" x 55mm
DO5112-1-065
Socket 1 1/2" x 65mm Deep
DO64865036
Socket 1 1/2" x 36mm Hex Driver
ATLUB
Air Tool Oil, 1 litre
DO1112-0-000
Pen & Ring for sockets 1-1/2"
Specifications
| Brand | Toku |
| Square Drive | 1 1/2" |
| Version | H |
| Bolt capacity (mm) | 52 |
| Impact mechanism | Dynapact |
| RPM | 2800 |
| Torque (Nm) | 5500 |
| Force adjustment | R/L 4 Standen |
| Airconsumption (l/s) | 15,0 |
| Weight (kg) | 18,1 |
| Airconnection | PT 1/2" |
| Airpress max. (MPa) | 0,63 |

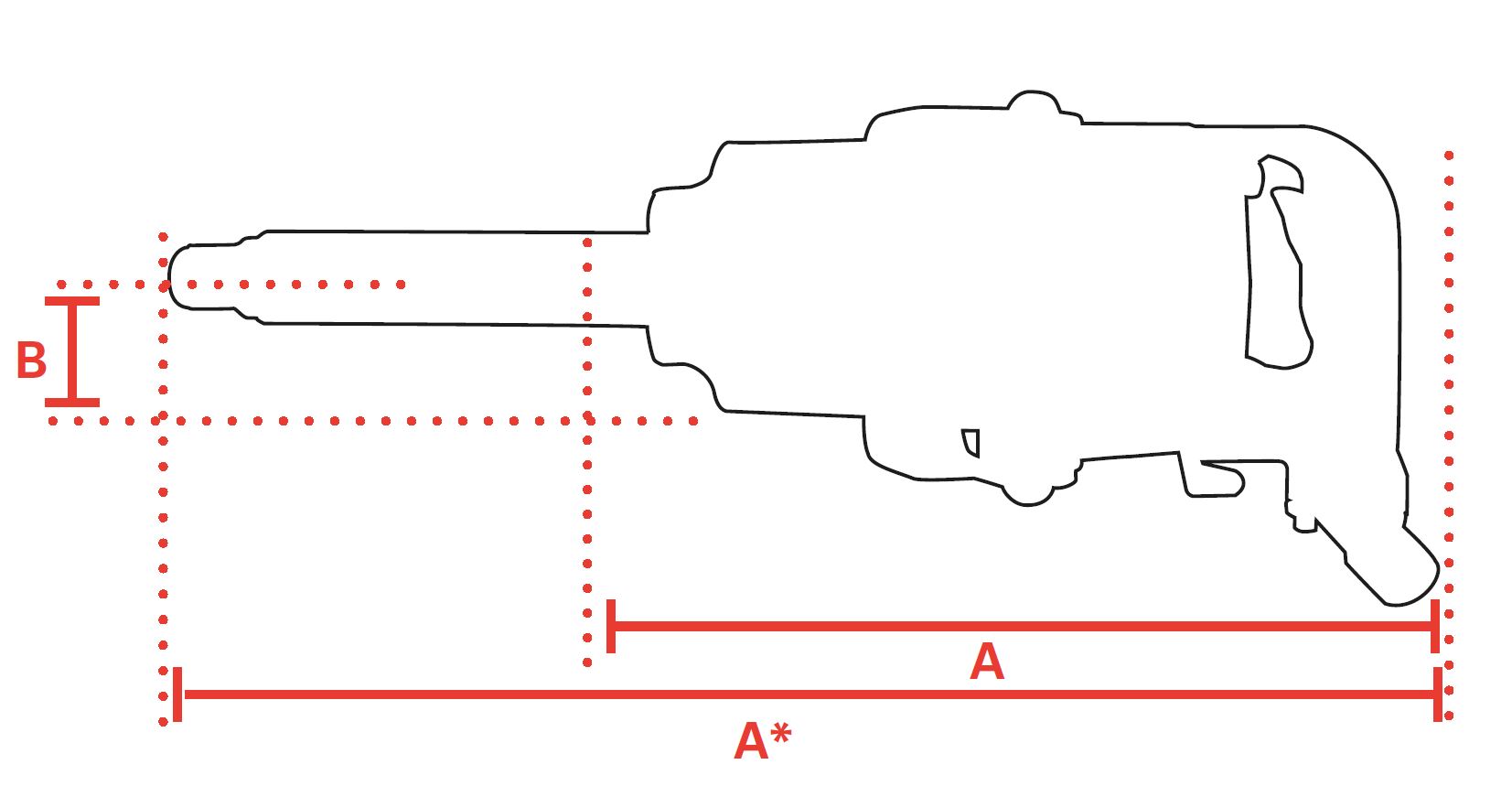

| mm A | 553 |
| mm B | 63 |
| Hosediameter (mm) | 13 |
| Vibration standard | EN ISO 28927-2 |
| Vibration value (m/s²) | 9,7 |
| Vibration uncertainty (m/s²) | 0,71 |
| Sound standard | ISO 15744 |
| Sound pressure (dB(A)) | 100 |
| Sound power (dB(A)) | 111 |
| Sound uncertainty (dB(A)) | 3 |
| EAN | 8717981190966 |
