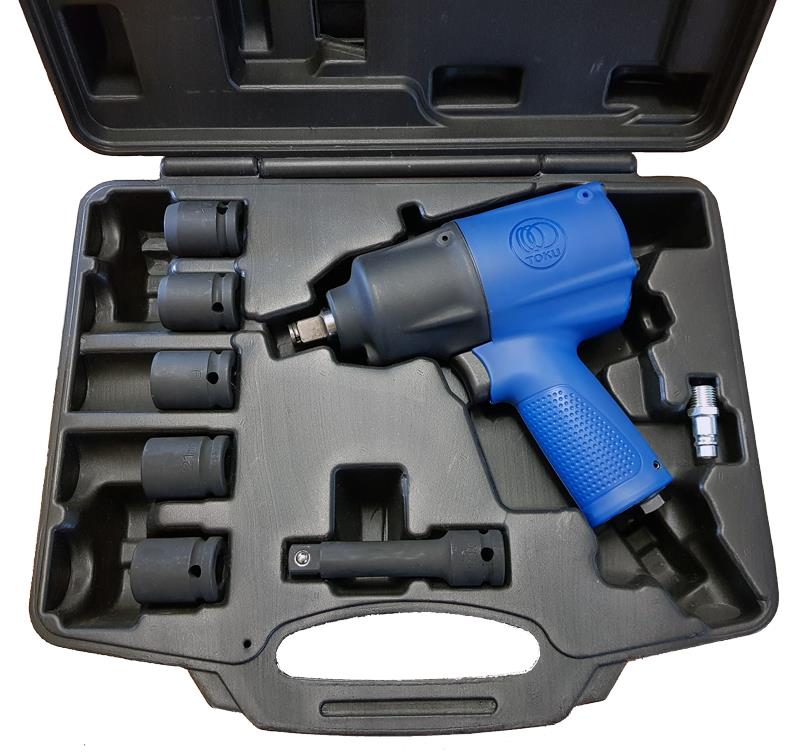

IMPACT WRENCH IN SET:
Impact wrench MI-17C,
5 x 1/2" impact sockets (17 - 19 - 21 - 22 - 24 mm)
& 1 x extension bar 100 mm

This TOKU composite impact wrench has an excellent weigth/power ratio. The MI-17C is developed for assembly- and disassembly purposes. The Twin Hammer impactmechanism has a high energy level at each impact and thus suitable for heavy duty application. The energy is brought directly to the drive shaft for maximum power and minimal maintenance. This tool is suitable for industrial use.
Breakloose torque: 1.600 Nm.


Characteristics:
• Ergonomic design, well balanced
• Compact and lightweight
• Clutch: Twin Hammer
• Adjustable power, 3 positions





Specifications

Brand Toku
Square Drive 1/2"
Version R
Bolt capacity (mm) 16
Impact mechanism Twin-Hammer
RPM 8800
Torque (Nm) 815
Force adjustment R3 / L 2
Airconsumption (l/s) 13,3
Weight (kg) 1,84
Airconnection PT 1/4"
Airpress max. (MPa) 0,63

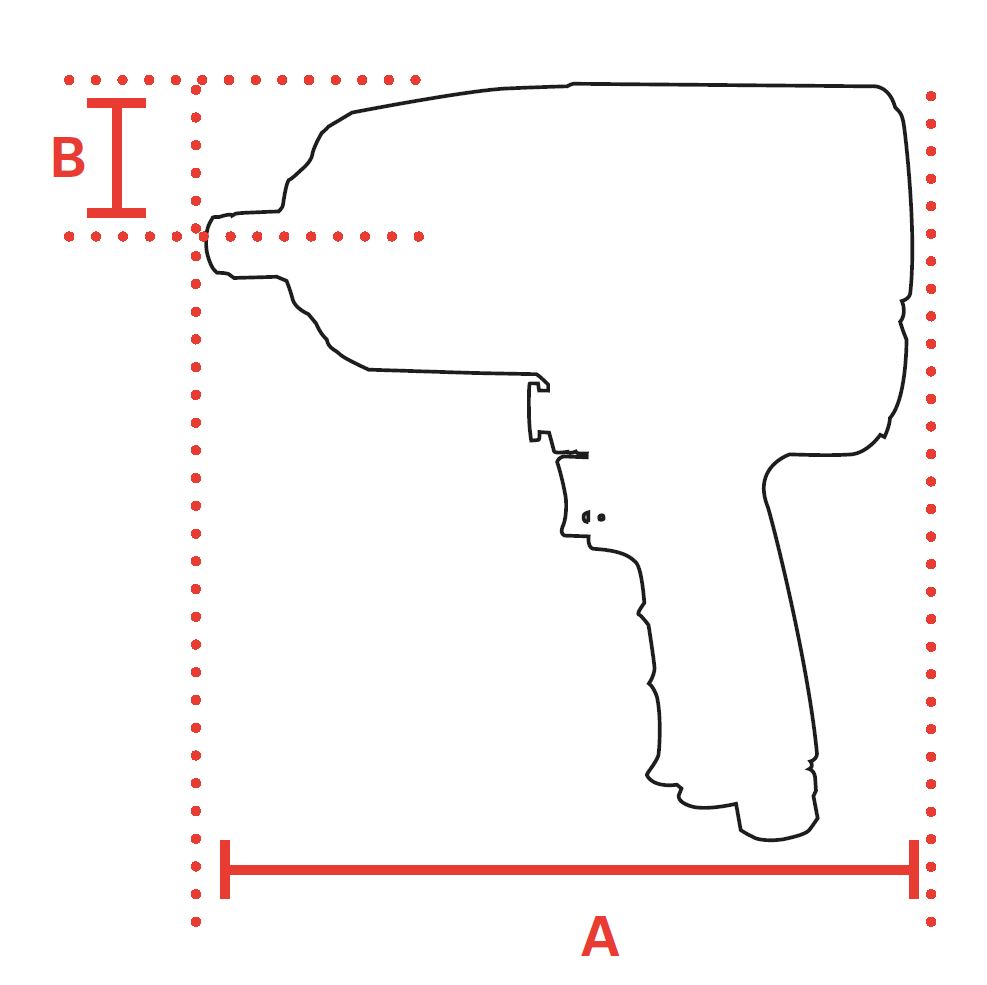

mm A 181
mm B 31
Hosediameter (mm) 10
Safety standard EN ISO 11148-6
Max. breakaway torque (Nm) 1600
Vibration standard EN ISO 28927-2
Vibration value (m/s²) 5,7
Vibration uncertainty (m/s²) 1,06
Sound standard ISO 15744
Sound pressure (dB(A)) 93
Sound power (dB(A)) 104
Sound uncertainty (dB(A)) 3
EAN 8717981379767
