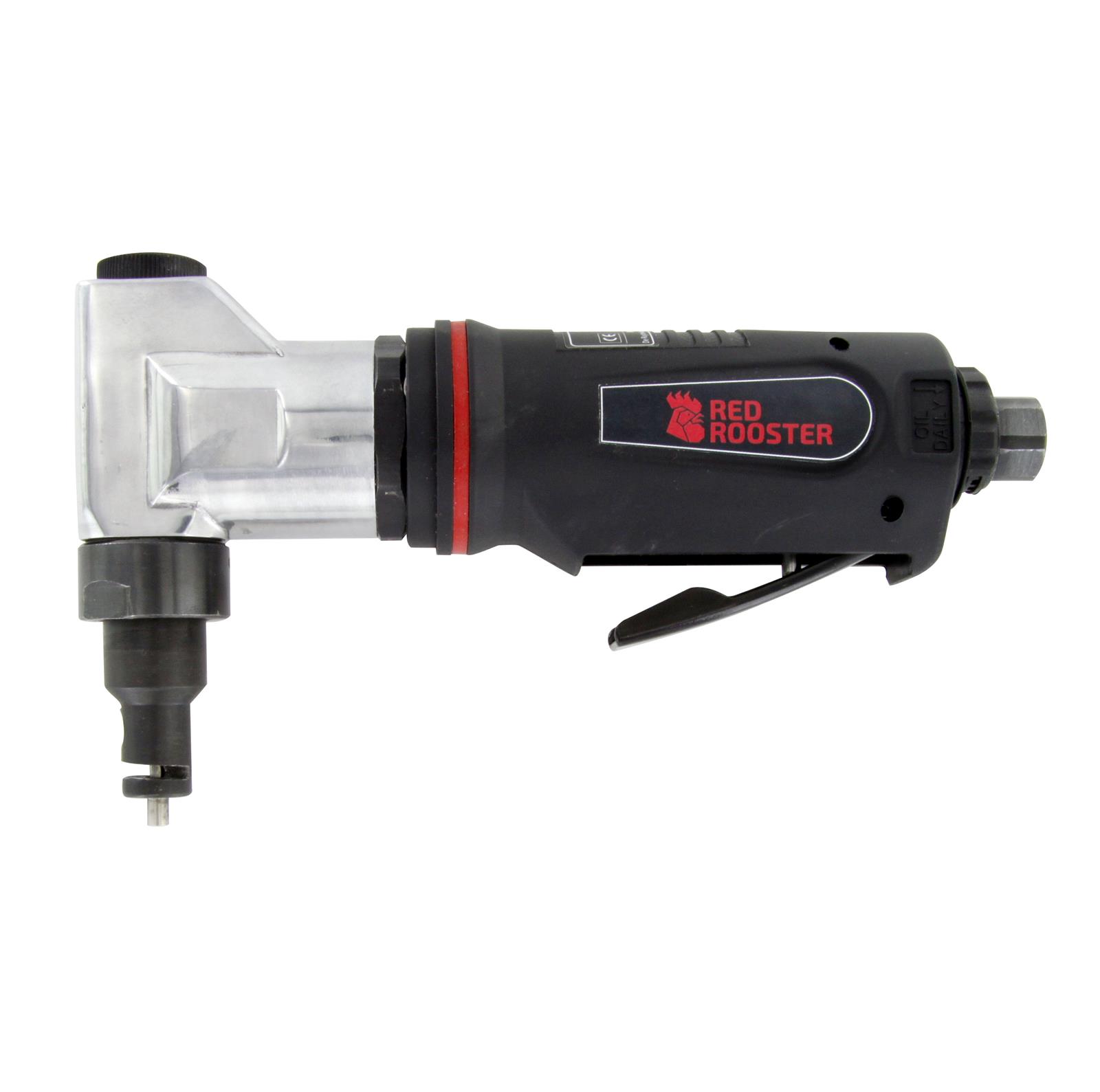

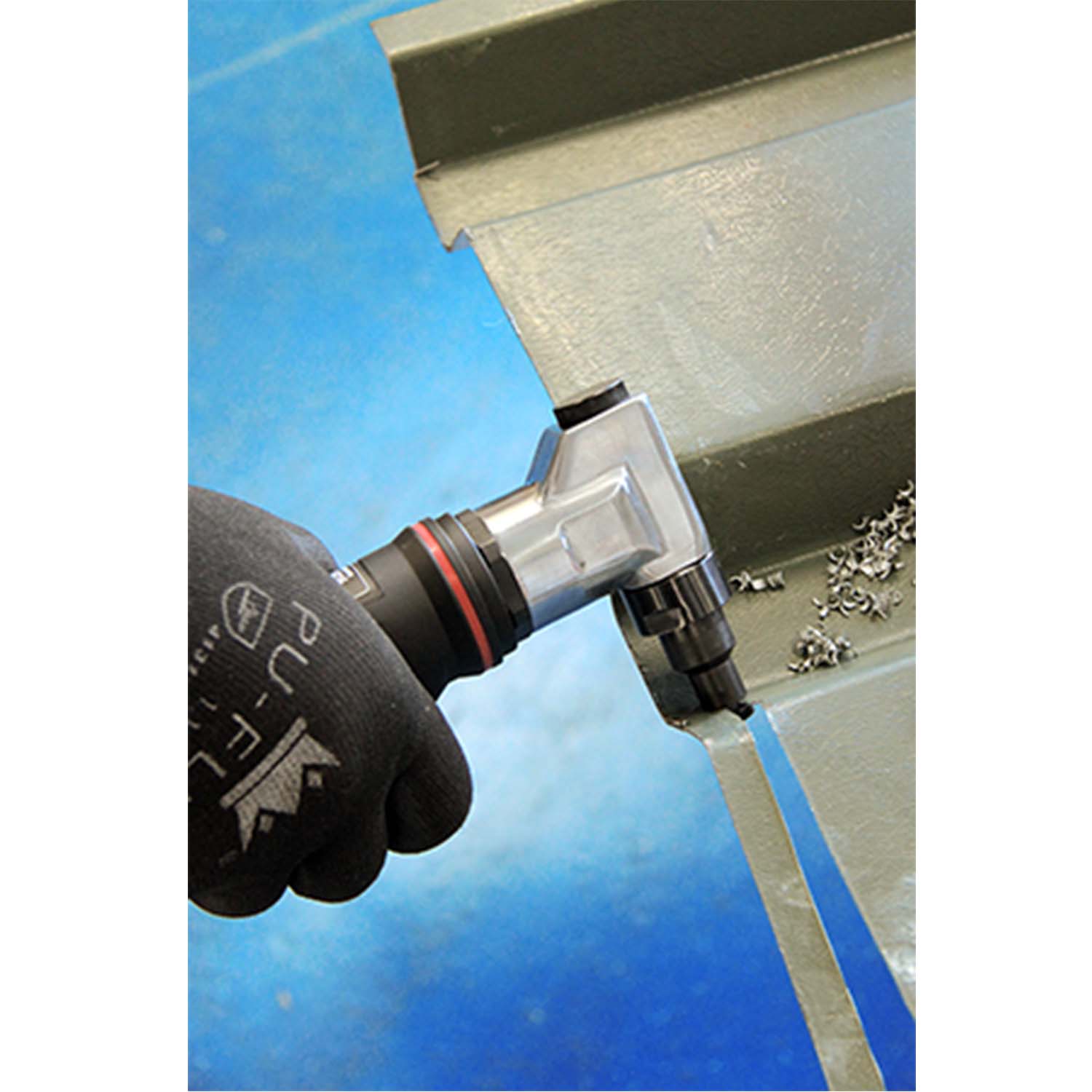

The RED ROOSTER RR-8116 nibblers are quick, easy to maneuvrer to cut circles, curves and corners in sheet metal and bodywork. Also ideal for wavy and round / convex sheet metal work. The cut sheet metal is not deformed. The head can be adjusted in four steps of ninety degrees to fit perfectly to the workpiece.
YouTubeSpecifications
| Brand | Red Rooster |
| Airconsumption (l/s) | 8 |
| Weight (kg) | 0,9 |
| Capacity aluminium (mm) | 2,0 |
| Capacity steel (mm) | 1,6 |
| Airconnection | PT 1/4" |
| Airpress max. (MPa) | 0,63 |

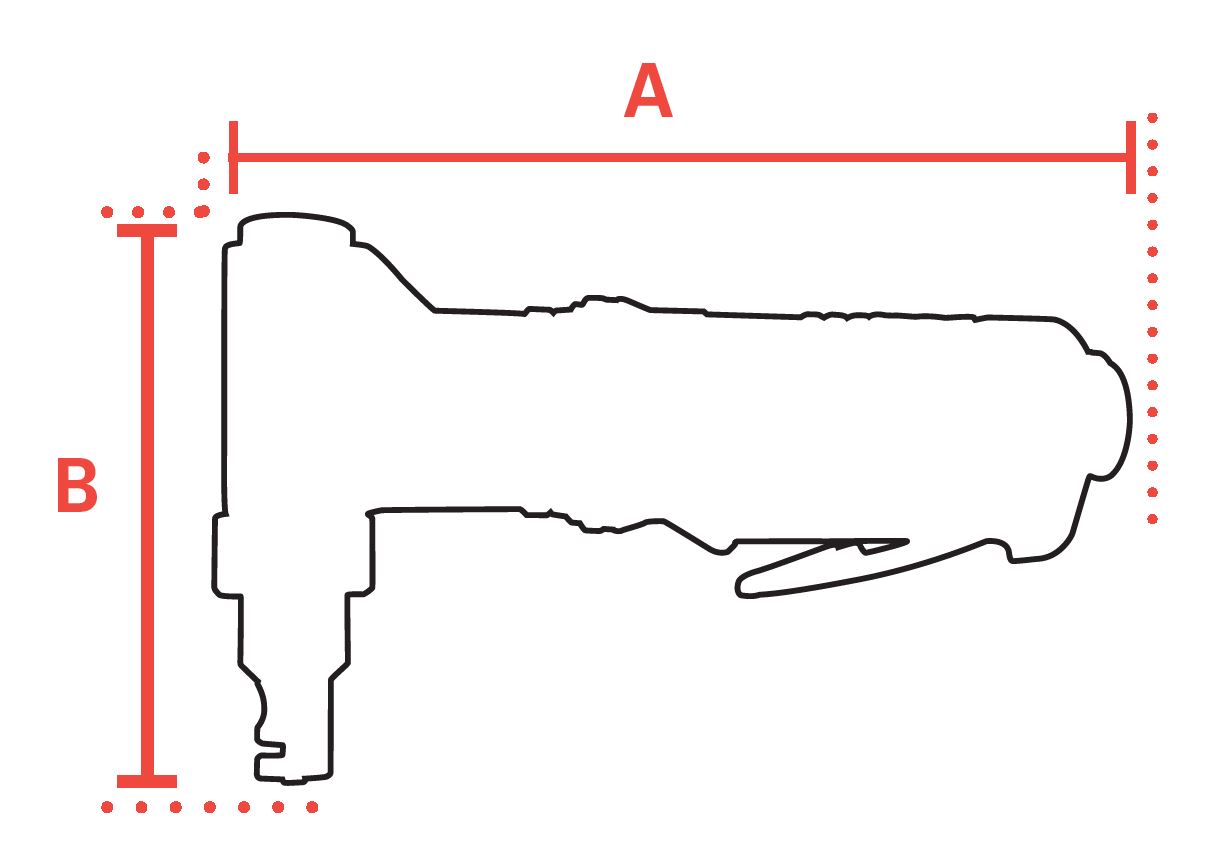

| mm A | 193 |
| mm B | 41 |
| Stroke (mm) | N/A |
| Strokes per minute | 3500 |
| Hosediameter (mm) | 10 |
| Power (kW) | 0,26 |
| Safety standard | EN ISO 11148-12 |
| Vibration standard | EN ISO 28927-7 |
| Vibration value (m/s²) | 8,73 |
| Vibration uncertainty (m/s²) | 3,33 |
| Sound standard | ISO 15744 |
| Sound pressure (dB(A)) | 86 |
| Sound power (dB(A)) | 97 |
| Sound uncertainty (dB(A)) | 3 |
| EAN | 8717981400829 |
Manuals
| RR-8116-DA.pdf | Download |
| RR-8116-FR.pdf | Download |
| RR-8116-DE.pdf | Download |
| RR-8116-EN.pdf | Download |
| RR-8116-SV.pdf | Download |
| RR-8116-PL.pdf | Download |
| RR-8116-PT.pdf | Download |
| RR-8116-NO.pdf | Download |
| RR-8116-NL.pdf | Download |
| RR-8116-ES.pdf | Download |
| RR-8116-IT.pdf | Download |
| RR-8116-FI.pdf | Download |
| RR-8116-SK.pdf | Download |
| RR-8116-EL.pdf | Download |
| RR-8116 - QR Card.pdf | Download |
