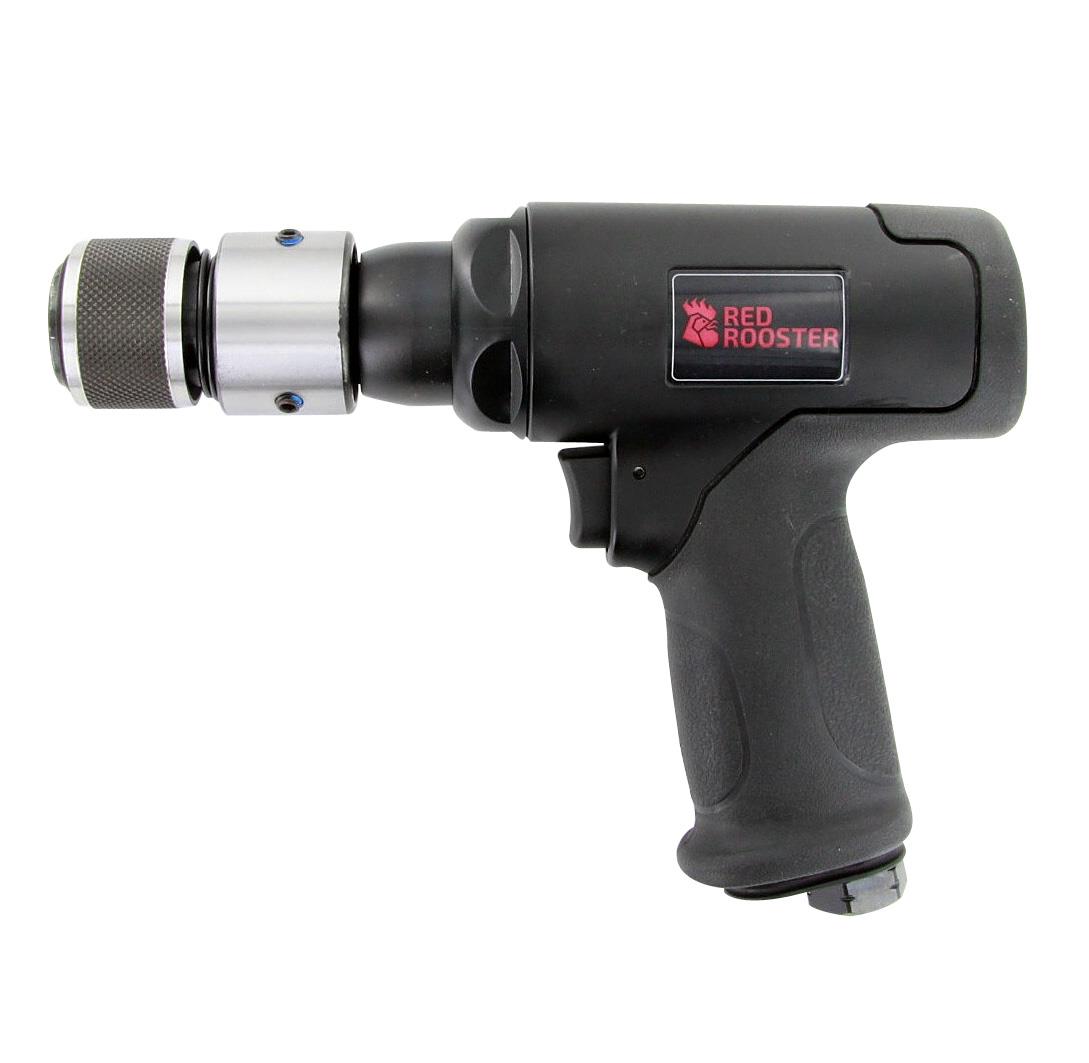

The RED ROOSTER RRH-4309K is a strong and compact chipping hammer with high efficiency. The hammer is vibration reduced, has a quick change retainer and insulated handgrip to reduce user fatique. The versatility of the hammer makes it suitable for professional use in various sectors.
Characteristics:
• Ergonomic design
• Quick change retainer
• Compact and lightweight
• Exhaust through handle
• For left and right handed use
Related products
CB51193180
Slotting Tool W.Carbide Tip L=180
RRH-4309KSET2
Air Hammer Kit Stone
CB51112180
Flat Chisel
CB51103185
45mm Wide Chisel,L=185mm
CB51103250
Flat Chisel
CB51109165
Flat Chisel
CB51112250
Flat Chisel
CB51116180
Tail Pipe Cutter
CB51123180
Claw Ripper/PannelCutter
CB51109180
Flat Chisel
RRH-4309KSET1
Air Hammer Kit Metal
CB51109250
Flat Chisel
CB51102190
Scraper, bent
CB51115250
Moil Point
CB51109350
Flat Chisel L=350 W=20mm
CB51115180
Moil point chisel
CB51114180
Double Bladepanelcutter
CB51117180
Spotweld Breaker
CB51104190
Wide Cuttingchisbent
Related accessories
TJI-202C
Chisel Holder incl O-ring
Specifications
| Brand | Red Rooster |
| Airconsumption (l/s) | 7,1 |
| Weight (kg) | 1,7 |
| Shank size (mm) | H^11,0 x R^12,7 x 40 |
| Airconnection | PT 1/4" |
| Airpress max. (MPa) | 0,63 |
| mm A | 223 |
| mm B | 173 |
| Stroke (mm) | 67 |
| Strokes per minute | 3200 |
| Energy (J/Stroke) | 9,0 |
| Hosediameter (mm) | 10 |
| Piston (mm) | 19 |
| Safety standard | EN ISO 11148-4 |
| Vibration standard | EN ISO 28927-2 |
| Vibration value (m/s²) | 2,2 |
| Vibration uncertainty (m/s²) | 0,71 |
| Sound standard | ISO 15744 |
| Sound pressure (dB(A)) | 90,3 |
| Sound power (dB(A)) | 101,3 |
| Sound uncertainty (dB(A)) | 3 |
| EAN | 8717981362936 |
Manuals
| RRH-4309K-EN.pdf | Download |
| RRH-4309K-FR.pdf | Download |
| RRH-4309K-NL.pdf | Download |
| RRH-4309K-DE.pdf | Download |
| RRH-4309K - QR Card.pdf | Download |
