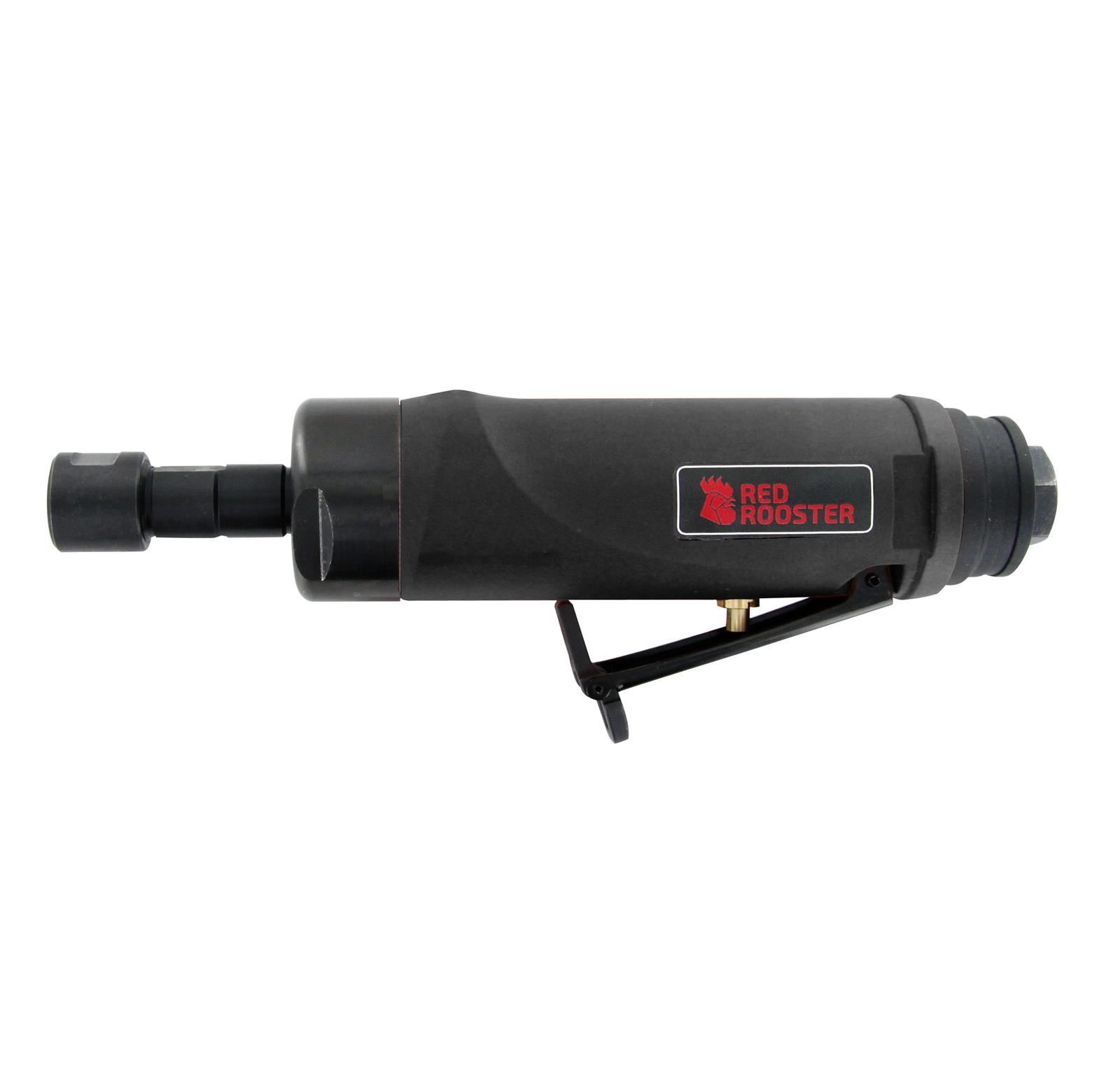

RED ROOSTER die grinders are extremely suitable for de-burring applications as well as weld seam finishing and general die grinding applications.
Characteristics:
* The RRG range of die grinders are developed for enhanced productivity.
* The rubber cover allows the hand to grip the tool firmly due to the unique ergonomic design.
* The grinders have an adjustable rear exhaust.
* Air inlet with a swivel allowing the tool to be very flexible, especially in difficult access areas.
* When depressed fully the safety lever lays flat against the tool adding extra comfort for the
operator.
Related products
AC30A-F03E-B
Modular FRL Unit
Related accessories
ATLUB
Air Tool Oil, 1 litre
Specifications
| Brand | Red Rooster |
| RPM | 15000 |
| Airconsumption (l/s) | 17,0 |
| Weight (kg) | 0,74 |
| Airconnection | PT 1/4" |
| Airpress max. (MPa) | 0,63 |

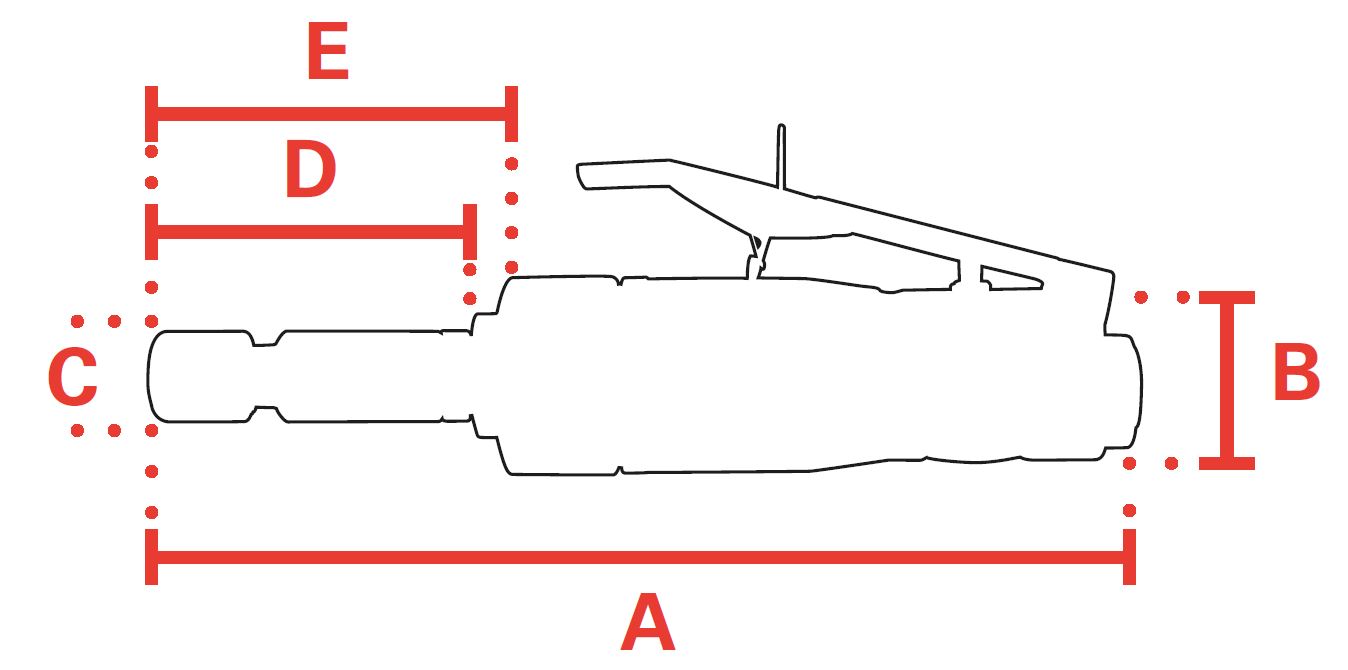

| mm A | 200 |
| mm B | 43 |
| mm C | 21 |
| mm D | 50 |
| Hosediameter (mm) | 10,0 |
| Collet chuck (mm) | 6 |
| Power (kW) | 0,52 |
| Wheel size (mm) | 50 |
| Safety standard | EN ISO 11148-7 |
| Vibration standard | EN ISO 28927-12 |
| Vibration value (m/s²) | 1,7 |
| Vibration uncertainty (m/s²) | 0,84 |
| Sound standard | ISO 15744 |
| Sound pressure (dB(A)) | 80 |
| Sound power (dB(A)) | 91 |
| Sound uncertainty (dB(A)) | 3 |
| EAN | 8717981370214 |
