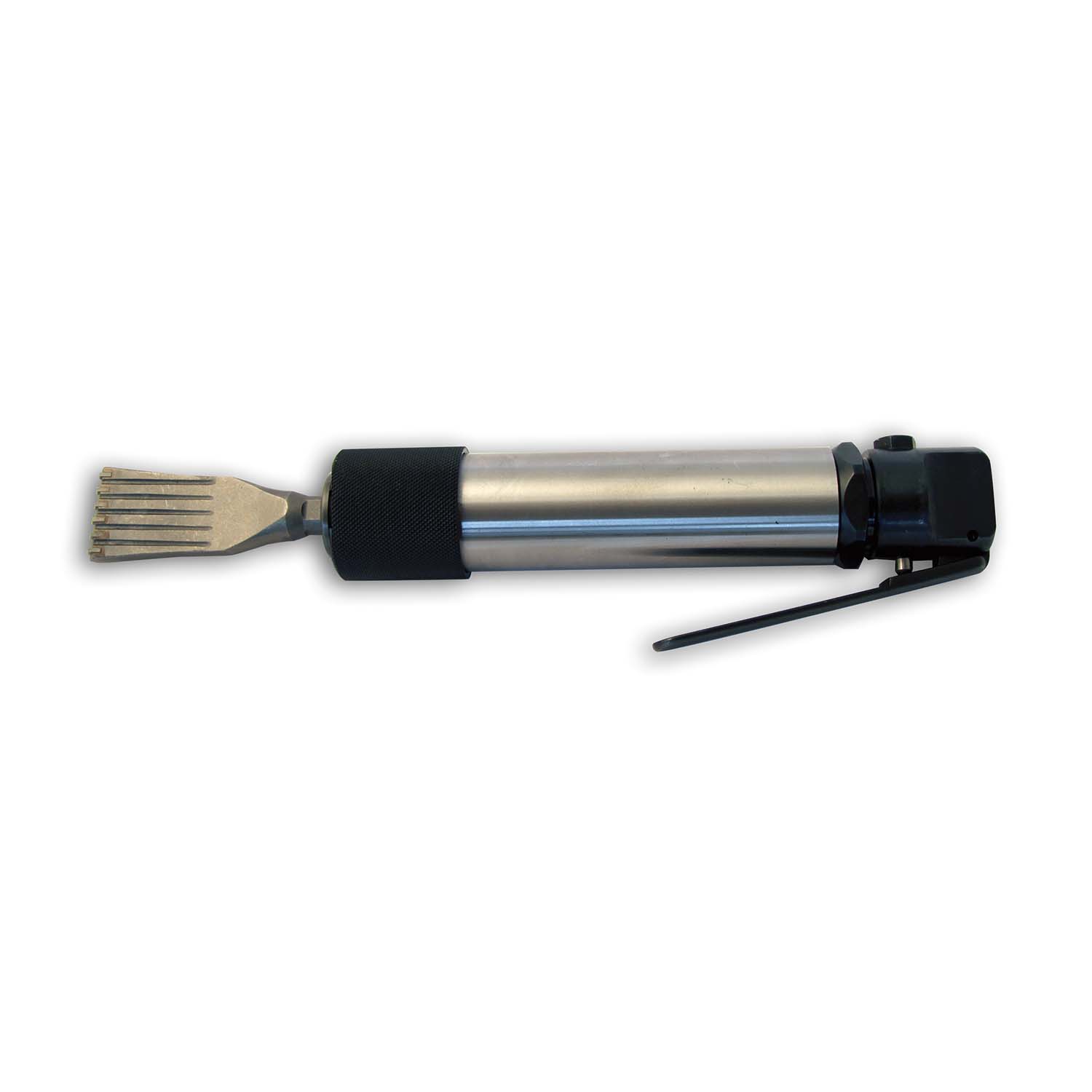

The TFC-257H is by its long stroke and high energy level ultimately usefull for picking of joints, but can also be used for chipping of welding seams and light diecast working.
Characteristics:
* Pull-to-release chisel retainer
* High energy level per blow
* High life-expectancy
* Straight model
Related products
CBMCOIR180-6
Carbide Mortar Chisel
CB383-12
Wide Chisel TL=300 W=35
CBMCOIR180-4
Carbide Mortar Chisel
CBMCOIR180
Carbide Mortar Chisel
Specifications
| Brand | Toku |
| Airconsumption (l/s) | 6,7 |
| Weight (kg) | 2,0 |
| Shank size (mm) | V^12,7 |
| Airconnection | PT 1/4" |
| Airpress max. (MPa) | 0,63 |

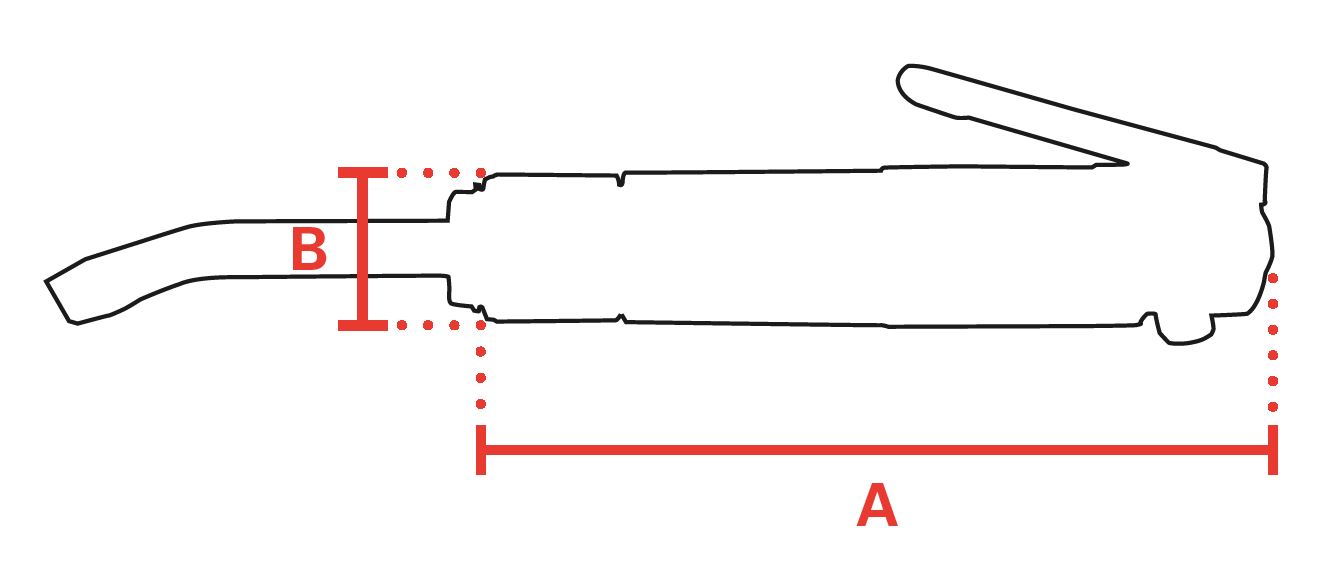

| mm A | 330 |
| mm B | 43 |
| Stroke (mm) | 34 |
| Strokes per minute | 4000 |
| Energy (J/Stroke) | 7,9 |
| Hosediameter (mm) | 10 |
| Piston (mm) | 25 |
| Safety standard | EN ISO 11148-4 |
| Vibration standard | EN ISO 28927-9 |
| Vibration value (m/s²) | 22,3 |
| Vibration uncertainty (m/s²) | 1,50 |
| Sound standard | ISO 15744 |
| Sound pressure (dB(A)) | 100 |
| Sound power (dB(A)) | 111 |
| Sound uncertainty (dB(A)) | 3 |
| EAN | 8717981189489 |
Manuals
| TFC-257H-EN.pdf | Download |
| TFC-257H-DE.pdf | Download |
| TFC-257H-FR.pdf | Download |
| TFC-257H-NL.pdf | Download |
| TFC-257H - QR Card.pdf | Download |
