Toku hammers have been used for many years in various industries, e.g Demolition, Foundries, Construction etc.
Characteristics:
* Toku only use the very best materials in the manufacture of their products giving the tools superior life.
* Due to popular demand we have included a version of this tool to our range with a solid retainer.
* The design of the solid retainer enables the use of pointed chisels as well as standard and wide.

Related products

CB5-G

Wide Chisel bend TL=250 W=60

CB5

Wide Chisel TL=300 B=60

MP5-350

Moil Point TL= 400mm

MP5

Moil Point TL= 325mm

NC5-450

Flat Chisel TL=500 W=22

MP5-450

Moil Point TL= 500mm

NC5-350

Flat Chisel TL=400 W=22

NC5

Flat Chisel TL=325 W=22





Specifications

Brand Toku
Airconsumption (l/s) 14,2
Weight (kg) 6,8
Shank size (mm) H^19 x 50
Airconnection PT 3/8"
Airpress max. (MPa) 0,63

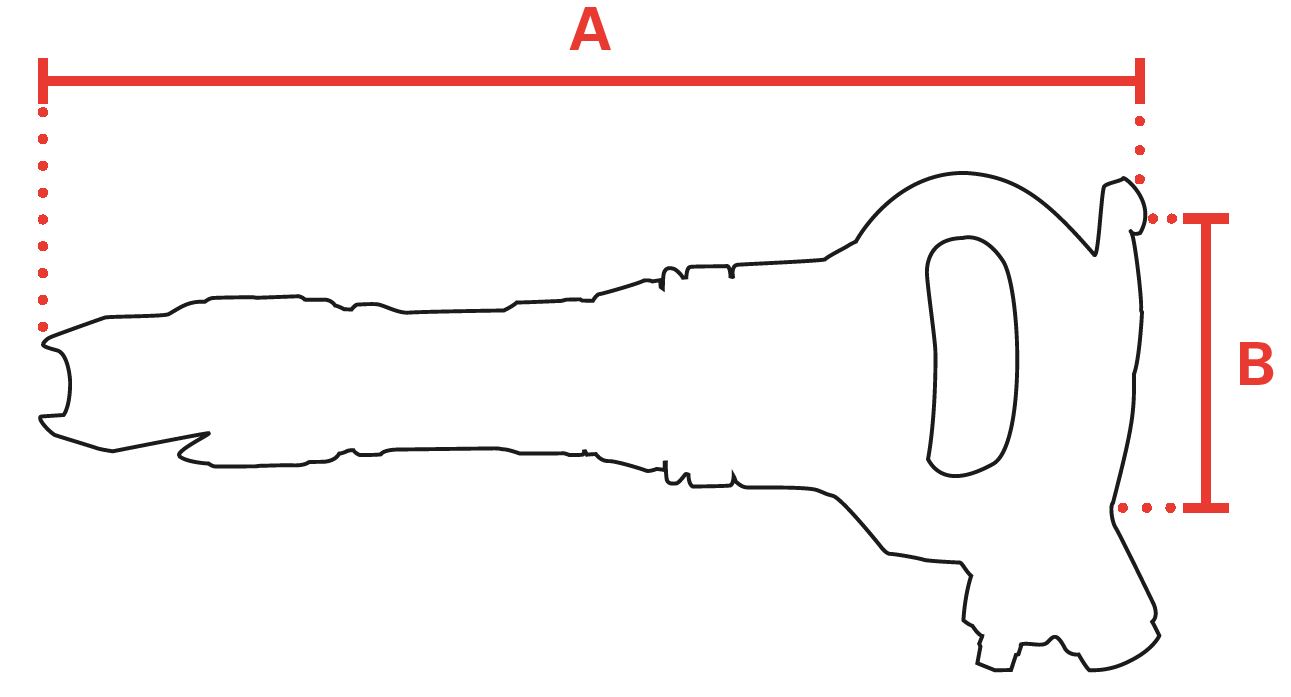

mm A 350
mm B 87
Stroke (mm) 51
Strokes per minute 2300
Energy (J/Stroke) 15,7
Hosediameter (mm) 13
Piston (mm) 28,5
Safety standard EN ISO 11148-4
Vibration standard EN ISO 28927-10
Vibration value (m/s²) 26,3
Vibration uncertainty (m/s²) 2,40
Sound standard ISO 15744
Sound pressure (dB(A)) 109
Sound power (dB(A)) 120
Sound uncertainty (dB(A)) 3
EAN 8717981214181
