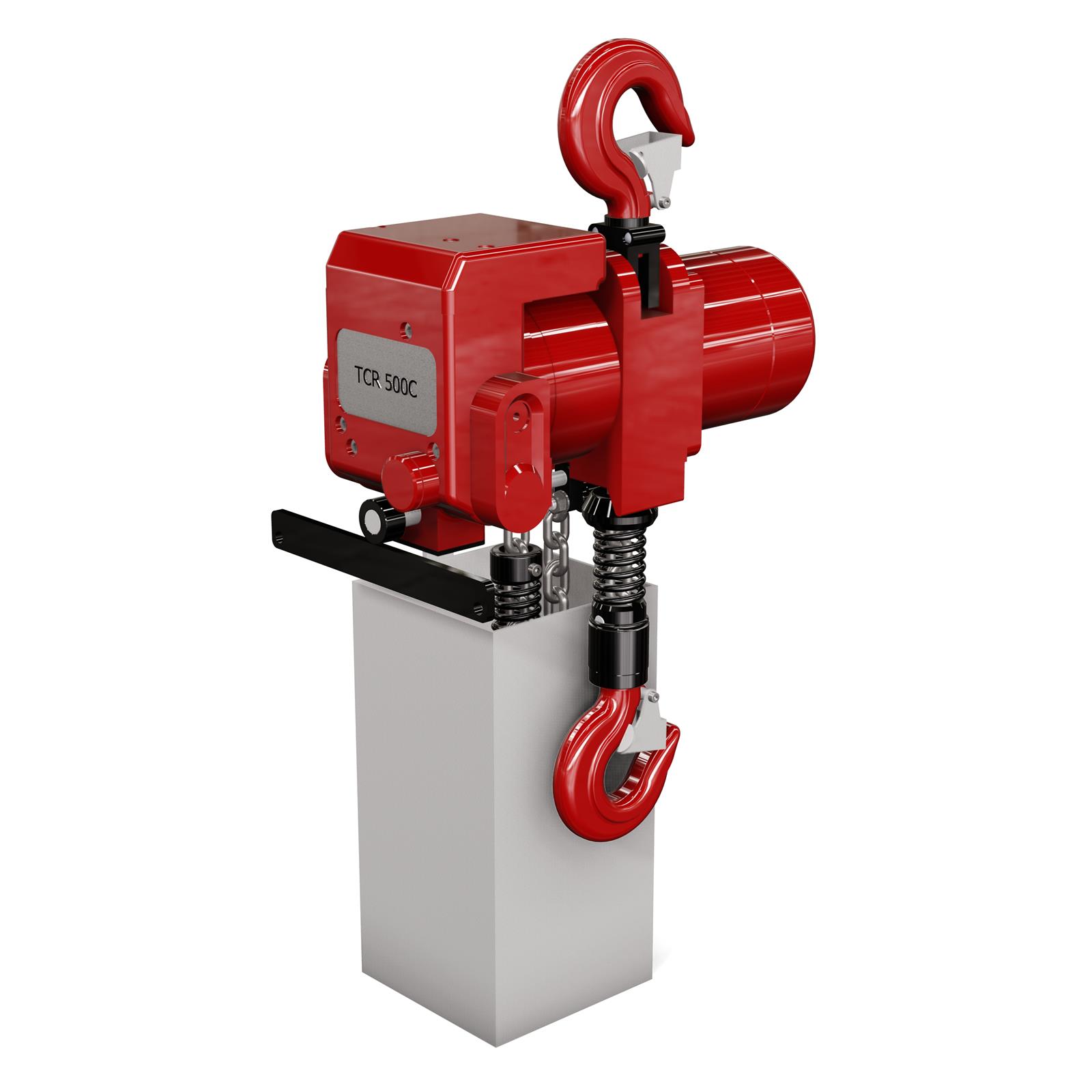

These RED ROOSTER Air Chain Hoists are especially developed for heavy industrial use.
Robust cast steel body. Valveblock same for all models, less spare parts. Standard with load limiter.
Characteristics:
o Precise variable speed control
o Optimum control of the load, very precise positioning
o Compact design
o Endstop system
o Load limiter built-in without loss of headroom
o Push button control
o Quiet, low noise level, silenced
o Air pressure 0,4 - 0,63 MPa (4 - 6,3 Bar)
Related products
AC40-F04DM-8-B
Modular FRL Unit
6,3X19,1RS60
Chain RSA60 DIN 5684-6
42-02-28-VRD
Pendant Valve Assy TCR/TMH
6,3X19,1RTS
Chain RTS EN 818-7
Specifications
Brand | Red Rooster |
Number of chain falls | 1 |
Lowering speed full load (m/min) | 17,9 |
Lowering speed 0-load (m/min) | 13 |
Weight incl. 3m lift (kg) | 31 |
Lifting speed full load (m/min) | 10,5 |
Lifting speed 0-load (m/min) | 20,5 |
Chain weight (kg/m) | 0,8 |
Chain (mm) | 6,3 x 19,1 |
Chainbag/Chainbucket | + |
Loadlimiter | + |
Airconnection | 1/2" BSPT |
Airpress max. (MPa) | 0,63 |

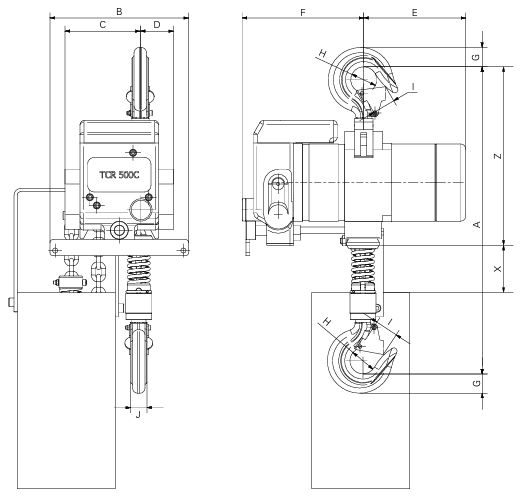

mm A | 460 |
mm B | 212 |
mm C | 115 |
mm D | 51 |
mm E | 156 |
mm F | 186 |
mm G | 29 |
mm H | 40 |
mm I | 29 |
mm J | 25 |
mm X | 100 |
mm Z | 250 |
Hosediameter (mm) | 13 |
SMC Airtreatment unit | AC40-F04DM-8B |
Capacity (kg) | 500 |
Air consumption lifting (l/s) | 25 |
Air consumption lowering (l/s) | 27 |
EAN | 8717981103744 |
