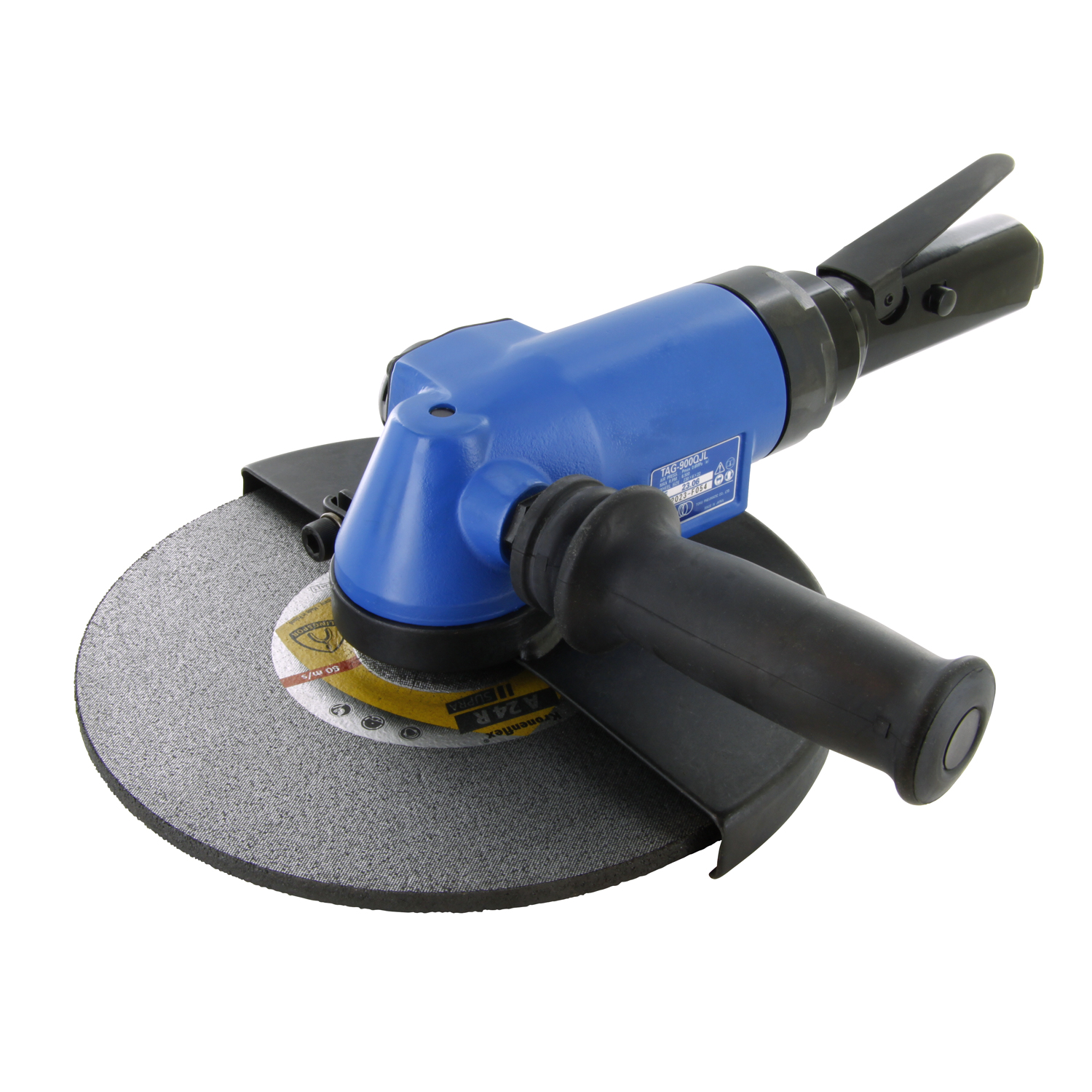

This angled grinder by Toku is used for grinding and cutting. The dead-handle is vibration reduced. The grinder has an integrated speed-setting regulator for maximum safety and optimal speed for best material removal.
Characteristics:
* Ergonomic design, well balanced
* Compact and lightweight
* For cutting and grinding purposes
* Exhaust silenced
* Low vibrationlevel
Related products
AC30A-F03E-B
Modular FRL Unit
Related accessories
2400-046-11
Dead Handle Vibration Red.
2700-041-00
Set Screw
2700-040-00
Wheel Ring
9610-1010-00-00
Hex Wrench H10
ATLUB
Air Tool Oil, 1 litre
8081-0022-00-00
Spanner TAG-700QJL / TAG-900QJL
Specifications
| Brand | Toku |
| RPM | 6500 |
| Airconsumption (l/s) | 16,6 |
| Weight (kg) | 3,1 |
| Airconnection | PT 3/8" |
| Airpress max. (MPa) | 0,63 |

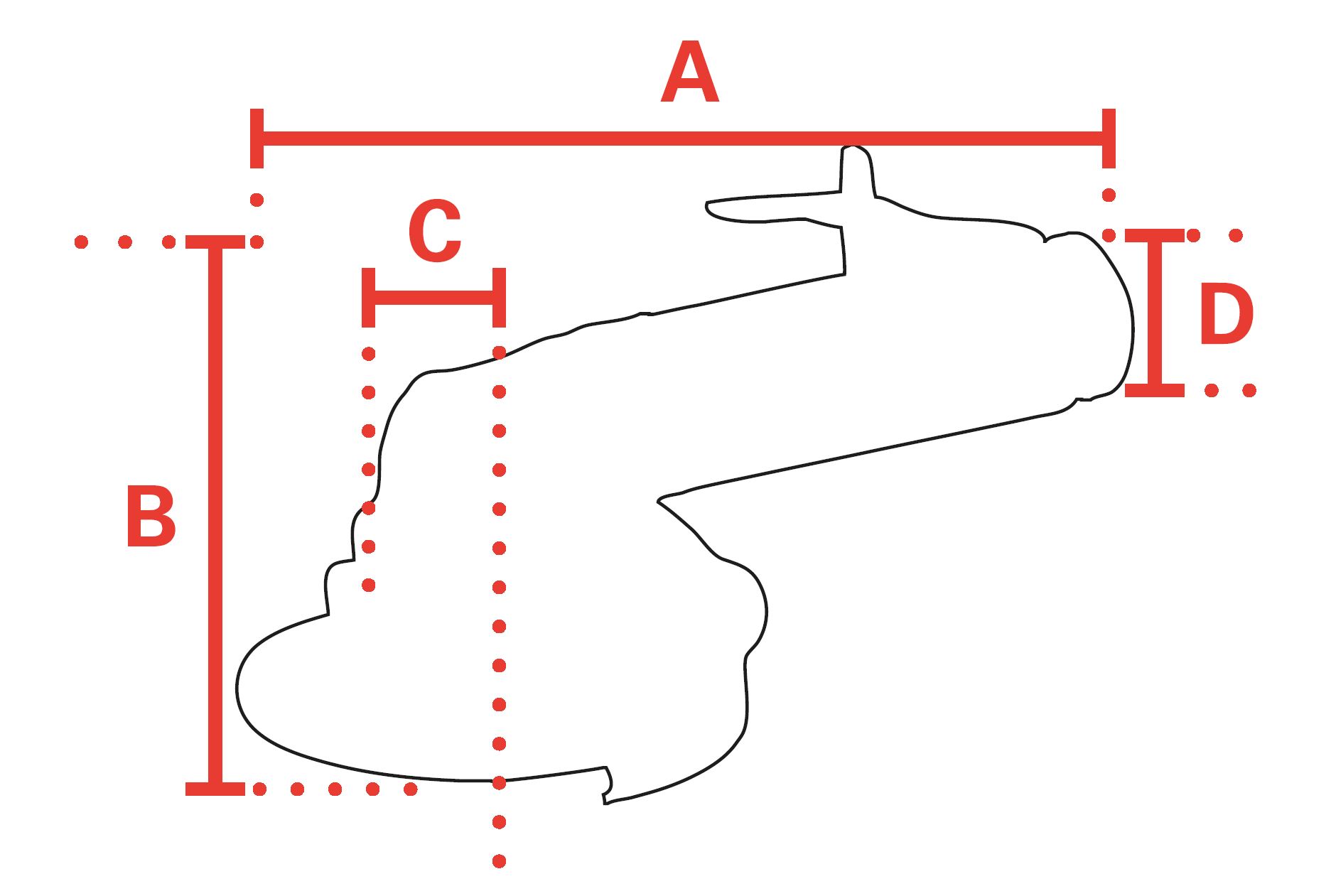

| mm A | 307 |
| mm B | 103 |
| mm C | 36 |
| mm D | 62 |
| Hosediameter (mm) | 13 |
| Spindle | Toku System |
| Power (kW) | 1,10 |
| Wheel size (mm) | 230 x (1,9 - 8) x 22,2 |
| Safety standard | EN ISO 11148-7 |
| Vibration standard | EN ISO 28927-1 |
| Vibration value (m/s²) | 7,9 |
| Vibration uncertainty (m/s²) | 2,61 |
| Sound standard | ISO 15744 |
| Sound pressure (dB(A)) | 87 |
| Sound power (dB(A)) | 98 |
| Sound uncertainty (dB(A)) | 3 |
| EAN | 8717981047635 |
