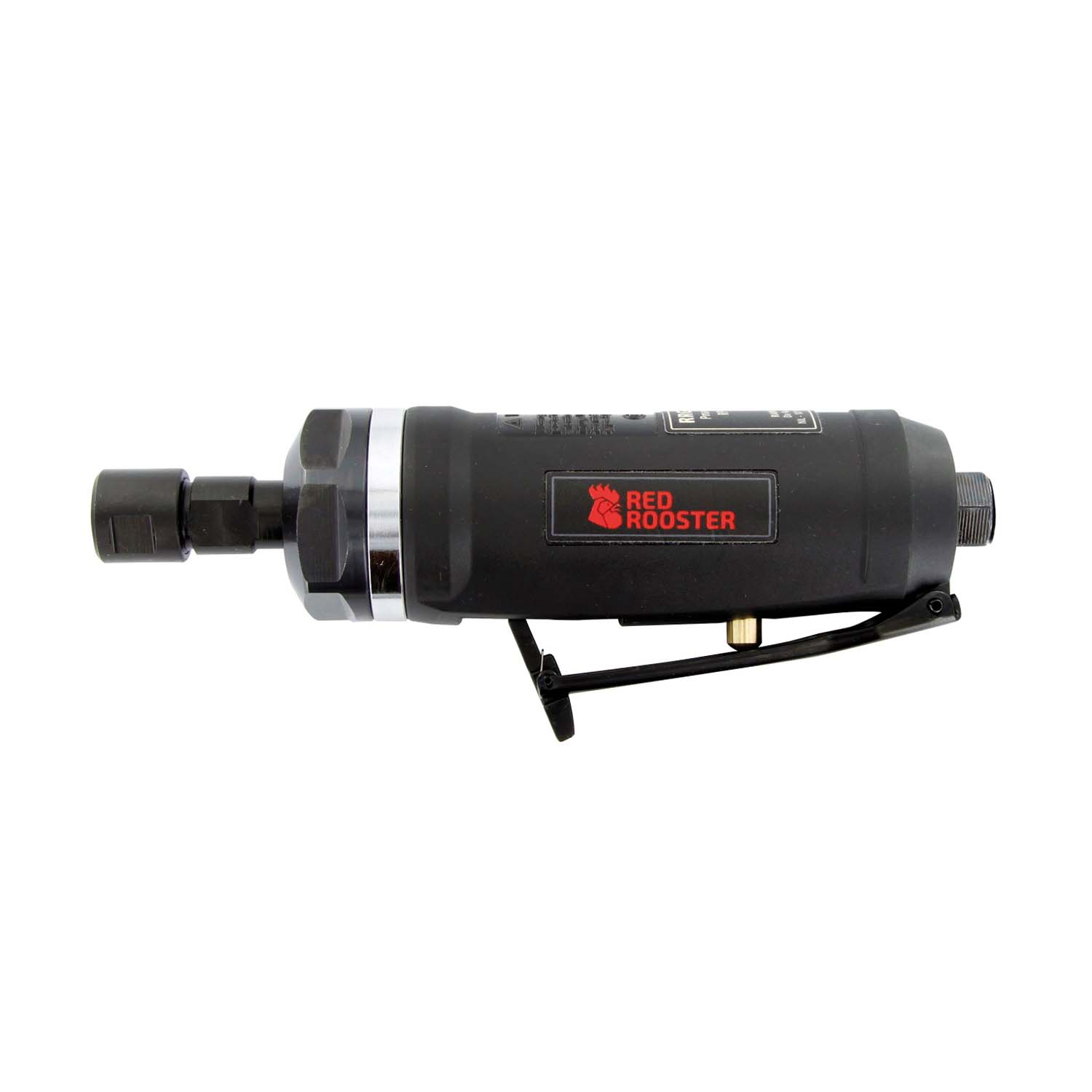

RED ROOSTER die grinders are extremely suitable for de-burring applications as well as weld seam finishing and general die grinding applications.
Characteristics:
* The RRG range of die grinders are developed for enhanced productivity.
* The composite motor housing allows the hand to grip the tool firmly due to the unique ergonomic design.
* The grinders have a rear exhaust.
* Air inlet with a swivel allowing the tool to be very flexible, especially in difficult access areas.
* When depressed fully the safety lever lays flat against the tool adding extra comfort for the operator.
Related products
AC30A-F03E-B
Modular FRL Unit
Related accessories
50-500228-18
Collet 8mm RRG-1000RE(L)
50-500228
Collet 6mm RRG-1000RE(L)
50-500228-13
Collet 3mm RRG-1000RE(L)
Specifications
| Brand | Red Rooster |
| RPM | 22.000 |
| Airconsumption (l/s) | 11 |
| Weight (kg) | 0,8 |
| Airconnection | PT 1/4" |
| Airpress max. (MPa) | 0,63 |

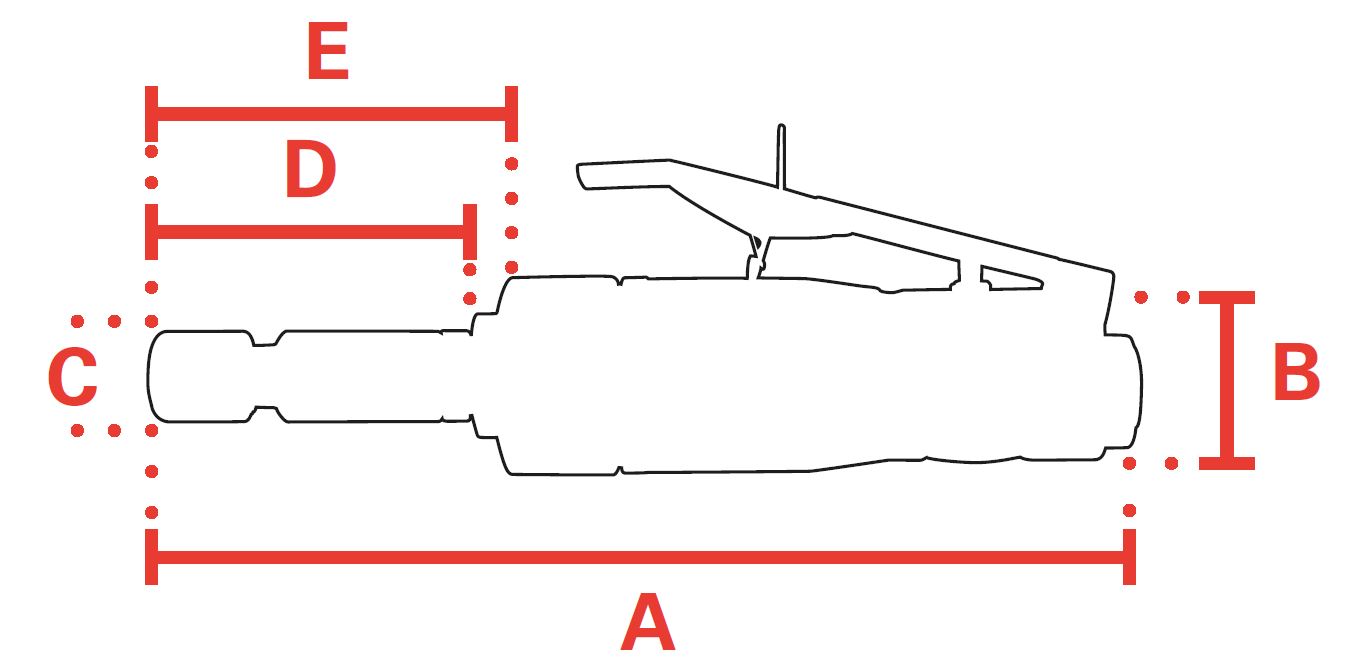

| mm A | 190 |
| mm B | 45 |
| mm C | 22 |
| mm D | 30 |
| mm E | 50 |
| Hosediameter (mm) | 10 |
| Collet chuck (mm) | 6 |
| Power (kW) | 0,74 |
| Wheel size (mm) | 35 |
| Safety standard | EN ISO 11148-7 |
| Vibration standard | EN ISO 28927-12 |
| Vibration value (m/s²) | 2,71 |
| Vibration uncertainty (m/s²) | 0,76 |
| Sound standard | ISO 15744 |
| Sound pressure (dB(A)) | 89 |
| Sound power (dB(A)) | 100 |
| Sound uncertainty (dB(A)) | 3 |
| EAN | 8717981346059 |
