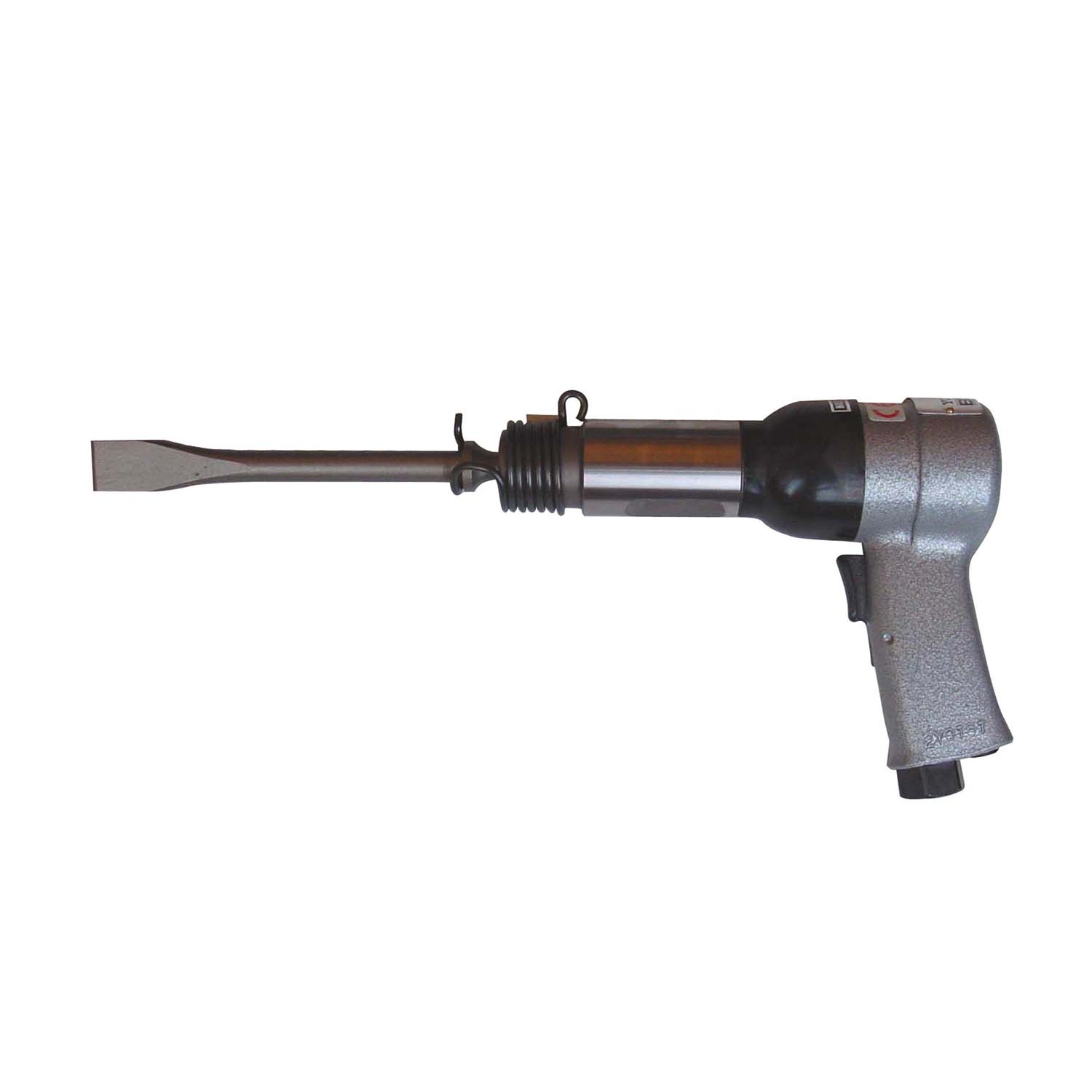

This Yokota chipping hammer is supplied with open and closed spring retainer for the chisel. High blow-energy. For practical use in construction, building and automotive aftermarket. Industrial quality.
Characteristics:
* Ergonomic design, well balanced.
* Compact and lightweight.
* Suits both left-and right-handers.
Delivery includes rivet snap D6mm 6101-0821-00-04
Related products
Related accessories
6101-0822-00-01
Snap Buffer Closed BRH-6
PT-2311
Heavy Duty Retainer
6101-0822-00-03
Snap Buffer Open BRH-6
Specifications
| Brand | Yokota |
| Airconsumption (l/s) | 6,6 |
| Weight (kg) | 1,4 |
| Sound level (dB(A)) | 95 |
| Shank size (mm) | R^10,2 x 40 |
| Airconnection | PT 1/4" |
| Airpress max. (MPa) | 0,63 |
| mm A | 200 |
| mm B | 149 |
| Stroke (mm) | 60 |
| Strokes per minute | 3500 |
| Energy (J/Stroke) | 9,0 |
| Hosediameter (mm) | 10 |
| Vibration level (m/s²) | 17 |
| Piston (mm) | 20 |
| Safety standard | EN ISO 11148-4 |
| EAN | 8717981040858 |
Manuals
| BRH-6-EN.pdf | Download |
| BRH-6-NL.pdf | Download |
| BRH-6-FR.pdf | Download |
| BRH-6-DE.pdf | Download |
| BRH-6 - QR Card.pdf | Download |
