Toku hammers have been used for many years in various industries, e.g Demolition, Foundries, Construction etc.
Characteristics:
• Toku only use the very best materials in the manufacture of their products giving the tools superior life.
• Version with a solid screw-retainer.
• The design of the solid retainer enables the use of pointed chisels as well as standard and wide.
Related products
Specifications
| Brand | Toku |
| Airconsumption (l/s) | 7,5 |
| Weight (kg) | 4,5 |
| Shank size (mm) | H^19 x 50 |
| Airconnection | PT 3/8" |
| Airpress max. (MPa) | 0,63 |

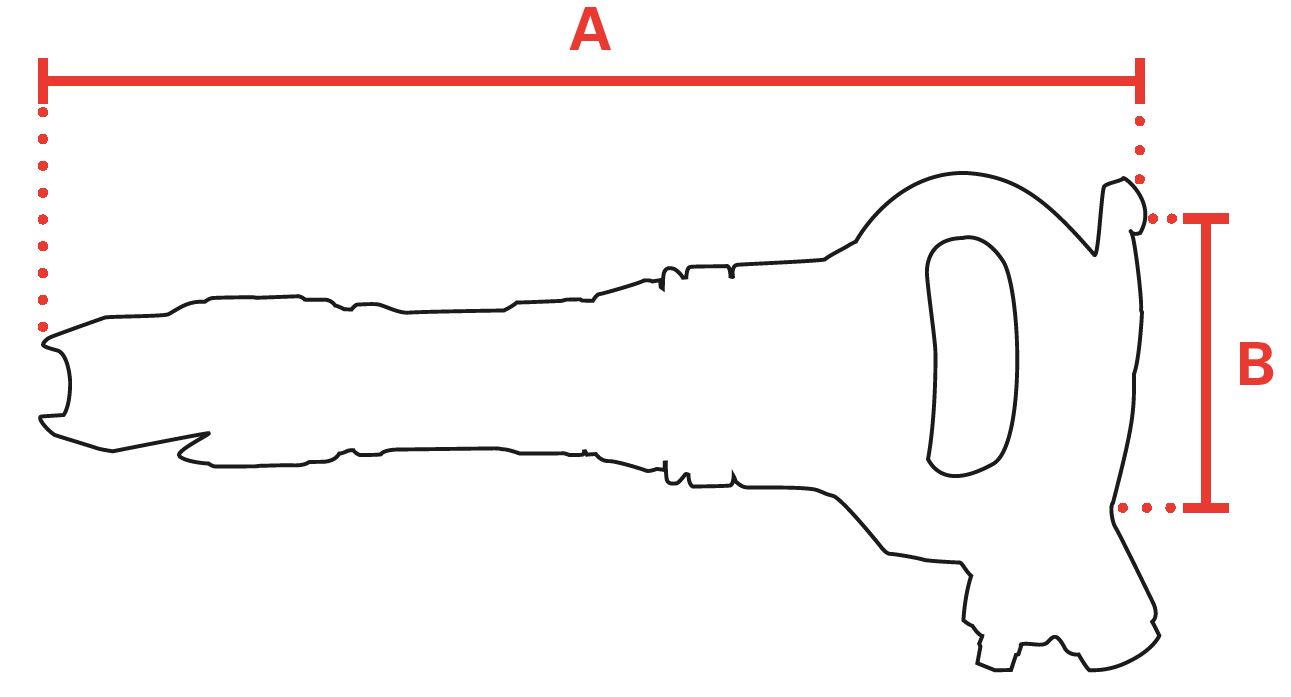

| mm A | 300 |
| mm B | 76 |
| Stroke (mm) | 58 |
| Strokes per minute | 2800 |
| Energy (J/Stroke) | 12,7 |
| Hosediameter (mm) | 10 |
| Piston (mm) | 24 |
| Safety standard | EN ISO 11148-4 |
| Vibration standard | EN ISO 28927-10 |
| Vibration value (m/s²) | 23,5 |
| Vibration uncertainty (m/s²) | 2,60 |
| Sound pressure (dB(A)) | 108 |
| Sound power (dB(A)) | 119 |
| Sound uncertainty (dB(A)) | 3 |
| EAN | 8717981182398 |
Manuals
| AA-1.3BR(H)19X50-EN.pdf | Download |
| AA-1.3BR(H)19X50-DE.pdf | Download |
| AA-1.3BR(H)19X50-NL.pdf | Download |
| AA-1.3BR(H)19X50-FR.pdf | Download |
| AA-1.3BR(H)19X50 - QR Card.pdf | Download |
